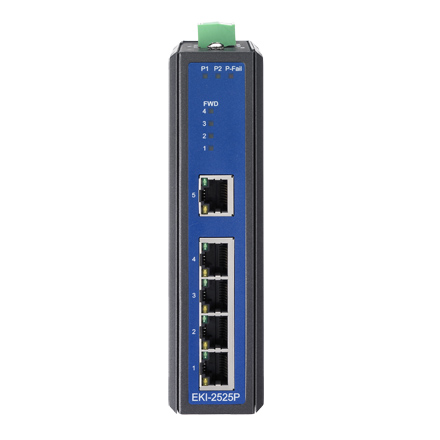

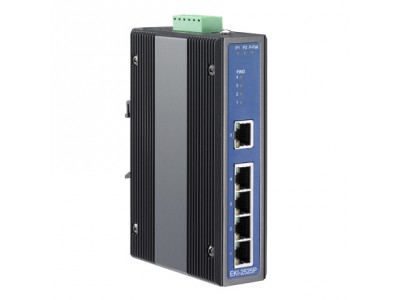

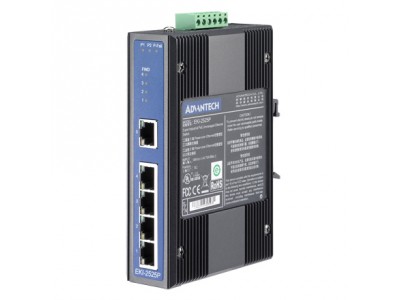

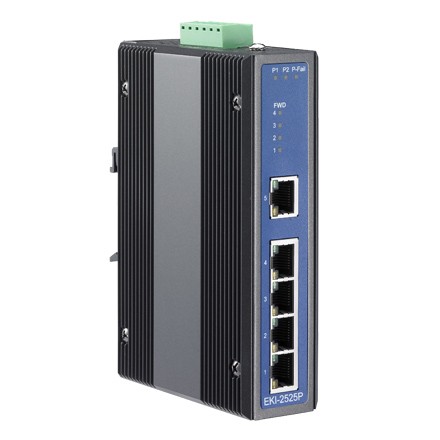

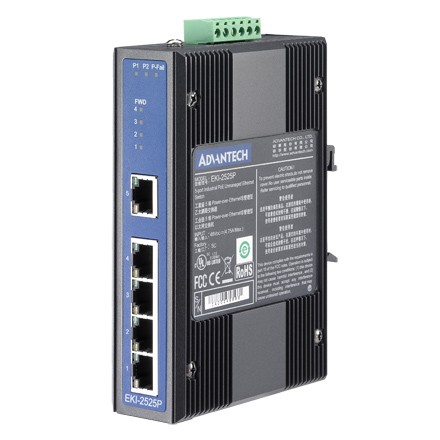

5-port Industrial PoE Switch (EKI-2525P-BE)
by Advantech
•Part #: EKI-2525P-BE
View Detailed Description
$295.00
The EKI-2525P is a 5-port unmanaged PoE (Power-over-Ethernet) Industrial Ethernet switch and EKI-2526PI is a 6-port unmanaged PoE Industrial Ethernet switch, they support 4 PoE ports which are classified as power source equipments (PSE). The PoE devoces makes centralized power supply come true and provides up to 15.4 watts of power per port. Advantech EKI PoE devices can be used to power IEEE 802.3af compliant powered devices (PD) by Ethernet cable and eliminates the need for additional power wiring. Advantech EKI PoE devices come equipped with all the standard features of the EKI family. Furthermore, it offers a 48 VDC redundant power input design (EKI-2525P/EKI-2526PI), and is secured with a double protection mechanism; Power Polarity Reverse Protect and an Overload Current Resettable Fuse. Advantech EKI PoE devices come with compact metal housing that rates IP30 to help against from dusty industrial environments.
- Provides 5 Fast Ethernet ports with 4 PoE ports with injector function
- Supports 10/100Mbps Auto Negotiation
- Provides broadcast storm protection
- Supports Ethernet ESD protection
- Provides Slim size, DIN-rail/Wallmount with IP30 metal mechanism
- Supports Redundant 48 VDC power input and P-Fail relay
- Supports operating temperatures from -10 ~ 60° C
| General | Ethernet Connectors | PoE (10/100Mbps) x 4 + 10/100 Ethernet x 1 |
| Mounting | DIN-rail, Panel | |
| I/O | Transmission Distance | Ethernet: up to 100 m |
| Transmission Speed | 10/100Mbps | |
| Interface | Ports Number | 5 |
| Operating System | Temperature (Operating) | -10 ~ 60°C (14 ~ 140°F) |
| Power Supply | Power Consumption | 65 W (Full load PoE) |
| Power Input | 2 x Unregulated, 12 ~ 48 VDC (48VDC for PoE) | |
| Power Output | 15.4W at 48V |
