TSC TDP-324W (99-039A036-41LF)
TDP-324W, DT, 300DPIby TSC America
•Part #: 99-039A036-41LF
View Detailed Description
MSRP: $625.00
$553.13
Save 11%

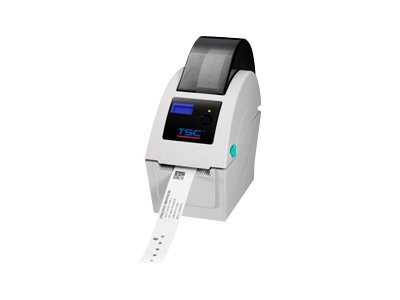

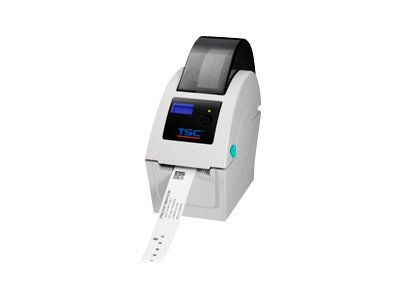

The TDP-324W 300 dpi high resolution wristband label printer is custom-designed for patient ID and entertainment ticketing. The TDP-324W series works with any available rolls of wristbands on the market, delivering both flexibility and the lowest cost solutions for your wristband printing applications. Unlike other direct thermal printers, the TDP-324W series features a compact design but can still hold a full 6.5-inch OD roll of wristbands. Order wristbands on 6.5 inch rolls, sold by major wristband manufacturers, provides the lowest cost per wristband available.
The printer features a small footprint which can stand on a desk, or be wall-mounted when desk space is at a premium. The printer features an LCD printer-status display and offers USB 2.0 and Ethernet connectivity along with a USB-host port for use with a keyboard or scanner. The TDP-324W can be optionally configured to print wristbands in the event of a computer failure by retrieving its stored wristband printing program and entering and printing patient or customer information from a PC keyboard.
Features
- Designed to hold 6.5" OD wristbands
- Front LCD display
- High quality double-walled clamshell design
- Easy media loading
- Ethernet and USB 2.0 connectivity standard
- Optional down-time keyboard interface
- Across-the-board compatibility with the most popular programming languages
- Real-time clock (an expensive option on other small-footprint units)
- USB host option
- Adjustable sensor
- "Out of the box" language emulation
- Head-up sensor and top-of-form sensing
- Flash card reader for easy font storage
- Cerner Certified and works in any hospital system
- Ethernet and USB 2.0 connectivity
What's in the Box
- TSC TDP-324W
- USB cable
- Power adapter
| Product Description | TSC TDP-324W - label printer - monochrome - direct thermal |
| Printer Type | Label printer - direct thermal - monochrome |
| Weight | 2.65 lbs |
| Max Media Size | Roll (2.05 in) |
| Min Media Size (Custom) | 0.59 in |
| Max Media Size (Custom) | 2.05 in |
| Print Speed | Up to 240.9 inch/min - max speed - Roll (2.05 in) |
| Max Resolution ( B&W ) | 300 dpi |
| Interface | USB 2.0, LAN |
| RAM Installed ( Max ) | 8 MB SDRAM |
| Flash Memory Installed (Max) | 4 MB |
| Card Reader | Yes |
| Language Simulation | ZPL , ZPL II, EPL |
| Barcodes | Code 93, Code 39, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, EAN/JAN-8 , EAN/JAN-13 , UPC-A, UPC-E, Codabar, Code 11, Interleaved 2 of 5, Postnet , PDF417, MSI-Plessey, Data Matrix, China Post, Plessey, Code 128B, Code 128C, Code 128A |
| Media Type | Labels, continuous paper labels, die cut labels, wristband labels, fanfold labels |
| Fonts | CG Triumvirate Bold Condensed |
| Styles & Effects | Rotated text |
| Features | Real time clock |
| Networking | Print server |
| Power | AC 120/230 V |
| Manufacturer Warranty | 2 years warranty |
| Dimensions (WxDxH) | 4.3 in x 10.2 in x 8.3 in |
