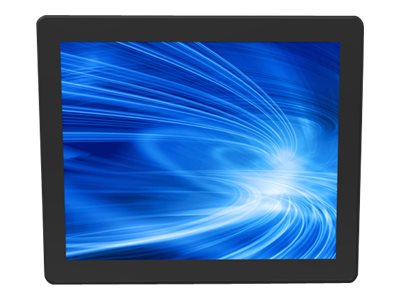

Elo Open-Frame Touchmonitors 1739L (E001126)
1739L, 17-inch LCD (LED Backlight), Open Frame, VGA & DVI video interface, Projected Capacitive, USB Touch, Clear, No power brickPart #: E001126
View Detailed Description
$552.50
Elo's 1739L 17" open-frame touchmonitor delivers a cost-effective touch solution for OEM's and systems integrators, and complements Elo's expanding family of touch solutions for applications in the retail self-service and gaming/amusement markets. This compact touchmonitor is "designed for touch" from the ground up, with Elo's proven expertise and reliability built in, and not added as an afterthought by altering an existing monitor.
The 1739L features a brilliant wide viewing angle panel to instantly grab and hold the users' attention, whether they are checking out retail goods with a self-service kiosk or playing games in a casino or arcade. Because the enclosure is controlled by Elo's specifications and tooling, Elo's rear-mount monitors have a longlasting product cycle - important for continuity through all phases of project rollouts and when servicing. It also features a unique, injectionmolded minibezel with virtually invisible watertight seal, making it ideal for the rigors of public use.
Narrow borders, multiple mounting options, and a dual serial/USB touch interface add to the versatility of the 1739L. Worldwide agency approvals, as set forth on the back side of this datasheet, cover the entire monitor that is designed, built and supported by Elo, a true single source supplier.
Features
- Long lasting product cycle-enclosure controlled by Elo specifications
- High quality energysaving LED panel
- Future generation panels phased-in without external changes
- Zero-Bezel touch technologies: IntelliTouch Zero-Bezel surface acoustic wave, IntelliTouch Pro projected capacitive
- Standard bezel touch technologies: IntelliTouch or IntelliTouch Plus surface acoustic wave, SecureTouch vandalresistant surface acoustic wave, AccuTouch 5-Wire-Resistive, CarrollTouch Infrared touch technology
- "Built for Touch" with proven Elo expertise and reliability
What's in the Box
- Elo Open-Frame Touchmonitors 1739L
- Mounting kit
| Product Description | Elo Open-Frame Touchmonitors 1739L - LED monitor - 17" |
| Device Type | LED-backlit LCD monitor - 17" - touchscreen |
| Built-in Devices | Touch-screen |
| Aspect Ratio | 5:4 |
| Native Resolution | 1280 x 1024 at 75 Hz |
| Brightness | 250 cd/m2 |
| Contrast Ratio | 1000:1 |
| Response Time | 5 ms |
| Color Support | 16.7 million colors |
| Input Connectors | DVI-D, VGA |
| Color | Black, steel |
| Dimensions (WxDxH) | 14.5 in x 1.9 in x 12 in |
| Weight | 8.82 lbs |
| Localization | Worldwide |
| Compliant Standards | UL, VCCI, BSMI, cUL, C-Tick Class B, CCC, IC, FCC, TUV T, KC, China RoHS |
| Manufacturer Warranty | 3 years warranty |
