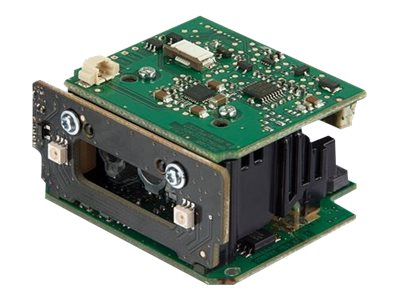

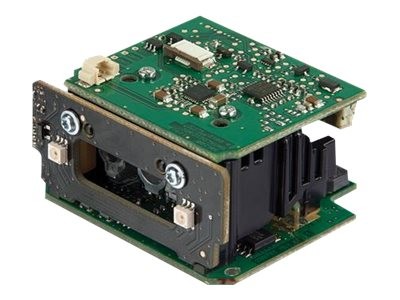

Datalogic Gryphon I GFE4400 2D (GFE4490)

GRYPHON,GFE4400,2D, RS232/USB

by Datalogic

Part #: GFE4490


View Detailed Description

MSRP: $372.00

$203.63

Save 45%

Call for Availability

The Gryphon 4000 series represents the premium level of data collection devices from Datalogic ADC. Using advanced imaging technology, the Gryphon GFE4400 2D engine provides a compact and easy-to-use solution for OEM use in self-service kiosks, price verifiers, ticket readers, document handling and medical laboratory applications, as well as vending machines and other automated equipment.

The GFE4400 2D OEM engine features outstanding near-field reading, a wide angle field-of-view, high motion tolerance, snappy reading, and also offers excellent performance on decoding poor or damaged bar codes. As with all Gryphon readers, the GFE4400 2D OEM engine offers good-read visual confirmation with Datalogic's patented 'Green Spot' technology.

User comfort is maximized with the GFE4400 2D OEM engine's steady, deep red illumination light. Easier on the eyes than competitive products with flicker illumination, the highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads. The aimer's center cross provides a locator for targeted scanning in a multiple bar code environment.

The GFE4400 2D OEM engine provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices.

The GFE4400 2D OEM engine eliminates the need for separate equipment with signature capture and document scanning capabilities.

The GFE4400 2D OEM engine supports several modes that can be used as a trigger. This module has the ability to automatically sense objects and trigger itself. A continuous scan mode captures data whenever a bar code passes into its field-of-view. The reader can also be triggered remotely through software commands or via hardware input from programmable logic controller (PLC) or sensor.

The GFE4400 2D OEM engine supports an RS-232 serial interface, a USB HID keyboard and a USB COM interface.

Features

  • Highly visible 4-Dot aimer with center-cross for targeted scanning
  • Omnidirectional reading
  • Advanced motion tolerance optics
  • Image capture and document scanning capabilities
  • Reads bar codes down to 4 mils
  • Reads 1D, 2D and postal codes plus stacked and composite codes
  • Datalogic’s patented ‘Green Spot’ technology for good-read feedback
  • Automatic sensing or manual trigger options available

Product DescriptionDatalogic Gryphon I GFE4400 2D - barcode scanner
TypeBarcode scanner - plug-in module - interface cable required - decoded
Minimum Bar Width4 mil
Scan Field Width0.47 in - 16.5 in
Scan Element TypeVisible laser diode
Sensor Resolution752 x 480
Connectivity TechnologyWired
Dimensions (WxDxH)1.9 in x 1.7 in x 1.1 in
Weight1.81 oz
Manufacturer Warranty3 years warranty
