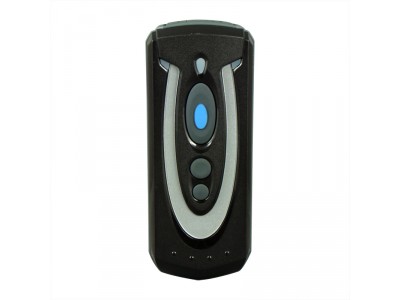

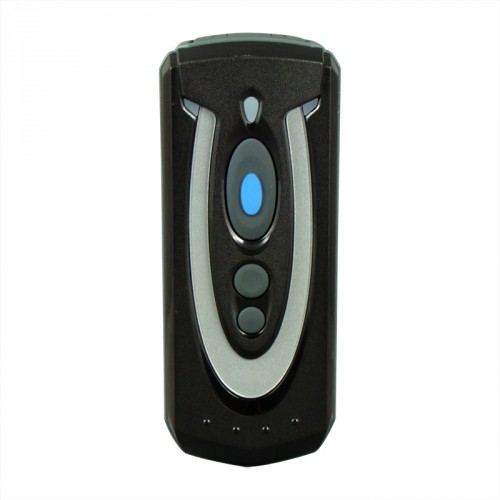

Cino FuzzyScan PF680BT (LTC-GPPF68011000K01)

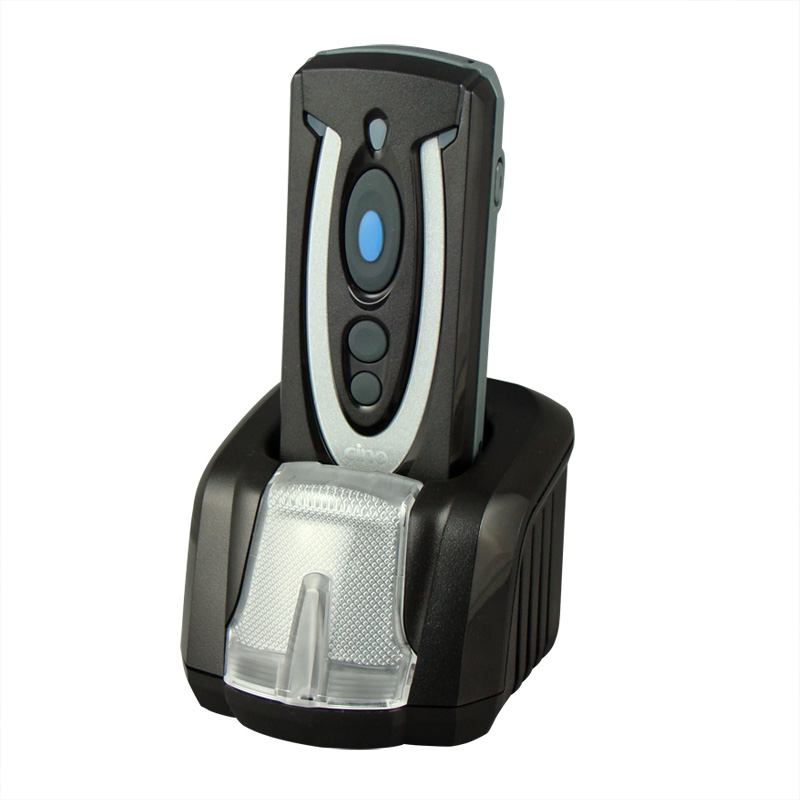

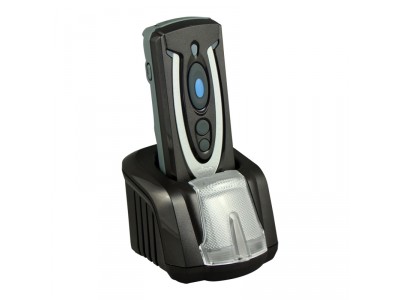

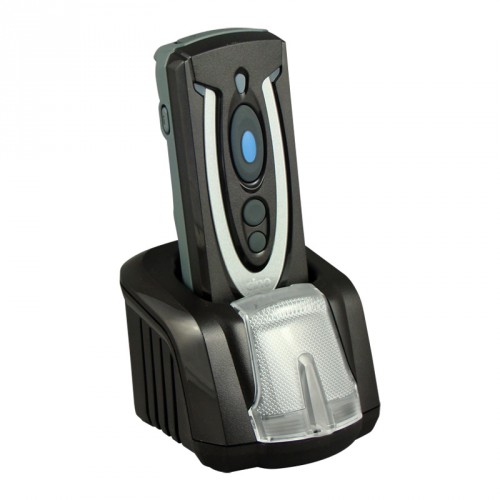

FuzzyScan PF680BT Bluetooth Pocket Linear-Imaging Scanner (Smart Cradle. 1D, USB Kit, Black)

by Cino

Part #: LTC-GPPF68011000K01


View Detailed Description
  • Ships Within 2 - 4 Weeks
  • Free Shipping for most products over $125
  • View Datasheet

MSRP: $309.00

$293.55

Call for Availability

The PF680BT is powered by Innovative FuzzyScan 3.0 Imaging Technology and the latest Bluetooth v 4.0 cordless technology. This rugged, enterprise class Bluetooth linear pocket scanner series combines an impressive design, cutting-edge technology with industrial class reliability and functionality. It provides a solution for mobile barcode scanning and data collection easily connecting to Windows, Android, IOS tablets and phones.

The PF680BT Bluetooth pocket scanner series is designed:

  • To fit in your hand for single-handed operation. You can put it into your pocket or purse for easy-carrying, no matter where the location. You can also wear it around your neck or wrist with the provided lanyard.

  • To meet the IP65 rating which can protect against particles and liquids. The over-mold design creates a robust protective shell around the device. The PF680BT can withstand multiple drops from 2.0 meters onto concrete. The cradle contact pin is designed to be durable, lasting over 1,000,000 connections/disconnections. These features allow the PF680BT pocket scanner survive in any kind of harsh environment.

  • With erognomics in mind. A special grip matches the contour of your hand, allowing for extended use on any scan-intensive operation.

Features

  • Bluetooth v4.0 wireless technology
  • 100m communication coverage
  • Plug and Play capability
  • Supports multiple connections of up to 7 scanners in PICO mode
  • Bluetooth HID and SPP profiles supported to connect with most Bluetooth-enabled host devices
  • Compatible with the most popular iOS, Android and Windows devices
  • Compact, light-weight, ergonomic and easy-carrying form factor
  • IP65 rating protects against particles and liquids
  • Withstands multiple 2.0 meter drops onto concrete
  • One big trigger key and two function keys for ease of use
  • Over 80,000 EAN-13 scans of memory storage for batch scanning
  • Out-of-range scanning and auto-reconnection features
  • Supports more than 40,000 scans on a single full charge
  • Outstanding reading capability on a 3 mil barcode
  • Superior readability on low contrast, smudged, poorly-printed or damaged barcodes
  • Charge with a cradle or micro USB cable
  • Multip-cradle Solution at no extra cost
  • Antimicrobial model is available for healthcare applications

What's in the Box

  • Scanner
  • Battery
  • Smart Cradle
  • Power Supply
  • Quick Start Guide
  • Interface cable
  • Detachable lanyard
Performance Characteristics
Optical System High performance Linear Imaging Engine
Print Contrast 20% minimum reflective difference
Minimum Resolution Typical 3 mil (code 39, PCS 0.9)
Reading Range More than 24 inches on 100% UPC/EAN symbols
Light Source 630nm visible red LED
Scan Rate Dynamic scanning rate up to 500 scans per second
Configuration Setup Bar code command
Windows utility - FuzzyScan PowerTool
Pitch/Skew/Tilt ± 65°/ ± 65°/ 55°
Operating Modes Trigger
Data Editing Condensed DataWizard via bar code command
Full-feature DataWizard via FuzzyScan PowerTool
DataWizard Premium via FuzzyScan PowerTool
User Interfaces 2 function keys, one scan button
3 LEDs for power, link and status indication
Programmable beeper
Optional vibrator
Electrical Characteristics
Battery 3.7V, 1150mAH Li-ion rechargeable battery
Battery Charge Time Approx. 3-4 hours per full charge
Communication Characteristics
RF Standard Bluetooth v4.0
RF Frequency Band 2.402~2.4830 GHz unlicensed ISM band
Radio Link Modes PAIR mode, PICO mode, SPP mode, HID mode
Communication Range More than 100 meters in open space when working
with smart cradle, line of sight
Supported Profiles SPP, HID
Supported Mobile OS iOS (HID), Android (SPP & HID)
Supported Symbologies
1D Linear Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic Code 128, GS1-128, Codabar, Code 11, Code 93 Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5 German Postal Code, China Postal Code, IATA UPC/EAN/JAN, UPC/EAN/JAN with Addendum Telepen, MSI/Plessey & UK/Plessey GS1 DataBar (formly RSS) Linear & Linear Stacked
Linear-stacked (PF688BT) PDF417, Micro PDF417, Codablock, Composite (available for PF688BT only)
Physical Characteristics
Dimension 119.0 mm (L) x 49.0 mm (W) x 24/38 mm (D)
Weight 135g (battery included)
User Environment
Drop Specifications Withstand 50 drops at 6.0ft / 1.8m to concrete
Withstand 10 drops at 6.6ft / 2.0m to concrete
Environmental Sealing IP65
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5% to 95% related humidity, non-condensing
Ambient Light Immunity 0 ~ 100,000 lux
Safety & Regulatory
EMC & Radio CE,FCC,BSMI,C-Tick,KC,NCC,VCCI,MIC
Safety LED Eye Safety IEC62471, Exempt Group
Environmental Compliant with RoHS directive
Accessories
Smart Cradle RF Standard: Bluetooth v4.0
Battery charging: Fast charge
User Interfaces: 1 blue link indicator, 2-color status indicator, Beeper, Paging/Reset button
Host Interface: PS/2 (DOS V) Keyboard Wedge, TTL RS232 Serial, USB HID, USB COM
Charging Cradle Battery charging: Fast charge
User Interface: 1 blue power indicator
Host interface: USB
Interface Cable PS/2 (DOS V) Keyboard Wedge Cable
RS232 Serial Cable
USB Cable
Micro USB Cable
Available Configurations
Lite Kit Scanner x 1, Micro USB Cable x 1,
Battery Pack x 1, Strap x1
Combo Kit Scanner x 1, Smart Cradle x 1, Battery Pack x 1
PSU x 1, PS/2 or RS232 or USB Cable x 1, Strap x1
Standard Kit Scanner x 1, Charging Cradle x 1, Battery Pack x 1
PSU x 1, USB Cable x 1, Strap x1
