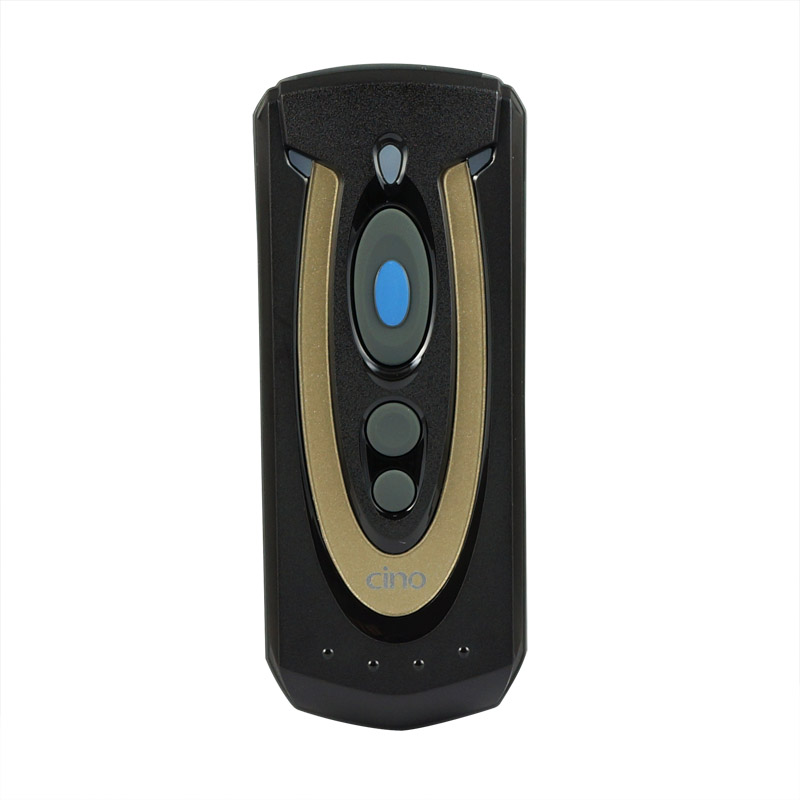

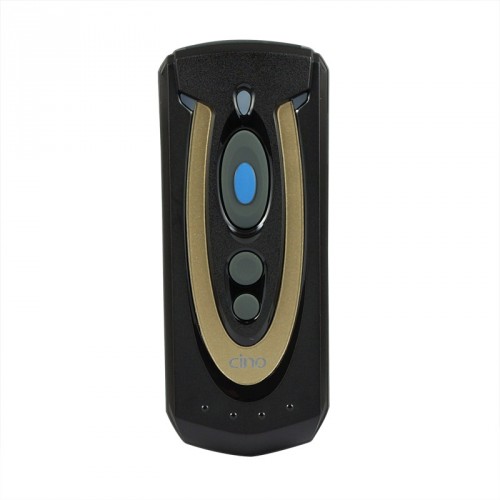

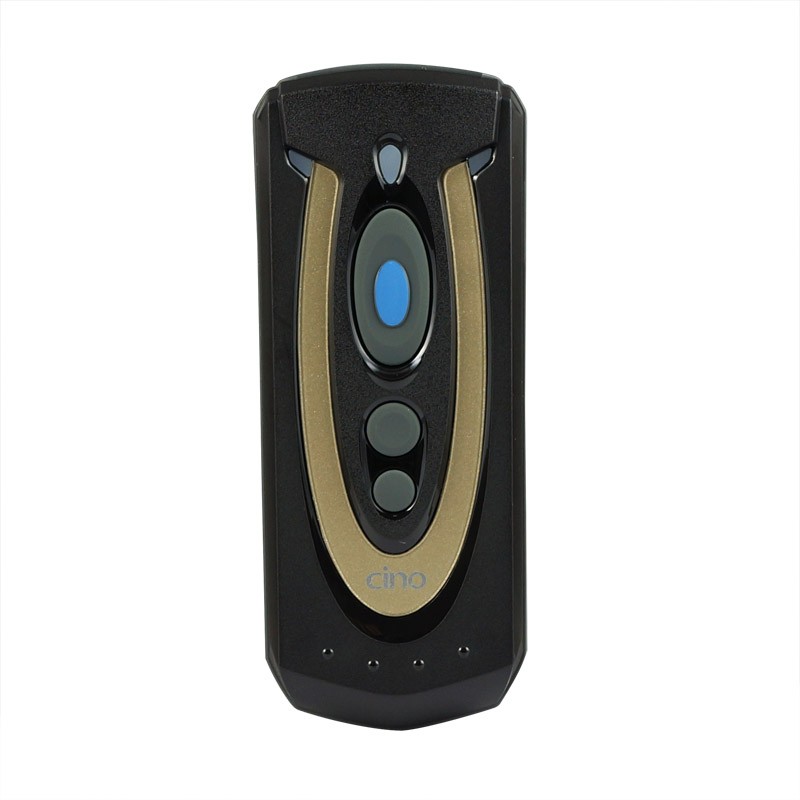

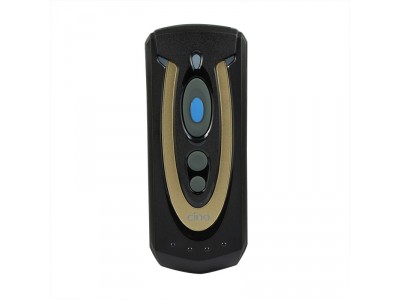

Cino FuzzyScan PA670BT (LTC-GPPA67011B00K05)
FuzzyScan PA670BT Bluetooth Pocket Area-Imaging Scanner LITE Kit ( HD Focus, 1D & 2D , Lite Kit, Black)by Cino
•Part #: LTC-GPPA67011B00K05
View Detailed Description
MSRP: $385.00
$365.75
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The Lite kit does not include a Smart cradle. This pocket scanner is designed to be charged via the micro USB cable and paired directly to the on board Bluetooth radio in the tablet, smartphone or computer system. The PA670BT is a ruggedized Enterprise Class Bluetooth Pocket Scanner. Powered by Innovative FuzzyScan Imaging Technology 3.0 and the latest Bluetooth v 4.0 technology, the rugged yet compact Cino Bluetooth 2D area imaging pocket scanner series comes with ultimate portability, flexibility wireless connectivity, extraordinary reading performance and diverse functionality. It provides a solution for mobile barcode scanning and data collection in a healthcare environment.
- Ultimate Portability
- High Reliability for Low TCO
- Maximize Worker’s Comfort
Features
- Bluetooth v4.0 wireless technology
- Smart Cradle providing Plug-and-Play cordless migration with 100m+ communication coverage
- Support multiple connections up to 7 scanners in PICO mode
- Bluetooth HID and SPP profiles supported to connect with most Bluetooth-enabled hosts
- Compatible with the most popular iOS, Android, and Windows devices
- IP65 rating well protects against particle and liquid
- Rugged construction withstands multiple drops from 2 meter (6.6 feet) onto concrete
- Integrated one big trigger key and four function keys for ease of use
- Timestamp function is available for both online mode and batch mode
- Over 100,000 EAN-13 scans of memory storage for batch scanning
- Out-of-range scanning and auto-reconnection features
- Efficient power management supports more than 35,000 scans on a single full charge
- Read most popular linear 1D, stacked and 2D bar codes
- Outstanding reading capability on low contrast, smudged, poorly-printed or damaged barcodes
- Digital image capture capability
- DataWizard Premium supported for advanced data formatting and security mechanism
- Charging through cradle or micro USB cable
- Build-in vibrator ideal for noisy and quiet working environments
What's in the Box
- Scanner
- Battery
- Quick Start Guide
- Micro USB cable
- Detachable lanyard
Scan Pattern | Area Image |
---|---|
Print Contrast | 20% minimum reflectance difference |
Light Source | Aiming Pattern : 630nm LED Illumination : 630nm LED |
Min. Resolution | SR Model 4 mil Code 39 7 mil DM HD Model 3 mil Code 39 5 mil DM |
Roll, Pitch, Skew | Roll: 360°; Pitch: ± 75°; Skew: ± 65° |
Reading Range |
SR Model
5 mil (0.13mm) C39
13 mil (0.33mm) UPC/EAN 10 mil (0.25mm) 4~15 cm (1.5”~5.9”)
3~38 cm (1.1”~15.0”) 3~15.5 cm (1.1”~6.1”) HD Model
3 mil (0.07mm) C39
5 mil (0.13mm) C39 13 mil (0.33mm) UPC/EAN 5 mil (0.13mm) DM 10 mil (0.25mm) QR 3~8 cm (1.1”~3.1”)
3~11 cm (1.1”~4.3”) 2.5~16.5 cm ( 0.9”~6.4”) 3.5~9 cm ( 1.3”~3.5”) 3.5~8 cm ( 1.3”~3.1”) |
Operating Modes | Trigger |
Data Editing | Condensed DataWizard via bar code command Full-featured DataWizard via FuzzyScan PowerTool DataWizard Premium via FuzzyScan PowerTool |
User Interfaces | 4 function keys, one scan button 3 LEDs for power, link and status indication Adjustable beeper Optional vibrator |
Image Capture | Graphic Format : BMP |
1D Linear Codes | Code 39, Code 39 Full ASCII, Code 32, Code 128, GS1-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum,Telepen, MSI/Plessey & UK/Plessey ,GS1 DataBar, Linear & Linear Stacked |
---|---|
2D Codes | PDF417, Micro PDF417, Codablock F, Code 16K, Code 49, Composite Codes, DataMatrix, MaxiCode, QR Code, Aztec, MicroQR |
Postal Codes | Australian Post, US Planet, US Postnet, Japan Post, Dutch KIX code, Intelligent Mail, British Post |
RF Standard | Bluetooth v4.0 |
---|---|
RF Frequency | Band 2.402~2.4830 GHz unlicensed ISM band |
Radio Link Modes | PAIR mode, PICO mode, SPP mode, HID mode |
Communication Range | More than 100 meters in open space when working with smart cradle, line of sight |
Supported Profiles | SPP, HID |
Supported Mobile OS | iOS (HID), Android (SPP & HID) |
Dimension | 119.0 mm (L) x 49.0 mm (W) x 24/38 mm (D) |
---|---|
Weight | 135g (battery included) |
EMC & Radio | CE,FCC,BSMI,C-Tick,KC,NCC,VCCI,MIC |
---|---|
Safety | LED Eye Safety IEC62471, Exempt Group |
Environmental | Compliant with RoHS directive |
Battery Standard Optional |
3.7V, 1150mAH Li-ion rechargeable battery 3.7V, 2300mAH Li-ion rechargeable battery |
---|---|
Battery Charge Time | Approx. 3-4 hours per full charge(Standard Battery) |
Drop Specifications | Withstand multiple 2m/6.6ft. drops to concrete |
---|---|
Environmental Sealing | IP65 |
Operating Temperature | -10°C to 50°C (14°F to 122°F) |
Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
Humidity | 5% to 95% related humidity, non-condensing |
Ambient Light Immunity | 0 ~ 100,000 lux |
Smart Cradle | RF Standard: Bluetooth v4.0 Battery charging: Fast charge User Interfaces: 1 blue link indicator, 2-color status indicator, Beeper, Paging/Reset button Host Interface: PS/2 (DOS V) Keyboard Wedge, TTL RS232 Serial, USB HID, USB COM |
---|---|
Charging Cradle | Battery charging: Fast charge User Interface: 1 blue power indicator Host interface: USB |
Interface Cable | PS/2 (DOS V) Keyboard Wedge Cable RS232 Serial Cable USB Cable Micro USB Cable |
Lite Kit | Scanner x 1, Micro USB Cable x 1, Battery Pack x 1, Strap x1 |
---|---|
Combo Kit | Scanner x 1, Smart Cradle x 1, Battery Pack x 1 PSU x 1, PS/2 or RS232 or USB Cable x 1, Strap x1 |
Standard Kit | Scanner x 1, Charging Cradle x 1, Battery Pack x 1 PSU x 1, USB Cable x 1, Strap x1 |
