Cino FuzzyScan A770BT (LTC-GPHS77011000K11)

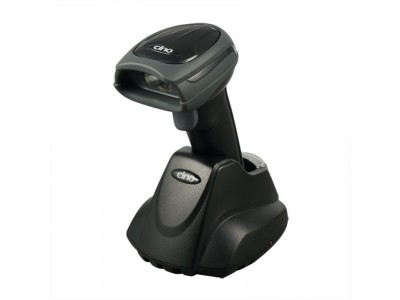

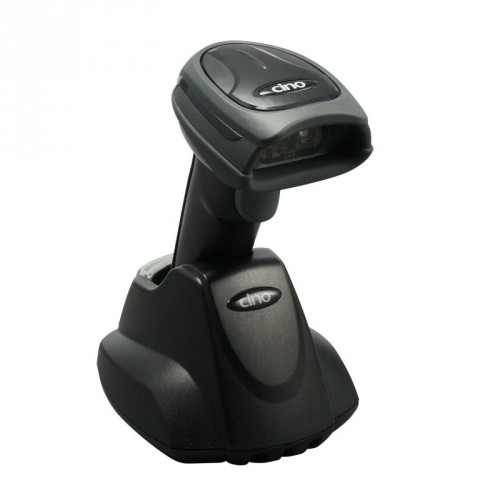

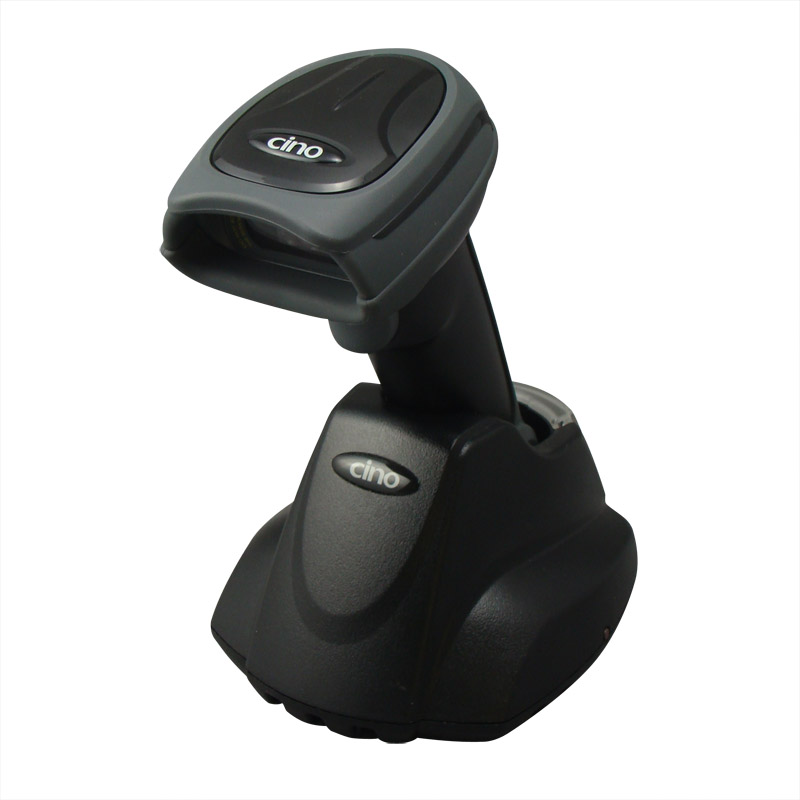

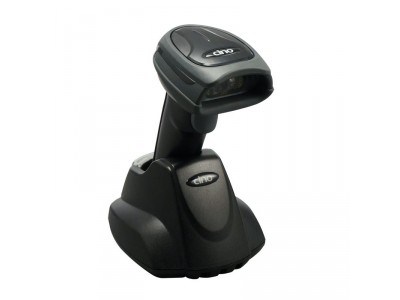

FuzzyScan A770BT Standard Range Bluetooth Area-Imaging Scanner (SR Focus, Smart Cradle, 1D & 2D, USB Kit , Black)by Cino
•Part #: LTC-GPHS77011000K11
View Detailed Description
MSRP: $420.00
$399.00
The A770BT is a rugged, high performance Standard Range cordless 2D area imaging Scanner. Designed with innovative FuzzyScan 3.0 imaging and advanced Bluetooth v4.0 wireless technology, the cordless Area Imaging Scanner delivers superior reading performance, impressive snappy reading and the ultimate freedom of cordless operations. With its outstanding reading performance, superior wireless connectivity, robust enclosure and versatile features, this scanner raises the bar with exceptional cost-performance.
Exceptional mobility and flexibility
Powered by Bluetooth v4.0 wireless technolog it provides several radio link modes to communicate with host devices. When the Bluetooth-enabled host device is not available, it can work with the smart cradle in PAIR mode or PICO mode. This provides an instant plug-and-play cordless migration to your existing non-Bluetooth-enabled IT assets. The PICO mode supports multiple connections of up to 7 scanners with one smart cradle, reducing the cost of system. You can use the A770BT with bluetooth-enabled host devices via SPP mode or HID mode.
Superior reading performance
The A770BT can omni-directionally read the most commonly-used linear, 2D, and postal barcodes codes . High Density and Standard Range models are designed for multiple barcode scanning applications. It can scan barcodes printed on reflective material and curved surfaces as well as poorly printed, distorted and damaged bar codes.
Versatile functionality and feature rich
Feature-rich and a best in class value; in batch mode it can store up to 100,000 EAN-13 scans of barcode data . The out-of-range scanning feature allows the A770BT to continue reading data even if it it loses radio connection. For a hands-free application, you can enable the Auto-sense function and switch from trigger to presentation mode automatically when placed on a SmartStand or a smart cradle
Features
- Built with the latest Bluetooth v4.0 wireless technology
- Communication coverage of over 100 yards when using the smart cradle
- Plug-and-play cordless migration
- Supports multiple connections up to 7 scanners in PICO mode
- Supports both HID and SPP profiles connectivity with most Bluetooth-enabled hosts
- Compatible with iOS and Android devices
- Batch scanning providing up to 100,000 EAN-13 scans of data storage
- Scans and reads the most commonly used 1D, 2D and postal barcodes
- Superior omni-directional first-time reading
- Digital image capture capability
- Ruggedized over-mold designed to withstand multiple 6.5 foot drops to concrete
- The cradle contact pin is designed to be durable, lasting over 1,000,000 connections/disconnections
- In addition to beeping there is an option for the scanner to vibrate
What's in the Box
- Scanner
- Battery
- Smart Cradle
- Power Supply
- Quick Start Guide
- Interface cable
| Image Sensor | WVGA 752x480 Pixels |
|---|---|
| Print Contrast | 20% minimum reflectance difference |
| Min. Resolution | SR Model 3.3 mil Code 39 7 mil DM HD Model 2.7 mil Code 39 5 mil DM |
| Light Source | Aiming Pattern : 630nm LED Illumination : 630nm LED |
| Roll, Pitch, Skew | Roll: 360°; Pitch: ± 75°; Skew: ± 65° |
| Motion Tolerance | Up to 25 inch/63.5 cm per second |
| Reading Range |
SR Model
5 mil (0.13mm) C39
13 mil (0.33mm) EAN 10 mil (0.25mm) DM 3.8-19.5cm (1.5”-7.7”)
2.4-40.5cm (0.9”-15.9”) 3.0-20.0cm (1.2”-7.9”) DM HD Model
3 mil (0.07mm) C39
5 mil (0.13mm) C39 13 mil (0.33mm) EAN 5 mil (0.13mm) DM 10 mil (0.25mm) DM 2.2-9.6cm (0.9”-3.8”)
2.8-11.5cm (1.1”-4.5”) 1.8-20.3cm (0.9”-12.9”) 2.8-7.5cm (1.1”-3.0”) 1.2-12.0cm (0.5”-4.7”) |
| Operating Modes | Trigger, Presentation |
| Configuration Setup | Bar code command Windows utility - FuzzyScan PowerTool |
| Data Editing | Condensed DataWizard via bar code command Full-feature DataWizard via FuzzyScan PowerTool DataWizard Premium via FuzzyScan PowerTool |
| User Interfaces | Blue link indicator and 2-color status indicator Programmable beeper Optional vibrator |
| Image Capture | Graphic Format : BMP |
| Battery | 3.7V, 2600mAH Li-ion rechargeable battery |
|---|---|
| Battery Charge Time | Approx. 4-5 hours per full charge |
| Scans per full Charge | More than 63,000 scans and transmissions |
| Voltage & Current (Scanner and Smart Cradle) | Voltage Current (Charging/ Non Charging) 5 ± 10% VDC Max.750 mA / 175mA with external power |
| RF Standard | Bluetooth v4.0 |
|---|---|
| RF Frequency | Band 2.402~2.4830 GHz unlicensed ISM band |
| Radio Link Modes | PAIR mode, PICO mode, SPP mode, HID mode |
| Communication Range | More than 100 meters in open space when working with smart cradle, line of sight |
| Supported Profiles | SPP, HID |
| 1D Linear | Code 39, Code 39 Full ASCII, Code 32, Code 128, GS1-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey , GS1 DataBar, Linear & Linear Stacked |
|---|---|
| 2D Codes | PDF417, Micro PDF417, Codablock F, Code 16K, Code 49, Composite Codes, DataMatrix, MaxiCode, QR Code, Aztec, MicroQR |
| Postal Codes | Australian Post, US Planet, US Postnet, Japan Post Dutch KIX code, Intelligent Mail, British Post |
| Drop Specifications | Withstand 50 drops at 1.8m / 6.0ft to concrete Withstand 10 drops at 2.0m / 6.6ft to concrete |
|---|---|
| Environmental Sealing | IP41 |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% to 95% related humidity, non-condensing |
| Ambient Light Immunity | 0 ~ 100,000 lux |
| ESD Protection | Functional after 15kV discharge |
| Dimension | 95.0 mm (L) x 70.5 mm (W) x 161.7 mm (D) |
|---|---|
| Weight | 210g (Battery included) |
| EMC & Radio | CE,FCC,BSMI,C-Tick,KC,NCC,VCCI,MIC |
|---|---|
| Safety | LED Eye Safety IEC62471, Exempt Group |
| Environmental | Compliant with RoHS directive |
| Smart Cradle | RF Standard: Bluetooth v4.0 Battery charging: Fast charge User Interfaces: 1 blue link indicator, 2-color status indicator, Beeper, Paging/Reset button Host Interface: PS/2 (DOS V) Keyboard Wedge, TTL RS232 Serial, USB HID, USB COM |
|---|---|
| Charging Cradle | Battery charging: Fast charge User Interface: 1 blue power indicator |
| Interface Cables | PS/2 (DOS V) Keyboard Wedge Cable RS232 Serial Cable USB Cable |
| Others | 5VDC Power Supply Unit Hand-Free SmartStand |
