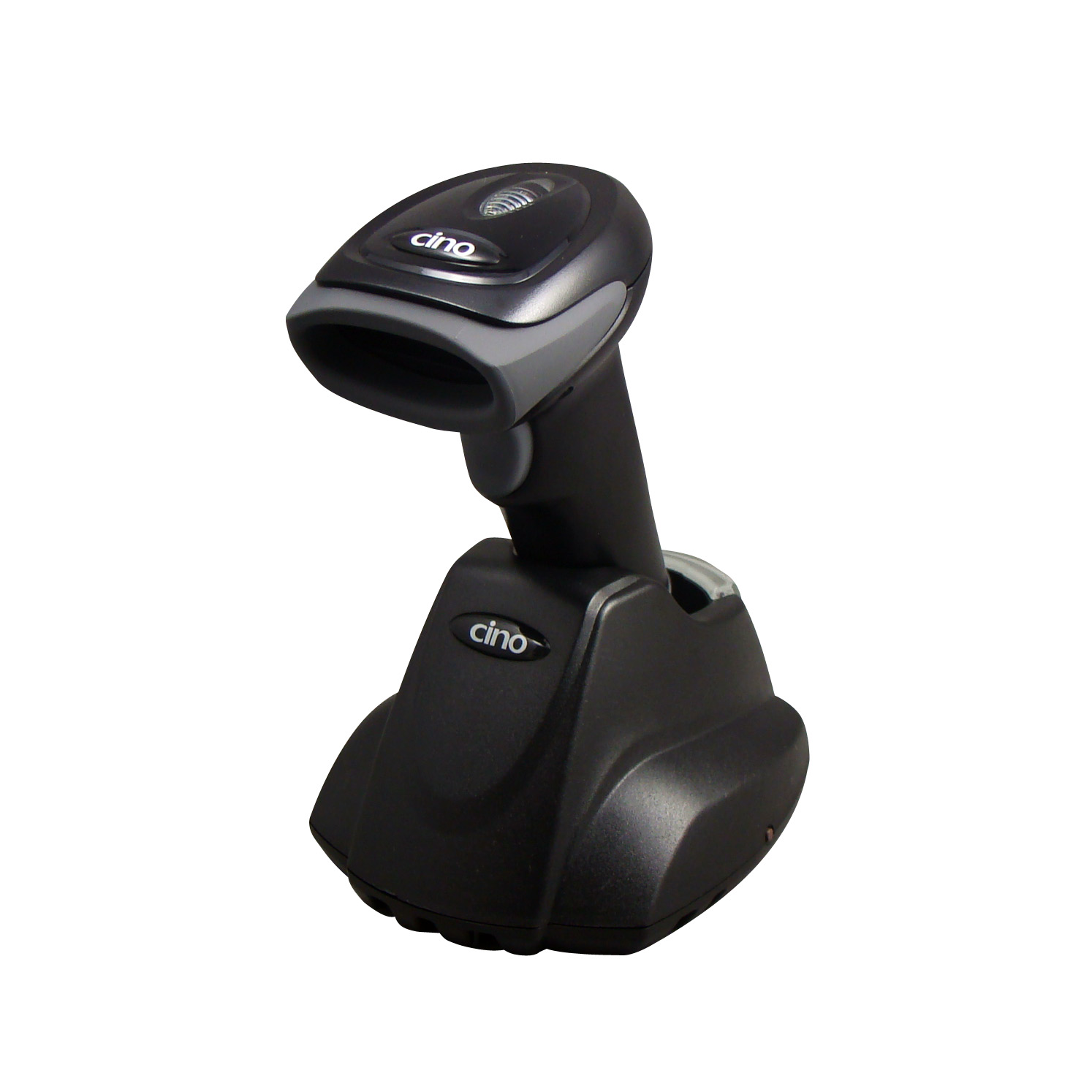

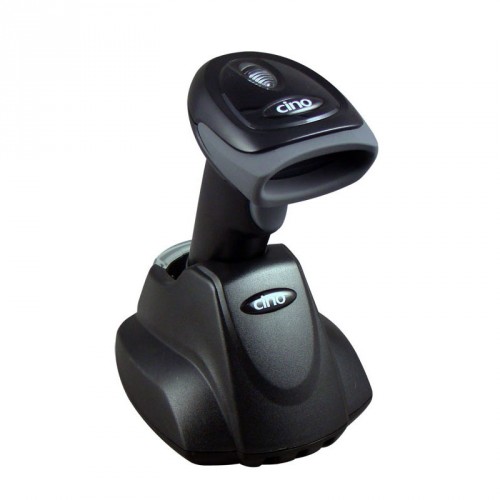

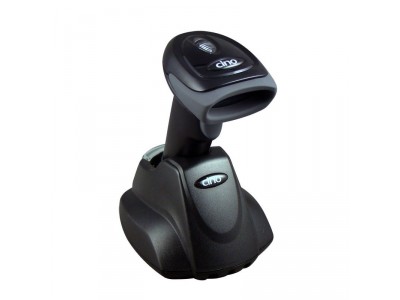

Cino FuzzyScan F680BT (LTC-GPHS68011000K31)

FuzzyScan F680BT Bluetooth Linear-Imaging Scanner ( Smart Cradle, 1D, USB Kit ,Black)

by Cino

Part #: LTC-GPHS68011000K31


View Detailed Description
  • Ships Within 2 - 4 Weeks
  • Free Shipping for most products over $125
  • View Datasheet

MSRP: $309.00

$293.55

Call for Availability

The F680BT is a durable, Long Range cordless linear barcode scanner. It is a linear imaging scanner and a member of FuzzyScan wireless family. Powered by cutting-edge FuzzyScan 3.0 Imaging Technology and Bluetooth v4.0 wireless technology, it provides outstanding reading performance, and gives the user the freedom of mobility. This cordless scanner is the most cost-effective “cable replacement” solution for retail and commercial applications.

Superior wireless connectivity
F680BT provides several radio link modes to communicate with most host devices. When a bluetooth-enabled host device is not available, it can work with the smart cradle in PAIR or PICO mode. This provides an instant plug-and-play cordless migration to your existing non-Bluetooth-enabled IT assets. PICO mode supports multiple connections of up to 7 scanners using one smart cradle, reducing your total cost of ownership. You also can use it with Bluetooth-enabled host devices via SPP or HID service in SPP or HID mode.

Best in class value
This scanner is feature-rich and a best in class value. When enabling the batch scanning functionality it  is capable of collecting more than 80,000 EAN-13 of barcode data. This makes it ideal for inventory applications. The out-of-range scanning feature allows the barcode scanner to continue reading data if it loses radio connection. Once you enable the presentation scanning auto-sense function to hands-free, and place it in the SmartStand or Smart Cradle the F680BT can automatically switch from trigger mode to presentation mode.

Outstanding reading performance
Reads 13 mil UPC barcodes from up to 19" away and high density barcodes down to 3 mil within a 3" read zone and will accurately scan low contrast, damaged, smudged, poorly-printed barcodes. It offers superior motion tolerance for rapid data-capture on the move.

Features

  • Durable construction and the ability to withstand multiple 6ft drops on a concrete surface
  • High power Bluetooth provides 100 meter range between scanner and base station
  • Plug-and-play cordless migration
  • Supports multiple connections of up to 7 scanners in PICO mode
  • Supports both HID and SPP profile connections with most Bluetooth-enabled hosts
  • Batch scanning mode can store up to 80,000 barcode scans in onboard memory
  • Batch mode can be configured for auto-on when out of range and auto-reconnect when the scanner is returned to base station communication range
  • Reads 13 mil UPC barcodes from up to 19" away and high density barcodes down to 3 mil within a 3" read zone
  • Up to 27” reading range on general barcodes
  • Unsurpassed readability on low contrast, smudged, poorly-printed or damaged barcodes
  • GS1 DataBar Linear-stacked, PDF, MicroPDF and composite code are supported

What's in the Box

  • Scanner
  • Battery
  • Smart Cradle
  • Power Supply
  • Quick Start Guide
  • Interface cable
Performance Characteristics
Optical System High performance Linear Imaging Engine
Print Contrast 15% minimum reflective difference
Minimum Resolution Typical 3 mil (code 39, PCS 0.9)
Working Distance Up to 19 inches on 100% UPC/EAN symbols
Up to 27 inches on 20 mil Code 39
Light Source 630nm visible red LED
Scan Rate Dynamic scanning rate up to 500 scans per second
Reading Direction Bi-directional (forward and backward)
Pitch/Skew/Tilt ± 65°/ ± 65°/ ± 55°
Operating Modes Trigger, Presentation
Configuration Setup Bar code command
Windows utility - FuzzyScan PowerTool
Data Editing Condensed DataWizard via bar code command
Full-feature DataWizard via FuzzyScan PowerTool
User Interfaces Blue link indicator and 2-color status indicator
Programmable beeper
Optional vibrator
Electrical Characteristics
Battery 3.7V, 2600mAH Li-ion rechargeable battery
Battery Charge Time Approx. 4-5 hours per full charge
Scans per full Charge More than 60,000 scans and transmissions
Power Consumption Voltage             Current (Charging/ Non Charging)
5 ± 10% VDC   Max.680 mA / 85mA with external power
Communication Characteristics
RF Standard Bluetooth v4.0
RF Frequency Band 2.402~2.4830 GHz unlicensed ISM band
Radio Link Modes PAIR mode, PICO mode, SPP mode, HID mode
Communication Range More than 100 meters in open space when working with smart cradle, line of sight
Supported Profiles SPP, HID
Supported Symbologies
1D Linear Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic
Code 128, GS1 128, Codabar, Code 11, Code 93
Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5
German Postal Code, China Postal Code, IATA
UPC/EAN/JAN, UPC/EAN/JAN with Addendum
Telepen, MSI/Plessey & UK/Plessey
GS1 DataBar (formly RSS) Linear & Linear Stacked
Linear-stacked PDF417, Micro PDF417, Codablock F, Composite (available for F688BT only)
User Environment
Drop Specifications Withstand 50 drops at 5.2ft / 1.6m to concrete
Withstand 10 drops at 6.0ft / 1.8m to concrete
Environmental Sealing IP41
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5% to 95% related humidity, non-condensing
Ambient Light Immunity 0 ~ 100,000 lux
ESD Protection Functional after 15kV discharge
Physical Characteristics
Dimension 97.0 mm (L) x 65.0 mm (W) x 156 mm (D)
3.81 in. (L) x 2.55 in. (W) x 6.14 in. (D)
Weight 198g (battery included)
Color Light Gray or Black
Safety & Regulatory
EMC CE,FCC,BSMI,C-Tick,KC,NCC,VCCI,MIC
Safety LED Eye Safety IEC62471, Exempt Group
Environmental Compliant with RoHS directive
Accessories
Smart Cradle RF Standard: Bluetooth v4.0
Battery charging: Fast charge
User Interfaces: 1 blue link indicator, 2-color status indicator, Beeper, Paging/Reset button
Host Interface: PS/2 (DOS V) Keyboard Wedge, TTL RS232 Serial, USB HID, USB COM
Charging Cradle Battery charging: Fast charge
User Interface: 1 blue power indicator
Interface Cables PS/2 (DOS V) Keyboard Wedge Cable
RS232 Serial Cable
USB Cable
Others 5VDC Power Supply Unit
Hand-Free SmartStand
Universal Holder
