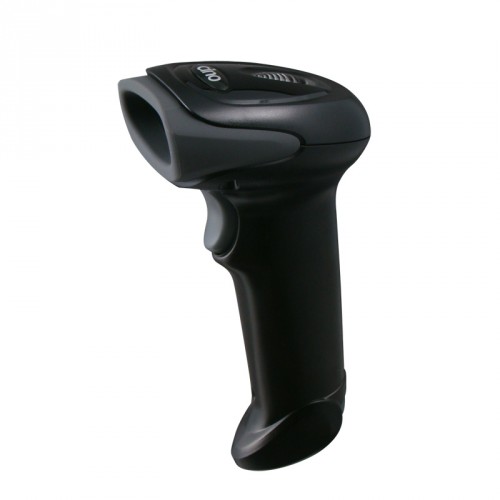

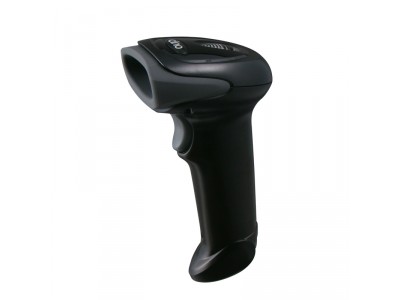

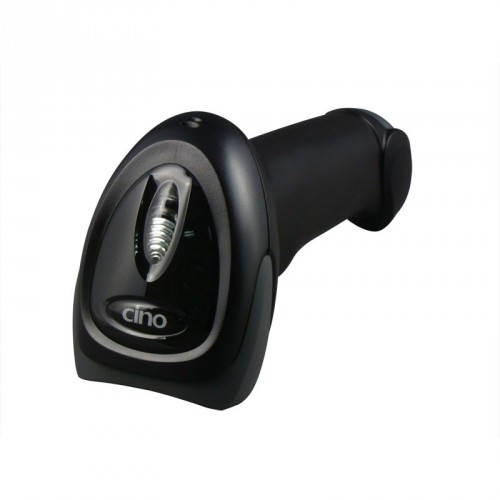

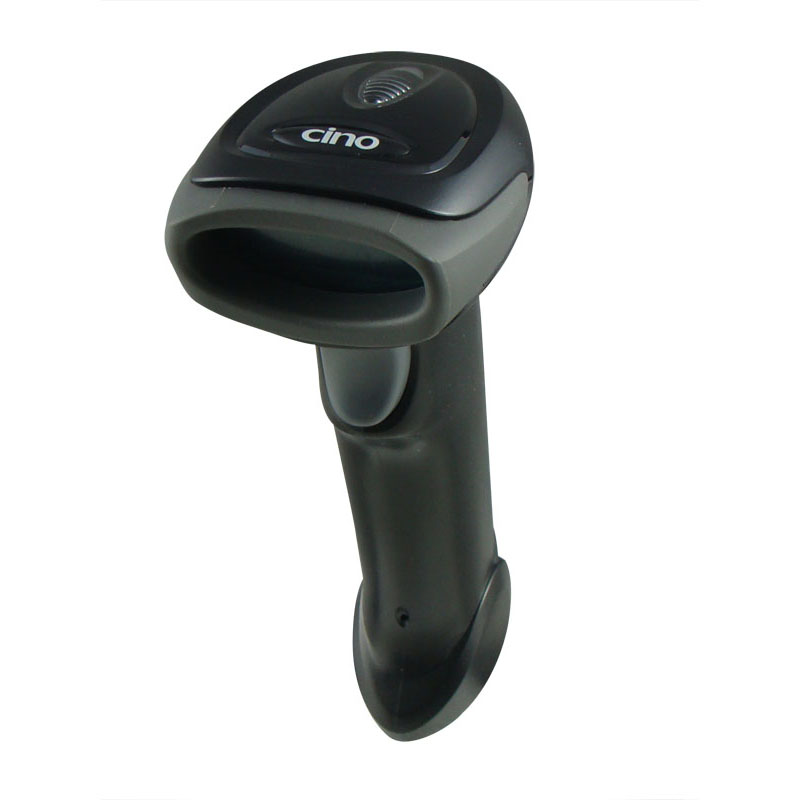

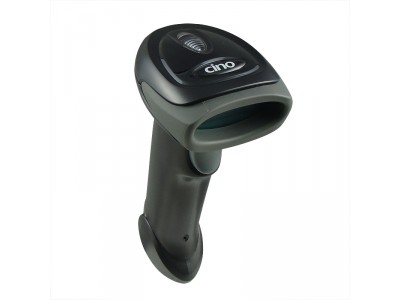

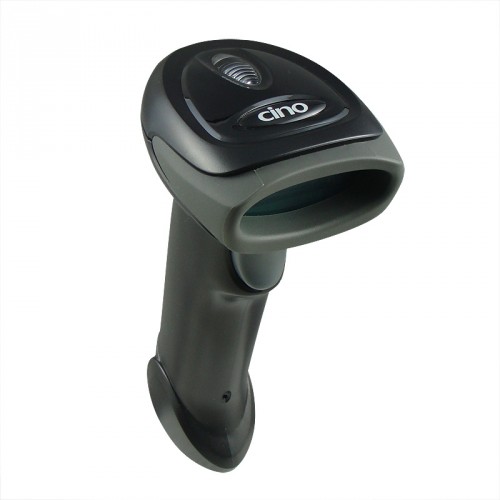

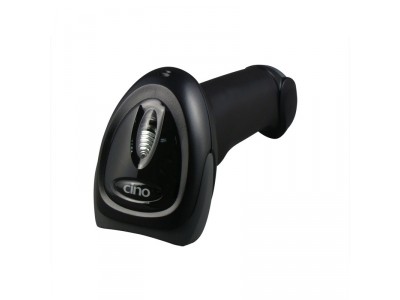

Cino FuzzyScan F680 (LTC-GPHS68001000K23)

FuzzyScan F680 Linear-Imaging Scanner Serial Kit (1D, Serial Kit, Black)

by Cino

Part #: LTC-GPHS68001000K23


View Detailed Description

MSRP: $117.00

$111.15

Call for Availability

The F680 is a compact and durable linear barcode scanner built with cutting-edge FuzzyScan 3.0 imaging technology. It is a best in class scanner at an affordable price. The combination of a compact durable form-factor and superior reading performance makes it an ideal solution for retail and commercial applications.

Outstanding Performance

With FuzzyScan 3.0 Imaging Technology, the F680 series quickly reads the low contrast, damaged, smudged and poorly-printed barcodes commonly found in the real world.


Stacked Linear Barcode Support

This scanner supports the most commonly used stacked linear barcodes, including PDF, MicroPDF, Codablock, GS1 DataBar and Composite.



Features

  • GS1 DataBar, PDF, MicroPDF and composite code support
  • Outstanding reading capability on 3 mil barcode with more than 3” depth of field
  • Can scan at distanes of up to 19“  on 100% UPC/EAN symbols
  • Provides a read range of up to 27” on general barcodes
  • Unsurpassed readability on low contrast, soiled, poorly-printed or damaged barcodes
  • Superior motion tolerance for rapid and accurate data-capture on the move
  • High speed scanning rate of up to 500 scans per second
  • All-in-one host interface design,including USB HID, USB COM,PS/2 keyboard wedge and RS232

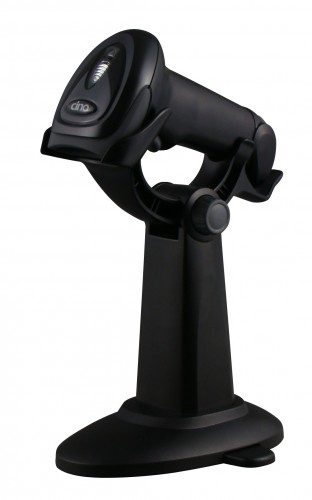

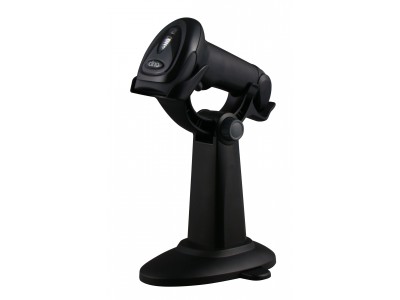

  • Automatically switch between presentation scanning and hand-held scanning using the smartstand
  • In addition to beeping there is an option for the scanner to vibrate

What's in the Box

  • Scanner
  • Quick Start Guide

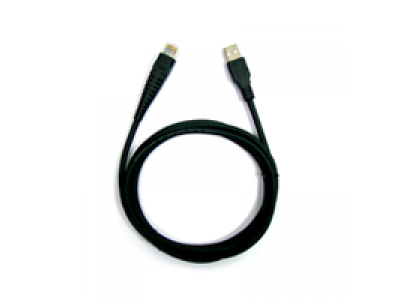

  • Interface cable
Performance Characteristics
Optical System High performance Linear Imaging Engine
Print Contrast 15% minimun reflective difference
Minimum Resolution Typical 3 mil (code 39, PCS 0.9)
Working Distance Up to 19 inches on 100% UPC/EAN symbols
Up to 27 inches on 20 mil Code 39
Light Source 630nm visible red LED
Scan Rate Dynamic scanning rate up to 500 scans per second
Reading Direction Bi-directional (forward and backward)
Pitch/Skew ± 65°/ ± 65°
Operating Modes Toggle, Trigger, Force, Level, Flash, Diagnostic Alternative, Low power, Presentation
Host Interfaces PC/AT, PS/2 (DOS V) keyboard wedge
PC/AT, PS/2 (DOS V) keyboard direct link
TTL RS232 serial
USB HID (USB Keyboard)
USB COM port emulation
Laser emulation and Wand emulation
Configuration Setup Bar code command
Windows utility - FuzzyScan PowerTool
Data Editing Condensed DataWizard via bar code command
Full-feature DataWizard via FuzzyScan PowerTool
User Interfaces 3 LEDs for power, good read and status indications
Programmable beeper
Optional vibrator
Supported Symbologies
1D Linear (F680) Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic
Code 128, GS1 128, Codabar, Code 11, Code 93
Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5
German Postal Code, China Postal Code, IATA
UPC/EAN/JAN, UPC/EAN/JAN with Addendum
Telepen, MSI/Plessey & UK/Plessey
GS1 DataBar (formly RSS) Linear, Linear-stacked
Linear-stacked (F688) PDF417, Micro PDF417, Codablock, Composite
User Environment
Drop Specifications Withstand 50 drops at 5.2ft / 1.6m to concrete
Withstand 10 drops at 6.0ft / 1.8m to concrete
Environmental Sealing IP41
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5% to 95% related humidity, non-condensing
Ambient Light Immunity 0 ~ 100,000 lux
ESD Protection Functional after 15kV discharge
Physical Characteristics
Dimension 97.0 mm (L) x 65.0 mm (W) x 156 mm (D)
3.81 in. (L) x 2.55 in. (W) x 6.14 in. (D)
Weight 125g (without cable)
Color Light Gray or Black
Input Voltage 5VDC ± 10%
Power Consumption Operating : Typical 180 mA @5VDC
Standby : Typical 80 mA @5VDC
Safety & Regulatory
EMC CE,FCC,BSMI,C-Tick,KC,VCCI
Safety LED Eye Safety IEC62471, Exempt Group
Environmental Compliant with RoHS directive
Accessories
Cables PS/2 (DOS V) Keyboard Wedge Cable
RS232 Serial Cable
USB Cable
USB Power Steal Cable
Others Hand-free SmartStand
Universal Holder
