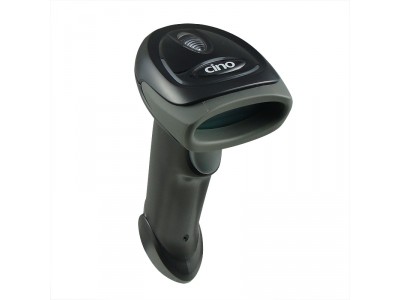

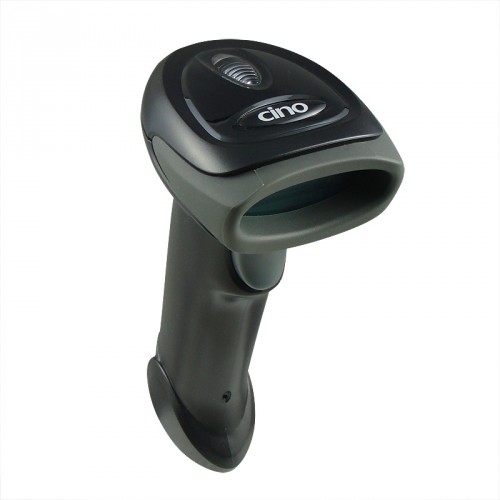

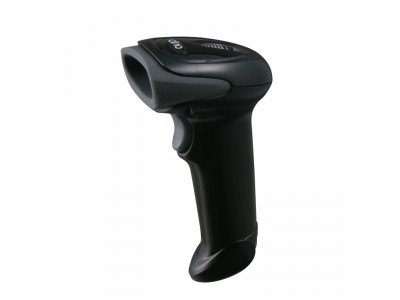

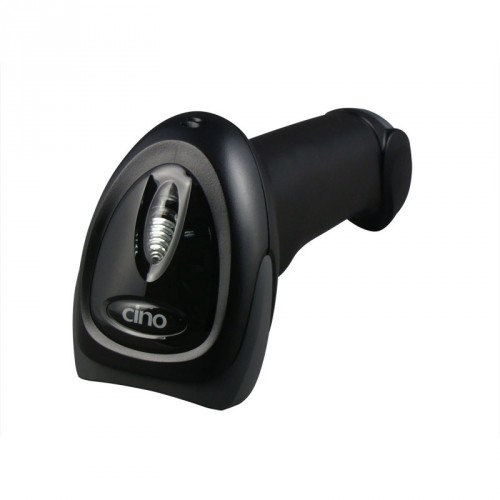

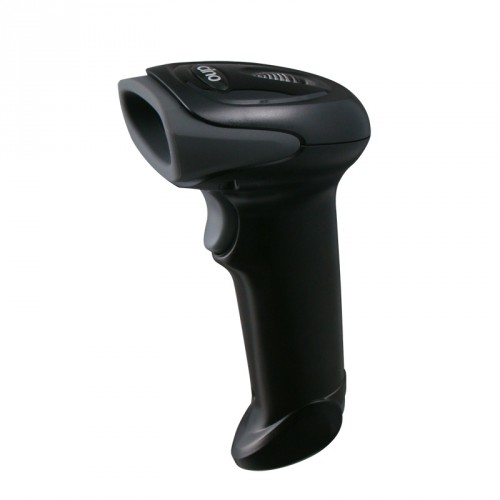

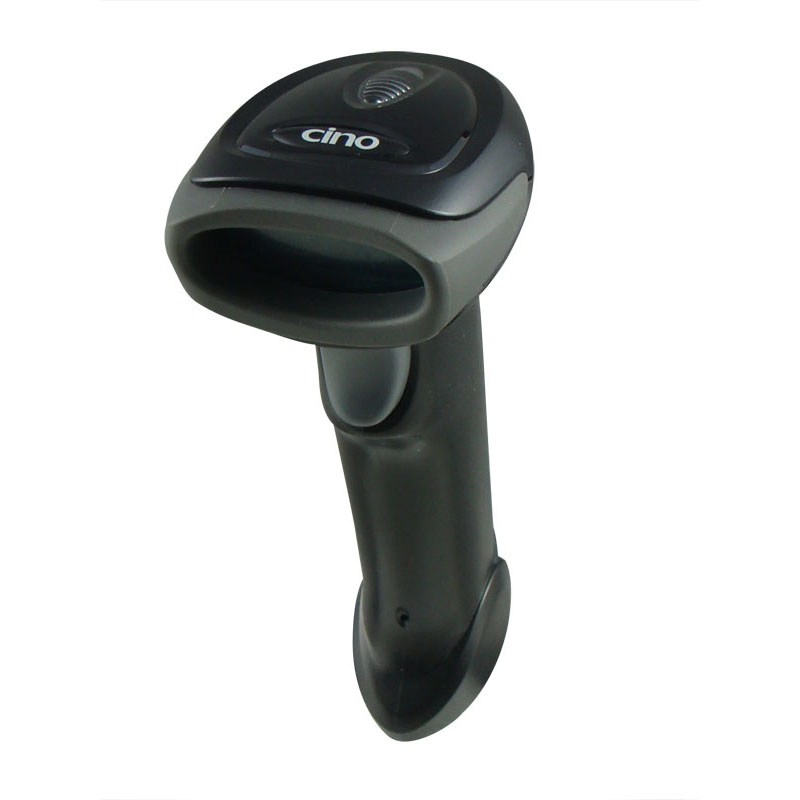

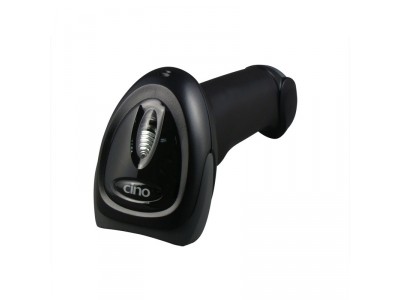

Cino FuzzyScan F680 (LTC-GPHS68001000K21)
FuzzyScan F680 Linear-Imaging Scanner (1D, USB Kit, Black)by Cino
•Part #: LTC-GPHS68001000K21
View Detailed Description
MSRP: $102.00
$96.90
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The F680 is a compact and durable linear barcode scanner built with cutting-edge FuzzyScan 3.0 imaging technology. It is a best in class scanner at an affordable price. The combination of a compact durable form-factor and superior reading performance makes it an ideal solution for retail and commercial applications.
Outstanding Performance
With FuzzyScan 3.0 Imaging Technology, the F680 series quickly reads the low contrast, damaged, smudged and poorly-printed barcodes commonly found in the real world.
Stacked Linear Barcode Support
This scanner supports the most commonly used stacked linear barcodes, including PDF, MicroPDF, Codablock, GS1 DataBar and Composite.
Features
- GS1 DataBar, PDF, MicroPDF and composite code support
- Outstanding reading capability on 3 mil barcode with more than 3” depth of field
- Can scan at distanes of up to 19“ on 100% UPC/EAN symbols
- Provides a read range of up to 27” on general barcodes
- Unsurpassed readability on low contrast, soiled, poorly-printed or damaged barcodes
- Superior motion tolerance for rapid and accurate data-capture on the move
- High speed scanning rate of up to 500 scans per second
- All-in-one host interface design,including USB HID, USB COM,PS/2 keyboard wedge and RS232

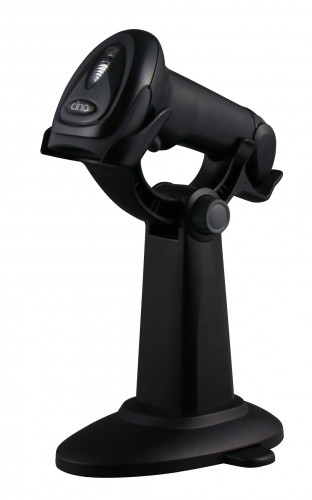

- Automatically switch between presentation scanning and hand-held scanning using the smartstand
- In addition to beeping there is an option for the scanner to vibrate
What's in the Box
- Scanner
- Quick Start Guide

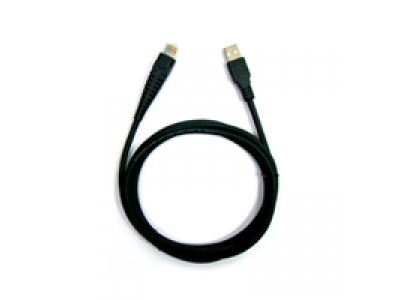

- Interface cable
| Optical System | High performance Linear Imaging Engine |
|---|---|
| Print Contrast | 15% minimun reflective difference |
| Minimum Resolution | Typical 3 mil (code 39, PCS 0.9) |
| Working Distance | Up to 19 inches on 100% UPC/EAN symbols Up to 27 inches on 20 mil Code 39 |
| Light Source | 630nm visible red LED |
| Scan Rate | Dynamic scanning rate up to 500 scans per second |
| Reading Direction | Bi-directional (forward and backward) |
| Pitch/Skew | ± 65°/ ± 65° |
| Operating Modes | Toggle, Trigger, Force, Level, Flash, Diagnostic Alternative, Low power, Presentation |
| Host Interfaces | PC/AT, PS/2 (DOS V) keyboard wedge PC/AT, PS/2 (DOS V) keyboard direct link TTL RS232 serial USB HID (USB Keyboard) USB COM port emulation Laser emulation and Wand emulation |
| Configuration Setup | Bar code command Windows utility - FuzzyScan PowerTool |
| Data Editing | Condensed DataWizard via bar code command Full-feature DataWizard via FuzzyScan PowerTool |
| User Interfaces | 3 LEDs for power, good read and status indications Programmable beeper Optional vibrator |
| 1D Linear (F680) | Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic Code 128, GS1 128, Codabar, Code 11, Code 93 Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5 German Postal Code, China Postal Code, IATA UPC/EAN/JAN, UPC/EAN/JAN with Addendum Telepen, MSI/Plessey & UK/Plessey GS1 DataBar (formly RSS) Linear, Linear-stacked |
|---|---|
| Linear-stacked (F688) | PDF417, Micro PDF417, Codablock, Composite |
| Drop Specifications | Withstand 50 drops at 5.2ft / 1.6m to concrete Withstand 10 drops at 6.0ft / 1.8m to concrete |
|---|---|
| Environmental Sealing | IP41 |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% to 95% related humidity, non-condensing |
| Ambient Light Immunity | 0 ~ 100,000 lux |
| ESD Protection | Functional after 15kV discharge |
| Dimension | 97.0 mm (L) x 65.0 mm (W) x 156 mm (D) 3.81 in. (L) x 2.55 in. (W) x 6.14 in. (D) |
|---|---|
| Weight | 125g (without cable) |
| Color | Light Gray or Black |
| Input Voltage | 5VDC ± 10% |
| Power Consumption | Operating : Typical 180 mA @5VDC Standby : Typical 80 mA @5VDC |
| EMC | CE,FCC,BSMI,C-Tick,KC,VCCI |
|---|---|
| Safety | LED Eye Safety IEC62471, Exempt Group |
| Environmental | Compliant with RoHS directive |
| Cables | PS/2 (DOS V) Keyboard Wedge Cable RS232 Serial Cable USB Cable USB Power Steal Cable |
|---|---|
| Others | Hand-free SmartStand Universal Holder |
