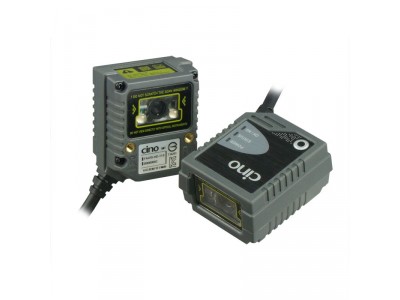

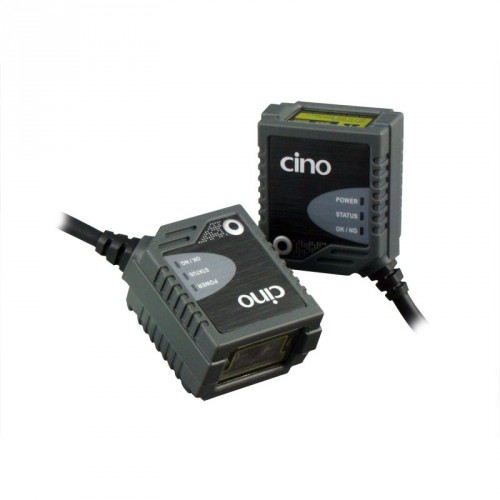

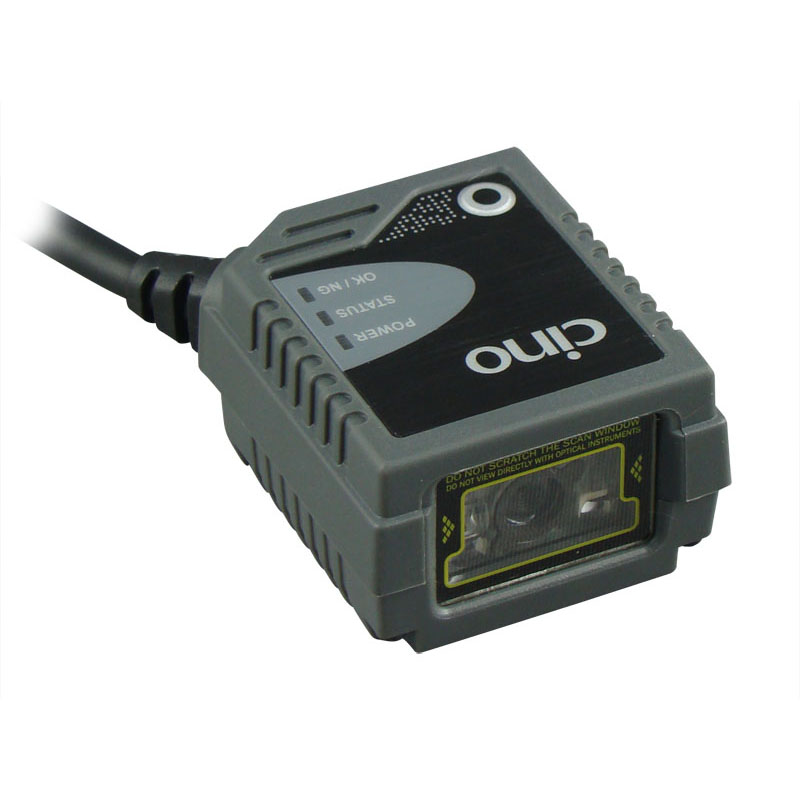

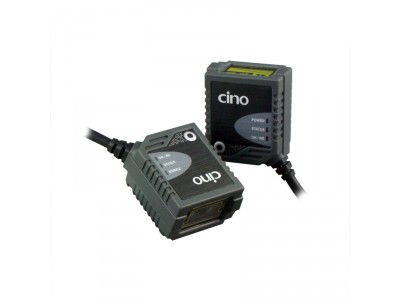

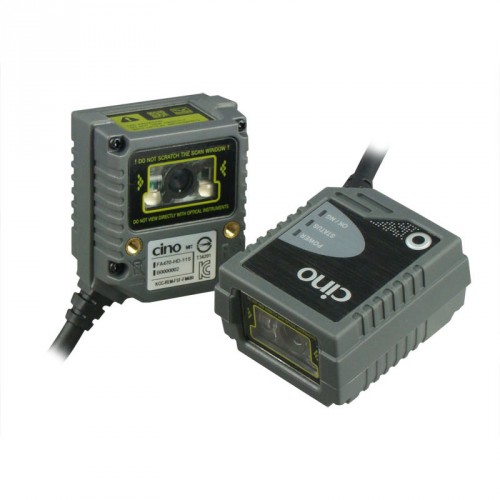

CINO FA470-HD Series (LTC-GPFSA470198FK11)
CINO FA470 Universal Interface, Front-View Fixed Mount 2D High Density Barcode Imager. (Supports USB, RS232 and external trigger)by Cino
•Part #: LTC-GPFSA470198FK11
View Detailed Description
MSRP: $255.00
$242.25
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Equipped with a small 2D barcode imaging engine the FA470 is designed for OEM applications. It is IP54 ultra-compact, durable, over-molded deisgn, high performance low cost 2d imager.
The CINO FA470 series fixed mount scanner comes with FuzzyScan Imaging Technology 3.0 for outstanding scanning performance, functionality and reliability. The FA470 Area Imaging fixed mount scanner delivers a superior cost-performance solution to help enterprises increasing their efficiency and productivity. Size of a product plays a very important role in OEM system integration and space-constrained environments, the FA470 is a small OEM 2D imaging scanner.
Features
- Small and easy to mount
- Multiple triggering methods
- IP54 durable over-molded construction
- Flexible user-defined serial trigger command supported
- Support RS232, USB HID, USB COM host interfaces
- Support serial command trigger and external trigger
- Universal model supports OK and NG output signals for control
- Read most of popular 1D, stacked and 2D bar codes
- Superior readability on most of real world bar codes
- High-density and standard range model are available
- Choice of Front-view or side-view version
What's in the Box
- Scanner
| Scan Pattern | Area Image |
|---|---|
| Print Contrast | 20% minimum reflective difference |
| Light Source | Aiming Pattern : 630nm LED Illumination : 630nm LED |
| Min. Resolution | SR Model 4 mil Code 39 7 mil DM HD Model 3 mil Code 39 5 mil DM |
| Roll, Pitch, Skew | Roll: 360°; Pitch: ± 75°; Skew: ± 65° |
| Motion Tolerance | Up to 25 inch/63.5 cm per second |
| Reading Range |
SR Model
5 mil (0.13mm) C39
13 mil (0.33mm) UPC/EAN 10 mil (0.25mm) 5.7-16.7(2.24"-6.57")
4.7-39.7(1.85"-15.63") 4.7-17.2(1.85"-6.77") HD Model
3 mil (0.07mm) C39
5 mil (0.13mm) C39 13 mil (0.33mm) UPC/EAN 5 mil (0.13mm) DM 10 mil (0.25mm) QR 4.7-9.7(1.85"-3.82")
4.7-12.7(1.85"-5.0") 4.2-18.2(1.65"-7.17") 5.2-10.7(2.05"-4.21") 5.2-9.7(2.05"-3.82") |
| Operating Modes | Trigger, Alternative, Level, Force, Presentat |
| Host Interfaces | RS232 serial USB HID (USB Keyboard) USB COM port emulation |
| User Interfaces | 3 LEDs for power, Status, OK/NG indications Test button Programmable beeper |
| Configuration Setup | Bar code command, Serial command Windows utility - FuzzyScan PowerTool |
| Data Editing | Condensed DataWizard via bar code command Full-feature DataWizard via FuzzyScan PowerTool DataWizard Premium via FuzzyScan PowerTool |
| Image Capture | Graphic Format : BMP |
| 1D Linear Codes | Code 39, Code 39 Full ASCII, Code 32, Code 128, GS1-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey , GS1 DataBar, Linear & Linear Stacked |
|---|---|
| 2D Codes | PDF417, Micro PDF417, Codablock F, Code 16K, Code 49, Composite Codes, DataMatrix, MaxiCode, QR Code, Aztec, MicroQR |
| Postal Codes | Australian Post, US Planet, US Postnet, Japan Post Dutch KIX code, Intelligent Mail, British Post |
| Dimension | 47.6 mm (L) x 40.6 mm (W) x 25.6 mm (H) |
|---|---|
| Weight | 101g |
| Scan Window | Choice of front-view or side-view model |
| Connector | 9-pin D-sub female (RS232 version) USB 4-pin Type A (USB version) 15-pin D-sub HD female (Universal version) |
| Input Voltage | 5VDC ± 10% |
| Current | Operating : Typical 285 mA @5VDC Standby : Typical 160 mA @5VDC |
| Drop Specifications | Withstand multiple 1.5m/5ft. drops to concrete |
|---|---|
| Environmental Sealing | IP54 |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% to 95% related humidity, non-condensing |
| Ambient Light Immunity | 0 ~ 100,000 lux |
| ESD Protection | Functional after 15kV discharge |
| Cables | USB Power Steal Cable |
|---|---|
| Others | 5VDC Power Suply Unit |
