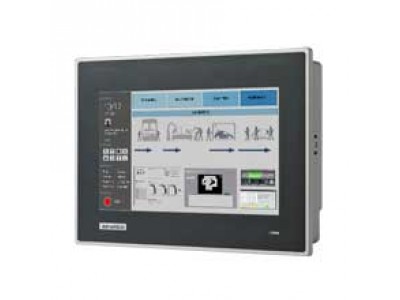

7" WQVGA Operator Panel with WebOP Designer Software -Wide Temp (WOP-3070T-C4AE)
by Advantech
•Part #: WOP-3070T-C4AE
View Detailed Description
$695.00
With brand-new ID design, the WebOP-3070T provides stringent standards required in the automation market. Advantech offers the WebOP-3070T with Cortex™-A8 processor which consumes minimum power without sacrificing performance. The WebOP-3070T supports a variety of LCD sizes from 4.3” to 15” for different applications involving the use of PLCs, motion/thermal controllers, inverters and sensors. It’s also provided with a wide operating temperature range to fulfill the requirements of harsh environments. The built-in Microsoft® WinCE 6.0 OS platform which bundles WebOP Designer lets the WebOP-3070T becomes a control HMI solution for flexible system integration.
- RISC 32 bits TI ARM® Cortex™-A8 processor
- 7" WQVGA TFT LCD touchscreen with 800 x 480 Resolution
- Full line LED BL TFT LCD with 50K life time
- Embedded Microsoft® WinCE 6.0 OS
- Bundled with WebOP Designer HMI Runtime development tool
- -20°C ~ 60°C wide operating temperature range
- Support CANopen library, RS-422/RS-485/CAN terminal I/O ports support Termination Resistor 120Ω & isolation protection
- Front panel IP66 compliant, Die-cast aluminum alloy front bezel
| Communications | CAN | Terminal Plug 2-Pin |
| COM1 | RS-232/422/485 (DB9 Male) | |
| COM2 | RS-422/485 (Terminal Plug 4-Pin) | |
| COM3 | RS-485 (Terminal Plug 2-Pin) | |
| Ethernet | 10/100-BaseT | |
| Display | Size | 7" |
| Environment | Humidity (Operating) | 10 ~ 90% RH @ 40°C, non-condensing |
| Ingress Protection | Front panel: IP66 | |
| Temperature (Operating) | -20 ~ 60°C (-4 ~ 140°F) | |
| Temperature (Storage) | -30 ~ 70°C (-22 ~ 158°F) | |
| Vibration Protection | Operating, radom vibration 1 Grms (5 ~ 500 Hz) | |
| General | Certifications | BSMI, CCC, CE, FCC Class A, UL |
| Cut-out Dimensions | 192 x 138.5 mm (7.56" x 5.45") | |
| Dimensions | 203.4 x 150 x 43.7 mm (8.01" x 5.91" x 1.72") | |
| Enclosure Housing | PC + ABS | |
| Mounting | Panel | |
| OS Support | Microsoft® Windows CE 6.0 | |
| Power Consumption | 7W (Typical) | |
| Power Input | 24VDC ±10% | |
| Weight (Net) | 1 Kg (2.20 lbs) | |
| LCD Display | Backlight Life | LED, 50,000 |
| Contrast Ratio | 700:1 | |
| Dimming | Adjustable by touch panel | |
| Display Type | WVGA TFT LCD | |
| Luminance (cd/m2) | 500 | |
| Max. Colors | 64K | |
| Max. Resolution | 800 x 480 | |
| Viewing Angle (H/V°) | 140/120 | |
| System Hardware | Battery Backup Memory | FRAM 128KB |
| CPU | RISC 32 bits, 600 MHz (ARM® Cortex™-A8) | |
| Flash Memory | DDR2 256MB on board | |
| Power-On LED | Yes | |
| Storage | 512MB on board SLC type | |
| Touchscreen | Lifespan | 36 million touches at 8mm-diameter finger point |
| Light Transmission | Transmission Above 80% | |
| Resolution | Linearity | |
| Touch Type | 5-wire, analog resistive |
