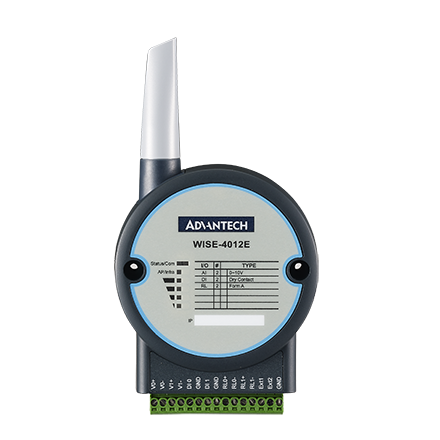

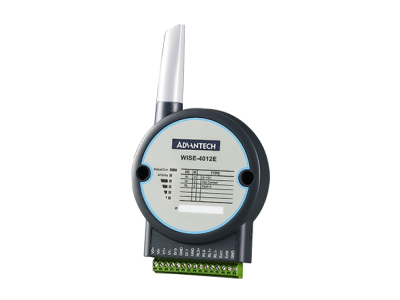

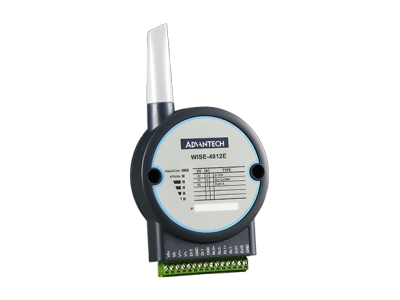

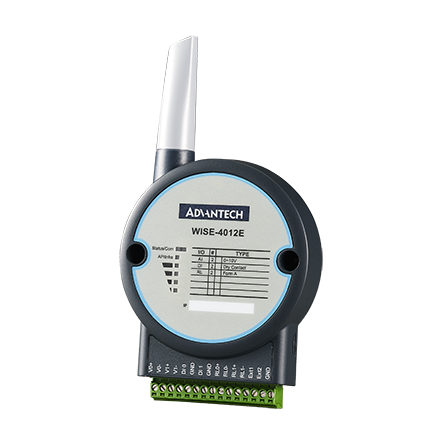

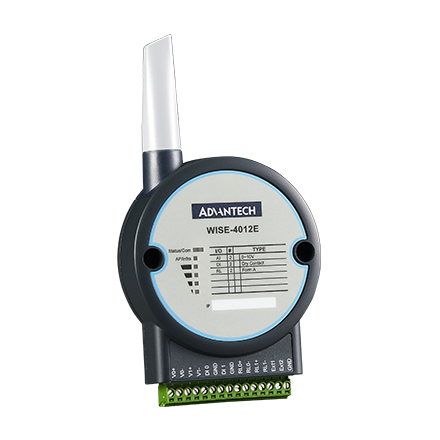

WISE-4012E IoT Developer Kit with WebAccess (WISE-4012E-AE-WA)
by Advantech
•Part #: WISE-4012E-AE-WA
View Detailed Description
$150.00
The Advantech WISE IoT Developer Kit is a complete hardware & software solution to help users develop IoT applications and simulate their projects in the simplest way. The WISE IoT Developer Kit provides everything you need to get going: a WISE-4012E 6-ch universal input or output wireless Ethernet I/O module, and developer kit including: WebAccess 8.0 with open interfaces for intelligent application developer, extension board for simulating sensor status, a micro USB cable for power input, and a screwdriver for wiring. The WISE-4012E has an integrated Wi-Fi interface with AP mode and web configuration which can be accessed by mobile device directly. Data can be logged in the I/O module and then automatically pushed to the file-based cloud.
- 2.4 GHz IEEE 802.11b/g/n WLAN
- 2-ch 0~10V Input, 2-ch DI, and 2-ch Relay Output
- Includes WebAccess with demo project for developer
- Includes extension board for simulating sensor status
- Includes micro USB cable for power input
- Supports Modbus/TCP with RESTful web service
- Supports wireless client and server mode that can be accessed directly without AP or router
- Supports mobile device web configuration with HTML5 without the platform limitation
- Supports file-based cloud storage and local logging with time stamp
| Analog Input | Accuracy | ±0.1 VDC |
| Channels | 2-ch (Differential) | |
| Input Impedance | 100 kΩ | |
| Input Range | 0~10V | |
| Input Type | V | |
| Sampling Rates | 10 Hz (Total) | |
| Resolution | 12-bit | |
| Digital Input | Channels | 2-ch Dry Contact |
| Counter Input | 3kHz (32 bit + 1 bit overflow) | |
| Frequency Input | 0.1 ~ 3kHz | |
| Inverted DI Status | Support | |
| Keep/Discard Counter Value when power off | Support | |
| Logic Level | Dry Contact: Logic 0: Open, Logic 1: Close to GND | |
| Digital Output | Channels | 2-ch Relay |
| Insulation Resistance | 1 GΩ min. @ 500 VDC | |
| Isolation | 1,500 Vrms | |
| Output Rating (Resistive Load) | 120 VAC @ 0.5 A, 30 VDC @ 1A | |
| Pulse Output | 60 operations/minute | |
| Relay Off Time (Typ.) | 10 ms | |
| Relay On Time (Typ.) | 7 ms | |
| Environment | Operating Humidity | 20 ~ 95% RH (non-condensing) |
| Operating Temperature | -25 ~ 70°C (-13~158°F) | |
| Storage Humidity | 0 ~ 95% RH (non-condensing) | |
| Storage Temperature | -40 ~ 85°C (-40~185°F) | |
| General | Connectors | I/O: Terminal block; Power: Micro USB |
| Certifications | CE, FCC, R&TTE, NCC, SRRC, RoHS | |
| Data Logger | Up to 10000 samples with RTC time stamp | |
| Dimensions (W x H x D) | 80 x 148 x 25 mm | |
| Enclosure | PC | |
| LED Indicators | Status, Communication, Network Mode, Quality | |
| Mounting | DIN 35 rail, wall, and stack | |
| Protocol | Modbus/TCP, TCP/IP, UDP, HTTP, DHCP | |
| Real-time Clock | Yes | |
| Watchdog Timer | System (1.6 second) & Communication (programmable) | |
| Web Server | RESTful Web API in JSON format, HTML5 Configuration Interface with JavaScript & CSS3 | |
| Power | Input Range | Micro USB 5 VDC |
| Power Consumption | 1.5 W @ 5 VDC | |
| Wireless Interface | Antenna Connector | Reverse SMA |
| Frequency Band | 2.4GHz | |
| IEEE Standard | IEEE 802.11b/g/n | |
| Network Mode | Infrastructure, Limited AP | |
| Outdoor Range | 110m (L.O.S.) | |
| Security | WPA2 Personal & Enterprise |
