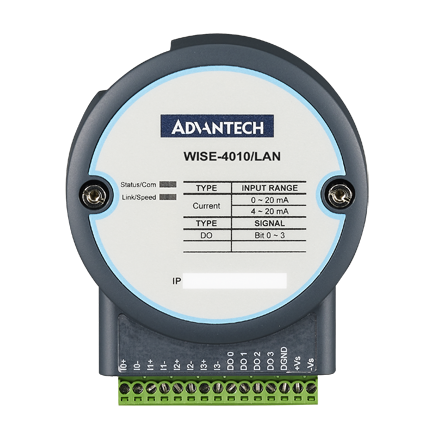

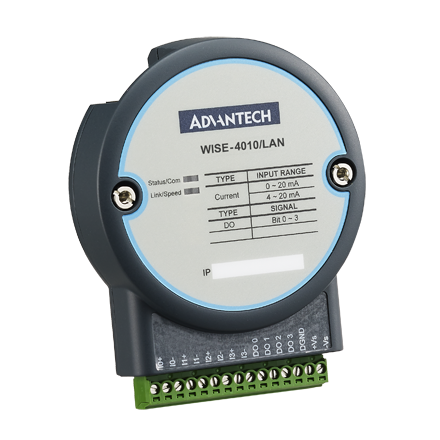

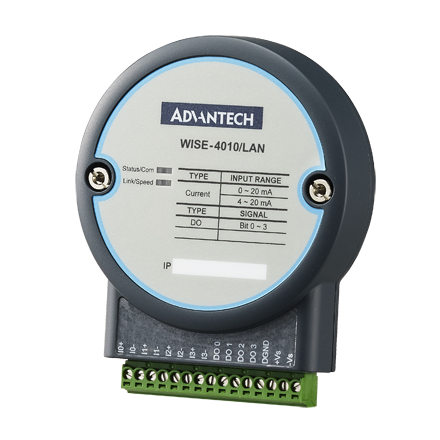

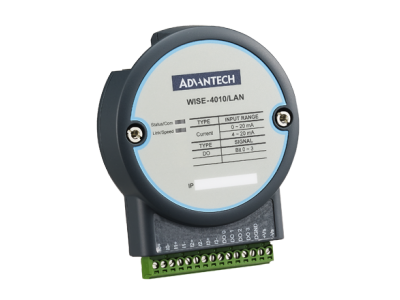

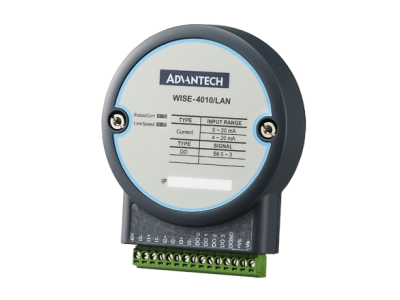

4-ch Current Input 4-ch DO IoT Eth. I/O Module (WISE-4010/LAN-AE)
by Advantech
•Part #: WISE-4010/LAN-AE
View Detailed Description
$150.00
The WISE-4000/LAN series is a newly designed IoT Ethernet I/O module which supports new RESTful web API for IoT applications. A HTML5 web configure interface enables users to configure WISE modules without the limitation of a platform or operation system. The built-in data logger function logs data with time information, then be retrieved in a bundle. Wide operating temperatures enable the WISE series to be implemented in more IoT data acquisition applications. As well as the new functions, the new mechanical design can let users install the module and doing diagnostics in an easier manner than before.
- IEEE 802.3u 10/100Base-T(X)
- Industrial grade operating temperature -40~70°C
- Supported Protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP
- Supports RESTful web API in JSON format
- Supports local logging with RTC time stamp
- Supports mobile device web configuration in HTML5
- Supports 10~30VDC power with reverse protection
| Current Input | Accuracy | ±0.2% of FSR @ 25°C |
| Burn-out Detection | Yes (4~20 mA only) | |
| Channel | 4 (differential) | |
| Input Impedance | 120 Ω | |
| Input Range | 0~20 mA, 4~20 mA | |
| Resolution | 12-bit | |
| Sampling Rate | 10/100 Hz/channel | |
| Digital Output | Channels | 4 Open collector to 30 V, 500 mA max. for resistance load |
| Dimensions | Dimensions | 80 x 89 x 25 mm |
| Environment | Operating Humidity | 20 ~ 95% RH (non-condensing) |
| Operating Temperature | -40 ~ 70°C (-40~158°F) | |
| Storage Humidity | 0 ~ 95% (non-condensing) | |
| Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) | |
| General | Certifications | CE, FCC, RoHS |
| Connectors | Plug-in screw terminal block (I/O and power) | |
| Data Log | Up to 10000 samples with time stamp | |
| Enclosure | PC | |
| LAN | IEEE 802.3u 10/100Base-T(X) | |
| Mounting | DIN 35 rail, Wall, Stack | |
| Power Input | 10 ~ 30 VDC | |
| Protocol | Modbus/TCP, TCP/IP, UDP, HTTP, DHCP | |
| Watchdog Timer | System (1.6 second) & Communication (programmable) | |
| Web API | RESTful in JSON format | |
| Web Server | HTML5 with JavaScript & CSS3 |
