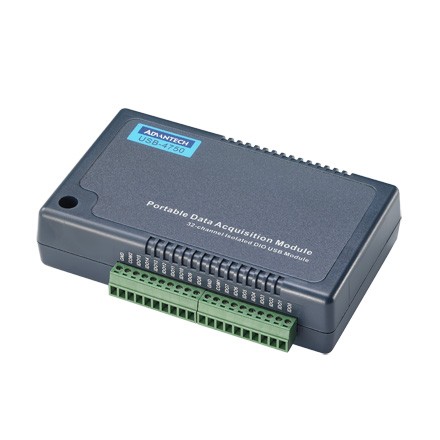

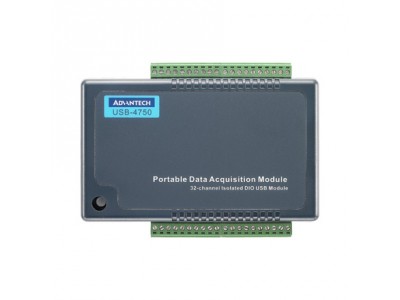

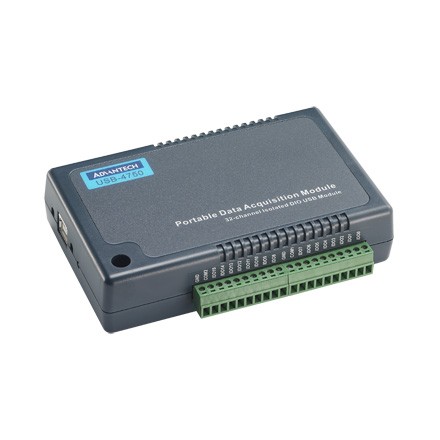

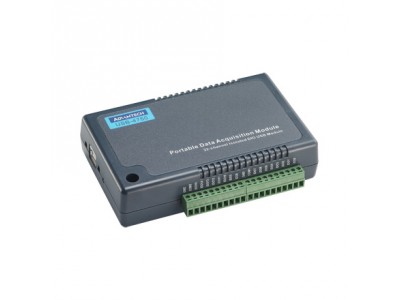

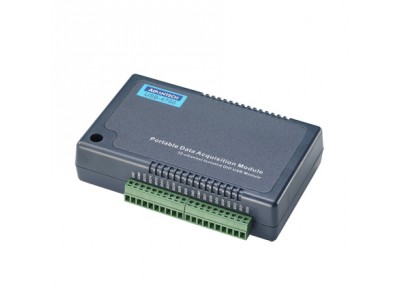

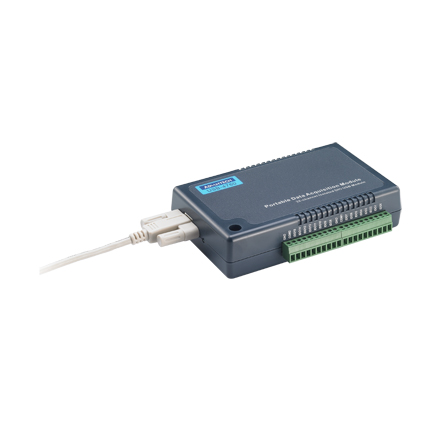

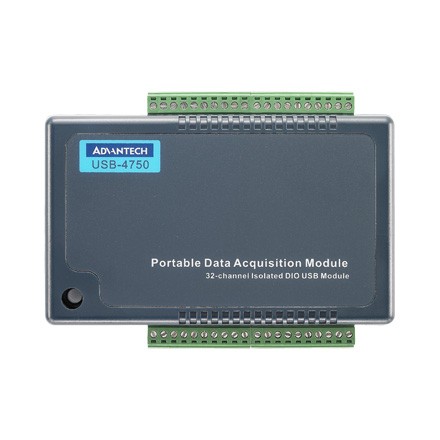

32-Channel Isolated Digital I/O USB Data Acquisition Module (USB-4750-AE)
by Advantech
•Part #: USB-4750-AE
View Detailed Description
$245.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The USB-4700 series consists of true plug & play data acquisition devices. No more opening up your computer chassis to install boards-just plug in the module, then get the data. It’s easy and efficient. USB-4750 is a 32-channel isolated digital I/O module. With isolation protection of 2,500 VDC, and dry contact support, USB-4750 is ideal for industrial applications where high-voltage protection is required. Each I/O channel of the USB-4750 corresponds to a bit in an I/O port. This makes USB-4750 very easy to program. This module also offers a counter or timer and one digital input interrupt lines to a PC. So users can then easily do configurations by software. Reliable and rugged enough for industrial applications, yet inexpensive enough for home projects, the USB-4750 is the perfect way to add measurement and control capability to any USB capable computer. The USB-4750 is fully USB plug & play and easy to use. It obtains all required power from the USB port, so no external power connection is ever required.
- Compatible with USB 1.1/2.0 & Bus-powered
- 16 isolated DI and 16 isolated DO channels
- High voltage isolation on all channels (2500 VDC)
- High sink current on isolated output channels (100 mA/Channels)
- Supports 5 ~ 50 VDC isolated input channels
- Interrupt handling, Timer/Counter capability
- Suitable for DIN-rail mounting
- One lockable USB cable for secure connection included
General | Power Consumption | Typical: 5V @ 200 mA; Max.: 5V @ 350 mA |
I/O Connectors | Onboard screw terminal | |
Bus | USB 1.1/2.0 | |
Dimensions | 132 x 80 x 32 mm (5.2" x 3.15" x 1.26") | |
Isolated Digital I/O | Input Channels | 16 |
Input Range | 5 ~ 60 VDC | |
Output Channels | 16 | |
Output Ranges | 5 ~ 40 VDC | |
Timer/Counter | Resolution | 32 bits |
Time Base | 20MHz | |
Channels | 2 |
Be the first to review this product!
