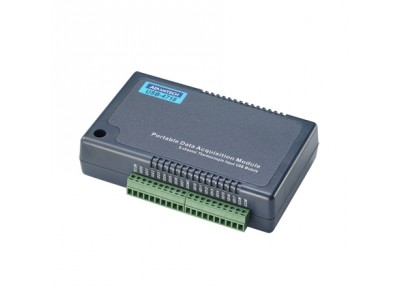

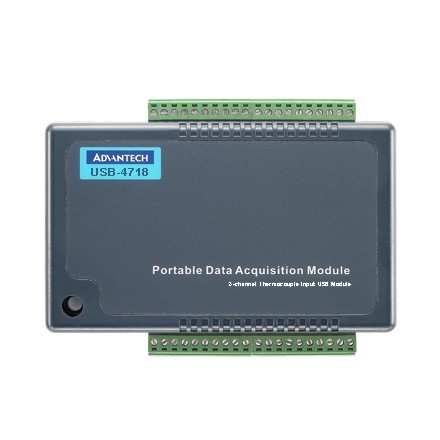

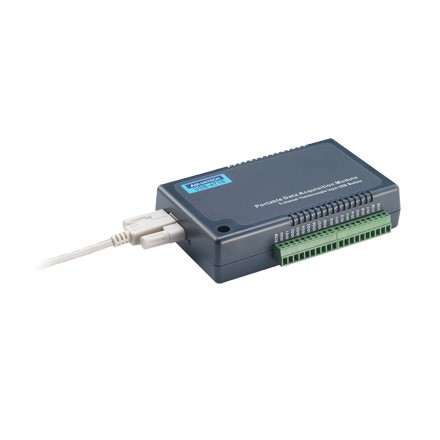

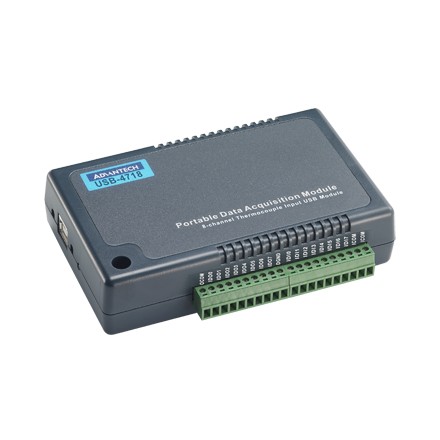

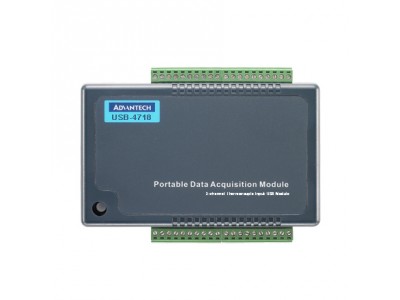

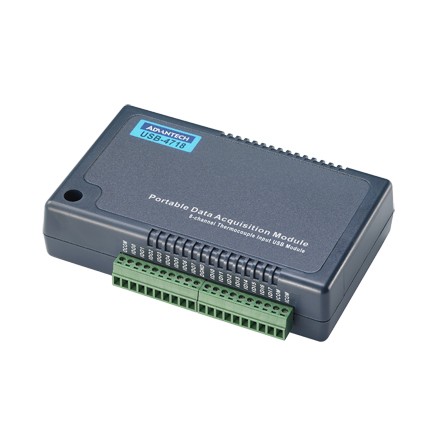

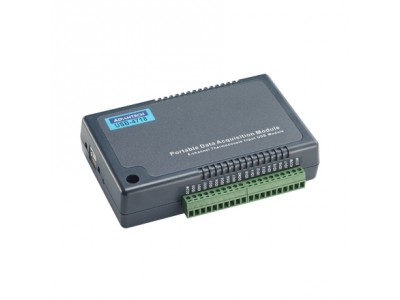

8-Channel Thermocouple Input USB Data Acquisition Module with 8-Channel Isolated Digital Input (USB-4718-AE)
by Advantech
•Part #: USB-4718-AE
View Detailed Description
$325.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The USB-4700 series consists of true plug & play data acquisition devices. No more opening up your computer chassis to install boards-just plug in the module, then get the data. It’s easy and efficient. USB-4718 offers 8 thermocouple inputs with 16-bit resolution, up to 0.1% input range accuracy. Portable design makes the USB-4718 suitable for the field research. Also the input channels can be set separately make it possible handling multiple types of sensor with only one USB-4718 module. Reliable and rugged enough for industrial applications, yet inexpensive enough for home projects, the USB-4718 is the perfect way to add measurement and control capability to any USB capable computer. The USB-4700 series is fully plug and play and easy to use. It obtains all required power from the USB port, so no external power connection is ever required.
- This product teams perfectly with our FREE Datalogger Software Kit
- Supports USB 2.0, voltage, current, and thermocouple inputs
- Bus-powered
- 8 thermocouple input channels
- 2,500 VDC isolation
- Supports 4 ~ 20 mA current input
- Wiring terminal on modules
- 8-ch isolated DI and 8-ch isolated DO
- Suitable for DIN-rail mounting
Analog Input | Sampling Rates(S/s) | 10 |
Resolution(Bits) | 16 | |
Unipolar Input (V) | J, K, T, E, R, S, B types Thermocouple. 0 ~ 2.5V, 0 ~ 1V, 0 ~500mV, 0 ~ 100mV, 0~50mV,0~15mV,0~20mA,4~20mA | |
Channels | 8 | |
Type | Scan | |
General | Power Consumption | 5V @ 100 mA |
I/O Connectors | Onboard screw terminal | |
Bus | USB 2.0 | |
Dimensions | 132 x 80 x 32 mm (5.2" x 3.15" x 1.26") | |
Operating Temperature | 0~60 (32~140°F) | |
OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt | |
Isolated Digital I/O | Input Channels | 8 |
Input Range | 0~30V | |
Output Channels | 8 | |
Output Ranges | 5~30V |
