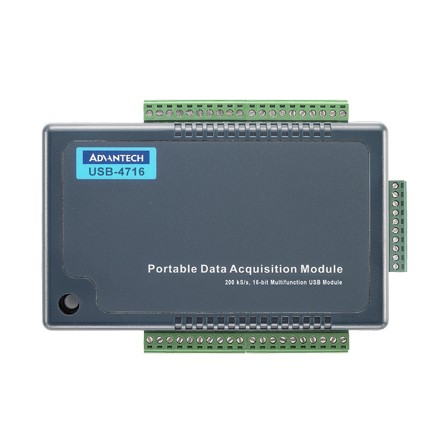

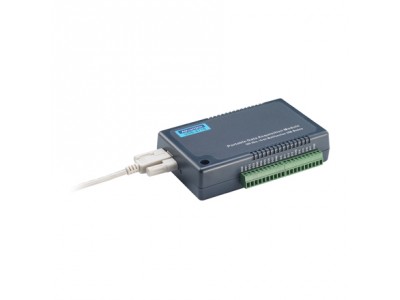

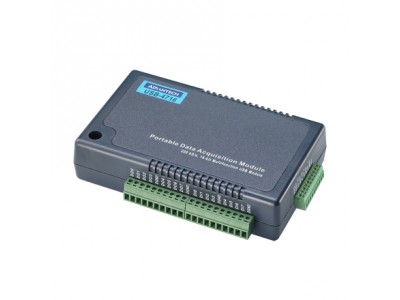

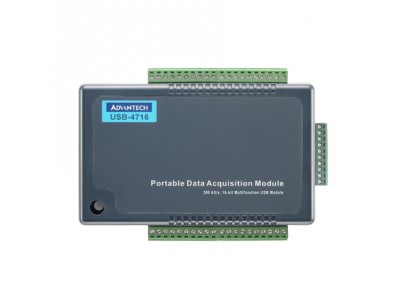

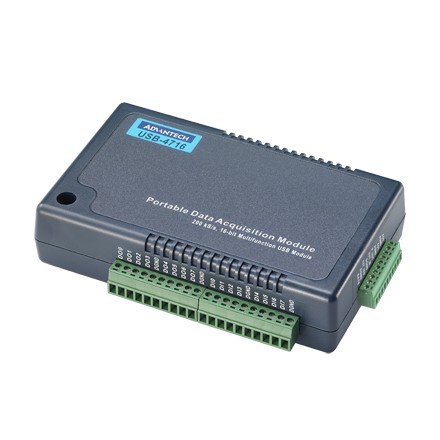

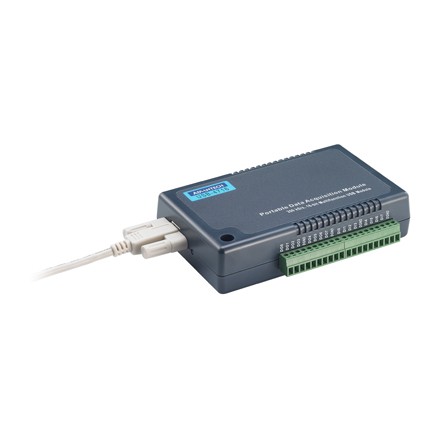

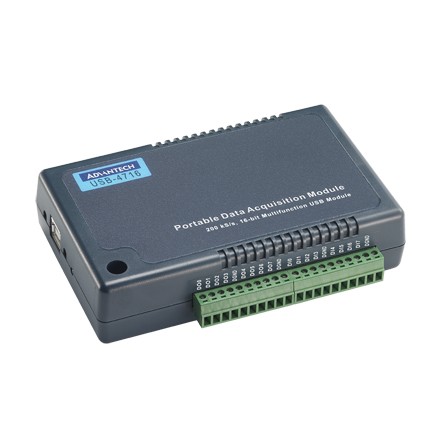

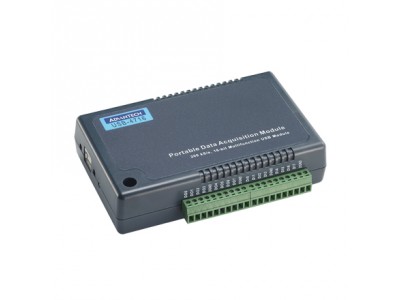

16-Channel Multifunction USB Data Acquisition Module, 200 kS/s, 16-bit (USB-4716-AE)

by Advantech

Part #: USB-4716-AE


View Detailed Description

$630.00

Call for Availability

The USB-4700 series consists of true plug & play data acquisition devices. No more opening up your computer chassis to install boards-just plug in the module, then get the data. It’s easy and efficient. USB-4716 offers 16 single-ended/ 8 differential inputs with 16-bit resolution, up to 200 kS/s throughput, 16 digital I/O lines and 1 user counter, add two 16-bit analog outputs. The high performance makes USB-4716 your best choice for test & measurement applications in the production line or in the lab. Reliable and rugged enough for industrial applications, yet inexpensive enough for home projects, the USB-4716 is the perfect way to add measurement and control capability to any USB capable computer. The USB-4700 series is fully plug & play and easy to use. It obtains all required power from the USB port, so no external power connection is ever required.

  • Supports USB 2.0, Portable & Bus-powered
  • 16 analog input channels
  • 16-bit resolution AI
  • Sampling rate up to 200 kS/s
  • 8DI/8DO, 2 AO and 1 32-bit counter
  • Wiring terminal on modules
  • Suitable for DIN-rail mounting
  • One lockable USB cable for secure connection included
Analog InputSampling Rates(S/s)200k
Resolution(Bits)16
Unipolar Input (V)0 ~ 10, 0 ~ 5, 0 ~ 2.5, 0 ~ 1.25
Bipolar Inputs (V)±10, ±5, ±2.5, ±1.25, ±0.625
Channels16
TypeScan
Analog OutputResolution(Bits)16
Channels2
Update Rate(kS/s)Static
GeneralPower ConsumptionTypical: 5 V @ 360 mA; Max.: 5 V @ 450 mA
I/O ConnectorsOnboard screw terminal
BusUSB 2.0
Dimensions132 x 80 x 32 mm (5.2" x 3.15" x 1.26")
Operating Temperature0~60 (32~140°F)
OS Support32-bit/64-bit Windows 7/8/10, and Linux
Programming LanguageC#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt
Timer/CounterResolution32 bits
Max. Input Frequency1kHz
Channels1
TTL DI/O Input Channels8
Output Channels8
