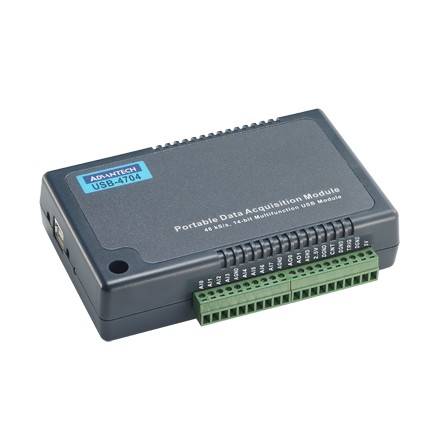

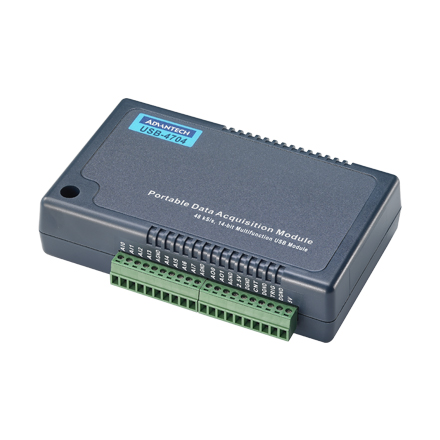

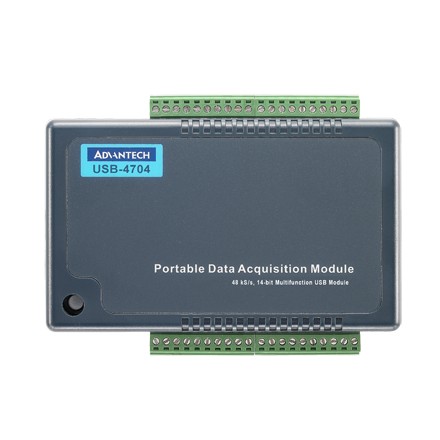

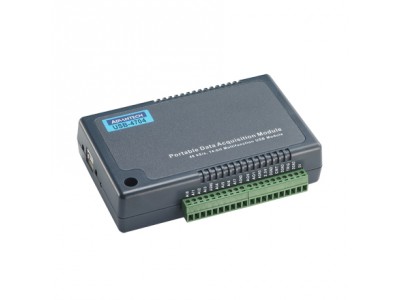

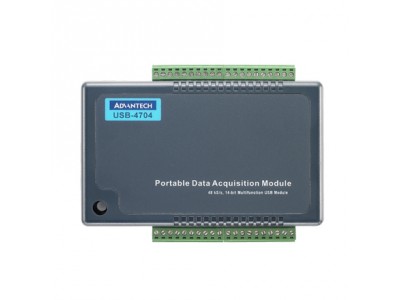

8-Channel Multifunction USB Data Acquisition Module, 48 kS/s, 14-bit (USB-4704-AE)
by Advantech
•Part #: USB-4704-AE
View Detailed Description
$190.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
USB-4704 is a low-cost USB data acquisition module. You no longer need to open the chassis to install DAQ modules. Just plug in the module, then get the data. It’s easy and efficient. Reliable and rugged enough for industrial applications, yet inexpensive enough for home projects, USB-4704 is the perfect way to add measurement and control capability to any USB capable computer. It obtains all required power from the USB port, so no external power connection is ever required. With the features of USB-4704, it is your most cost effective choice of lab or production line test & measurement tool.
- Supports USB 2.0
- Portable & Bus-powered
- 8 analog input channels
- 14-bit resolution AI
- Sampling rate up to 48 kS/s
- 8-ch DI/8-ch DO, 2-ch AO and one 32-bit counter
- Detachable screw terminal on modules
- Suitable for DIN-rail mounting
Analog Input | Sampling Rates(S/s) | 48k |
Resolution(Bits) | 14 | |
Bipolar Inputs (V) | Single-ended: ±10; Differential: ±1, ±1.25, ± 2, ± 2.5, ±4, ±5, ±10, ±20 | |
Channels | 8 | |
Type | Scan | |
Analog Output | Resolution(Bits) | 12 |
Channels | 2 | |
Update Rate(kS/s) | Static | |
General | Power Consumption | Typical: 5V @ 360mA; Max.: 5 V @450 mA |
I/O Connectors | Onboard screw terminal | |
Bus | USB 2.0 | |
Dimensions | 132 x 80 x 32 mm (5.2" x 3.15" x 1.26") | |
Operating Temperature | 0 ~ 55°C (32 ~ 131°F) | |
OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt | |
Timer/Counter | Resolution | 32 bits |
Max. Input Frequency | 5 MHz | |
Channels | 1 | |
TTL DI/O | Input Channels | 8 |
Output Channels | 8 |
