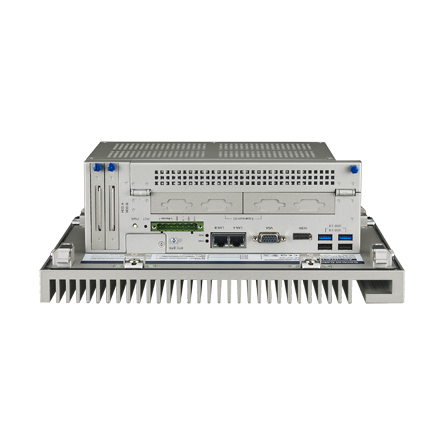

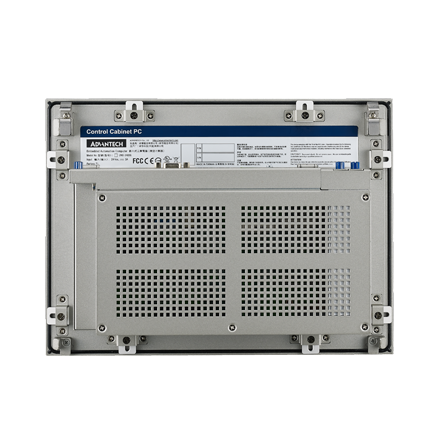

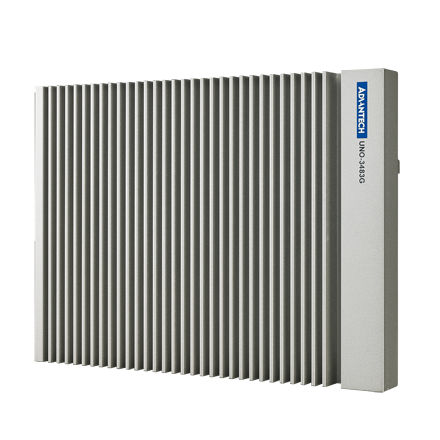

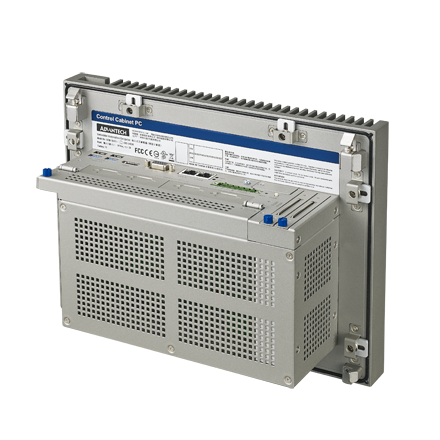

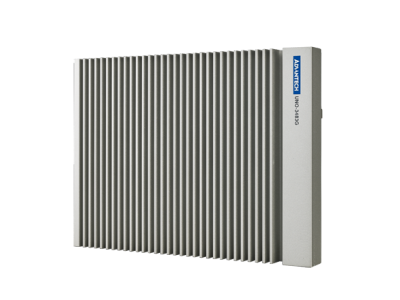

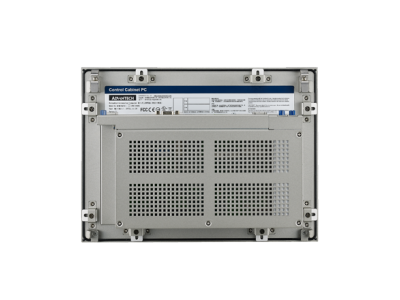

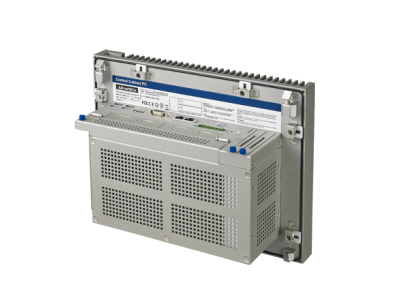

COMPUTER SYSTEM, i7-3612QE, 8G RAM, w/ 1xPCIex4 (UNO-3483G-374AE)
by Advantech
•Part #: UNO-3483G-374AE
View Detailed Description
$2,225.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
- 3rd Generation Intel® Quad Core Processors, up to 2.1 GHz with 8GB DDR3L Memory
- 2 x GbE, 2 x USB 2.0, 2 x USB 3.0, 1 x RS-232, 1 x RS-422/485 (pin header), 1 x VGA, 1 x HDMI
- 1 x PCIex4, 3 x mPCIe (2 x full, 1 x half), 1 x mSATA slot
- Space-saving Compact with Fanless Design
- Thumb screw to easy maintenance
- Hot-Swappable HDD/SSD support for RAID 0/1
- High protection IP67 certification
- Convenient "Place & Click"
- Easily exchangeable RTC battery
- Supports Fieldbus Protocol by iDoor Technology
- 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology
- Supports MRAM by iDoor Technology
- Chassis Grounding Protection
- LAN Redundancy (Teaming)
Environment | Ingress Protection | Integrated seals maintain with IP67 design |
Operating Temperature | - 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow (Industry SSD) | |
Relative Humidity | 10 ~ 95% @ 40°C non-condensing | |
Shock Protection | Operating, IEC 60068-2-27, 50G, half sine, 11ms | |
Storage Temperature | -40 ~ 85°C (-40~185°F) | |
Vibration Protection | Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA) | |
General | Certifications | CE, FCC, UL, BSMI |
Dimensions ( W x D x H ) | 305 x 82 x 225 mm (12'' x 3.2'' x 8.9'') | |
Enclosure | Aluminum Housing | |
Mounting | Enclosure mounting | |
OS Support | WIN7/8, WES7, WES-2009, Linux | |
Power Consumption | 50W (Typical) | |
Power Requirement | 12V/24VDC ± 20% | |
Weight (Net) | 4.9kg (10.8lbs) | |
I/O Interface | Audio | Mic-in, Line-In, Line-Out (Pin Header) |
Displays | 1 x VGA, supports 1920x1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 3200x2000@60Hz 24bpp | |
LAN Ports | 2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet | |
Power Connector | 1x 7 Pins, Terminal Block to support dual power input and remote power control | |
Serial Ports | 1 x RS-232, DB9, 50~115.2kbps (pin header), 1 x RS-422/485, DB9, auto flow control, 50~115.2kbps (pin header) | |
USB Port | 4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant) | |
System Hardware | BIOS | AMI UEFI 128Mbit Flash BIOS |
Ethernet | LAN A: Intel® 82579LM GbE, Intel® AMT, IEEE802.1AS, 802.3az, LAN B: Intel® 82583V GbE, IEEE802.1AS, 802.3az | |
Expansion | 1 x PCIex4, 2 x Full-size mPCIe, 1 x half-size mPCIe | |
Graphics Engine | On-board 8GB DDR3L 1333 MHz | |
LED Indicators | LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD | |
Memory | On-board 8GB DDR3L 1333 MHz | |
Processor | Intel® Core™ i7-3612QE QC 2.1GHz Ivy Bridge Quad Core, 6MB L2 | |
Storage | One mSATA slot, Two built-in 2.5" SATA HDD brackets with support for RAID 0/1.(Compatible with 9.5mm height HDD) | |
System Chip | Integrated Intel 8 Series Chipset | |
Watchdog Timer | Programmable 256 levels timer interval, from 1 to 255 |
