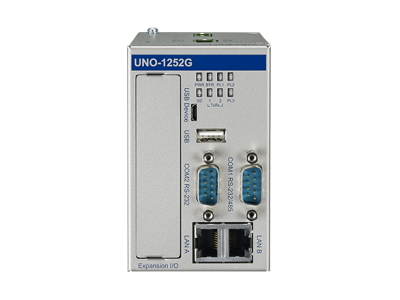

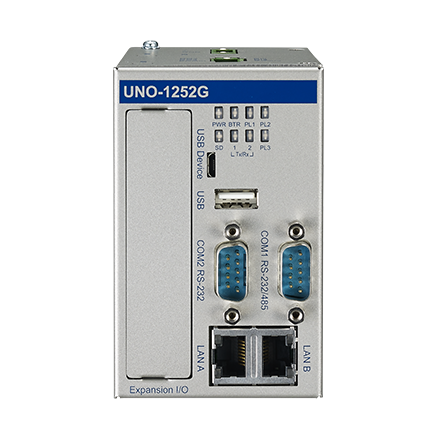

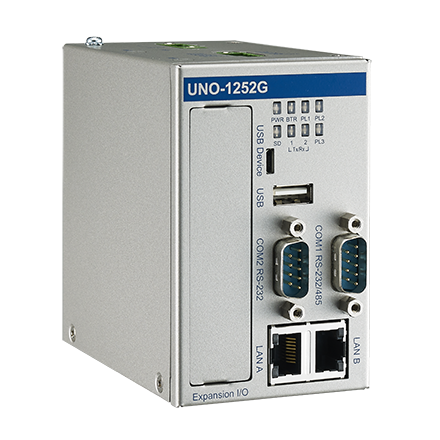

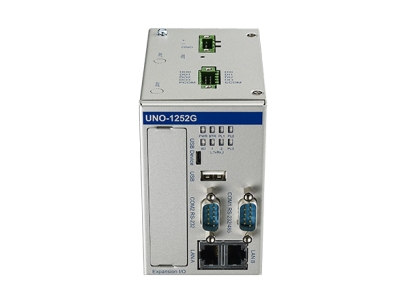

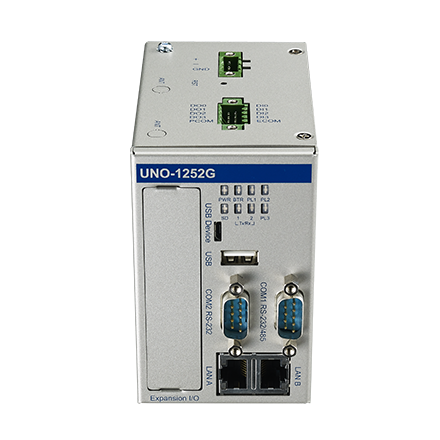

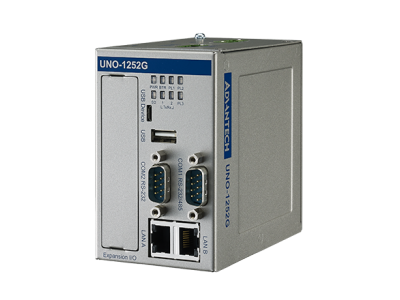

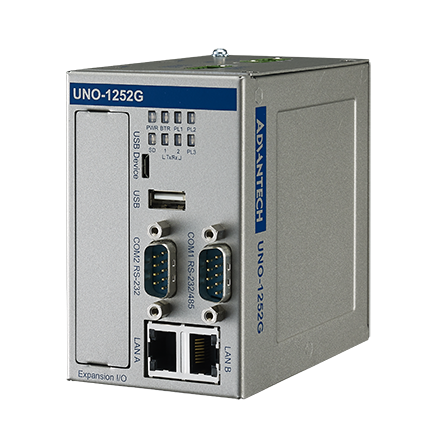

COMPUTER SYSTEM, Quark X1001,256MB RAM,2xLAN,2xCOM,8xDIO,2xmPCIe (UNO-1252G-Q0AE)
by Advantech
•Part #: UNO-1252G-Q0AE
View Detailed Description
$299.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
- Intel® Quark X1001 400 MHz Processor with 256MB Memory
- 2 x LAN, 2 x mPCIe, 1 x RS-232, 1 x RS-232/485, 8 x DI/O, 2 x USB, 1 x 1GB microSD card, 1 x SIM
- COM ports and Digital I/O with Isolation Protection design for Sensing and Controlling
- Chassis Grounding Protection
- Compact with Fanless Design
- Din-rail mounting design
- Supports GPRS/3G/GPS/Wi-Fi Communication by iDoor Technology
- Supports Yocto Linux system
Environment | Operating Temperature | -20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow |
Relative Humidity | 10 ~ 95% RH @ 40°C, non-condensing | |
Shock Protection | Operating, IEC 60068-2-27, 50G, half sine, 11ms | |
Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) | |
Vibration Protection | Operating, IEC 60068-2-64, 1Grms, random, 5 ~ 500Hz, 1 hr/axis | |
General | Certifications | CE, FCC, CCC, BSMI, UL |
Dimensions ( W x D x H ) | 63 x 105 x 100 mm (2.48" x 4.13" x 3.94") | |
Enclosure | Aluminum Housing | |
Form factor | Palm Size | |
Mounting | DIN-rail | |
OS Support | Yocto Linux | |
Power Consumption | 10 W (Typical) | |
Power Requirement | 10~36 VDC | |
Weight (Net) | 0.6 kg (1.32 lbs) | |
I/O Interface | Grounding Protection | Chassis Grounding |
Isolated DI/O | 4-ch digital input, 4-ch digital output (Isolation Protection 1000 VDC , Overvoltage protection 30 VDC) | |
Isolated Serial Ports | 1 x RS-232, DB9, 50~115.2 kbps, supports console debug (Isolation Protection 1000 VDC) 1 x RS-232/485, DB9, 50~115.2 kbps | |
LAN Ports | 2 x RJ45, 10/100 Mbps (DHCP supported by LAN A) | |
Power Connector | 1 x 3 Pins, Terminal Block | |
SIM | 1 x SIM card slot | |
USB Port | 1 x USB 2.0 (type-A), 1 x USB Client (micro-B) | |
System Hardware | BIOS | 8MB SPI Flash |
Expansion | 1 x Full-size mPCIe with USB signal, 1 x Full-size mPCIe with PCIe signal | |
LED Indicators | LEDs for Power (PWR) , battery (BTR), COM1~2 (Tx/Rx) and | |
Memory | On-board 256 MB DDR3 800 MHz | |
Processor | Intel Quark X1001 400 MHz | |
Storage | 1 x microSD Slot (1GB microSD card included) | |
System Chip | Integrated Intel SoC Chipset |
Be the first to review this product!
