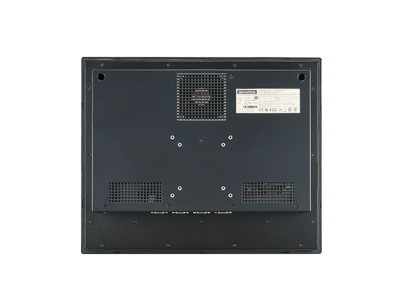

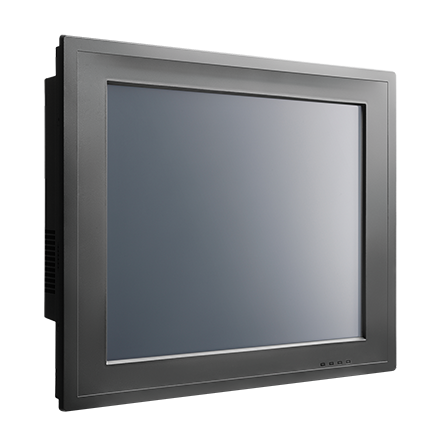

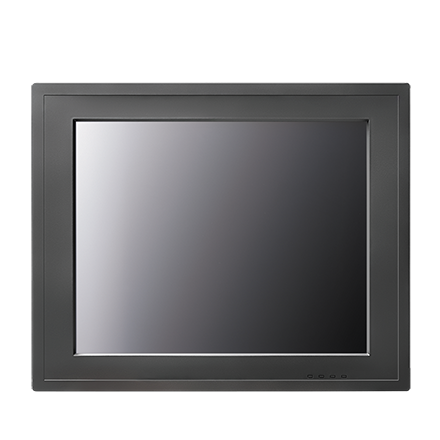

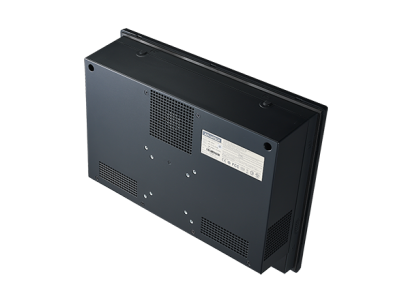

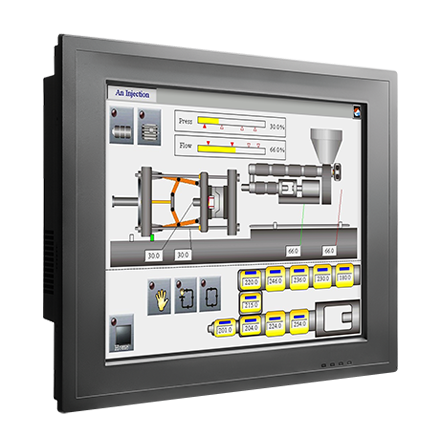

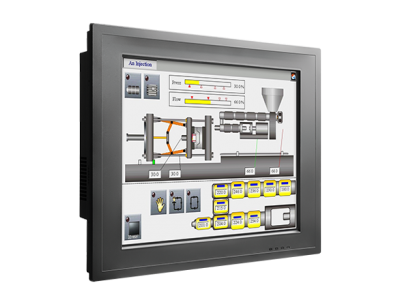

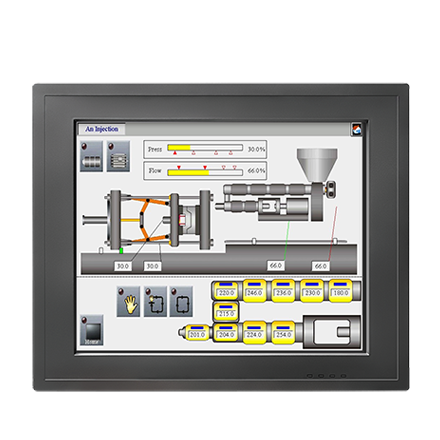

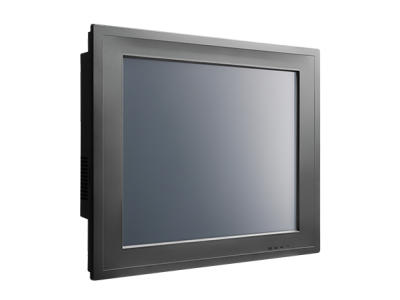

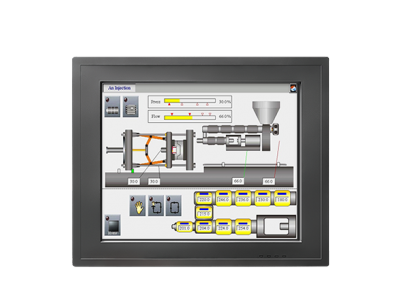

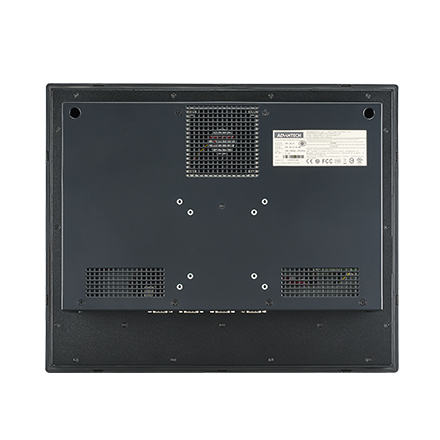

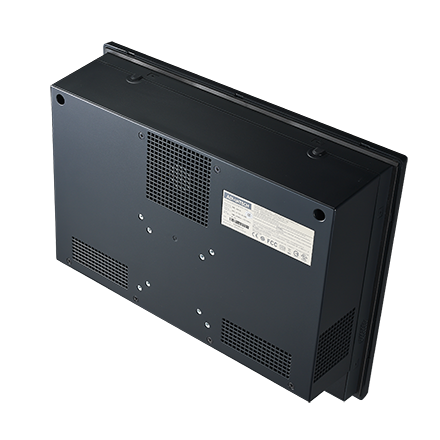

COMPUTER SYSTEM, 17"Panel PC w/Intel Core i5,TS,6COM,6USB,2LAN (PPC-8170-RI5AE)
by Advantech
•Part #: PPC-8170-RI5AE
View Detailed Description
$1,600.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
- 17" TFT LED Panel,resolution up to 1280 x 1024
- Built-in Intel ® Core™ i3, i5 desktop processor (LGA) with Intel H61 chipset
- Two 204 PIN DDR3 SO-DIMM,DDR3 1066/1333/1600MHz SDRAM, up to 8 GB/4 GB per SO-DIMM
- Support one expansion PCIe x 4 slot installed. (Replaceable with PCI riser accessory

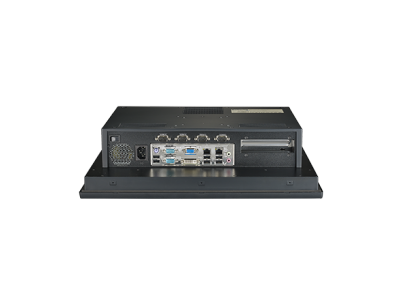

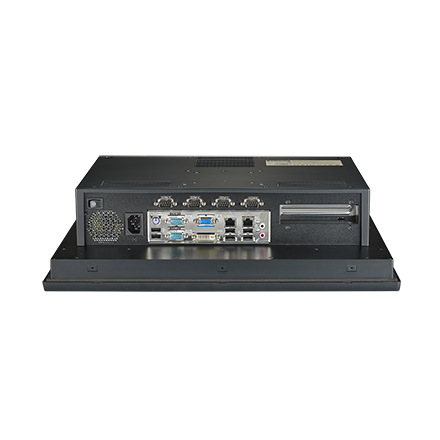

- Supports 6 USB, 6 COMs, 1 x GPIO, 8 bits (Internal pin header)
- Support 1 x 2.5" SATA bay
- Support AC 100~240V input
- Supports iManager, SUSIAccess and Embedded Software APIs
| Display | Viewing Angle | 80°(left), 80°(right), 60°(up), 80°(down) |
| Environment | Relative Humidity | 10 ~ 95% @ 40° C (non-condensing) |
| Vibration Protection | Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64 | |
| Shock Protection | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 | |
| EMC | CE, BSMI, FCC Class A | |
| Safety | CB, CCC, BSMI, UL | |
| Operating Temperature | 0 ~ 50°C (32 ~ 122°F) | |
| Storage Temperature | -20 ~ 60°C (-4 ~ 140°F) | |
| Front Panel Protection | IP65 Compliant | |
| LCD Display | Luminance (cd/m2) | 350 |
| Contrast Ratio | 800:1 | |
| Max. Resolution | 1280 x 1024 | |
| Max. Colors | 16.7 M | |
| Display Type | 17" TFT LED Panel | |
| Pixel Pitch (mm) | 0.264 x 0.264 | |
| Backlight Life | 50, 000 hrs | |
| OS Support | OS Support | Win XP Pro/ Win 7 32 & 64 bit |
| Physical Characteristics | Dimensions | 442.0 x 362.0 x 113.5 (mm) (17.4" x 14.25" x 4.47") |
| Weight | 9.2 Kg | |
| Power Supply | Power Consumption | 71W (Burn-in test 7.0 in Windows 7 32 bit) |
| Input Voltage | 100 ~ 240 VAC | |
| Output Rating | 180 W | |
| Processor System | Memory | 2 x 204 PIN DDR3 SO-DIMM,DDR3 1066/1333/1600MHz SDRAM, up to 8 GB/4 GB per SO-DIMM |
| Storage | 1 x 2.5" SATA bay | |
| Network (LAN) | 2 x Gigabit Gigabit Ethernet connectors (RTL8111E) | |
| FAN | 1 x 12V 80 x 80 x 15 mm | |
| CPU | 3rd Gen. Intel® Core™ i5 | |
| Chipset | Intel H61 | |
| Touchscreen | Light Transmission | 81% +/- 3% |
| Resolution | 2048 x 2048 | |
| Controller | USB interface | |
| Durability (Touches) | 36 million | |
| Software Driver Support | Windows 7, XP, CE | |
| Touchscreen (Optional) | Type | Analog Resistive 5-wire |
