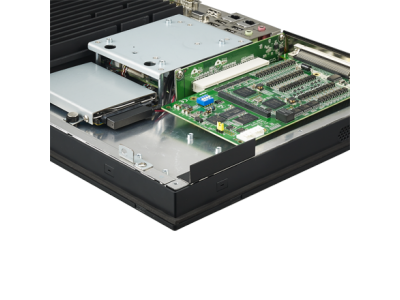

COMPUTER SYSTEM, Intel Atom E3845(1.91G),17" SXGA LED&T/S,W/O RAM (PPC-3170-RE4AE)
by Advantech
•Part #: PPC-3170-RE4AE
View Detailed Description
$979.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.

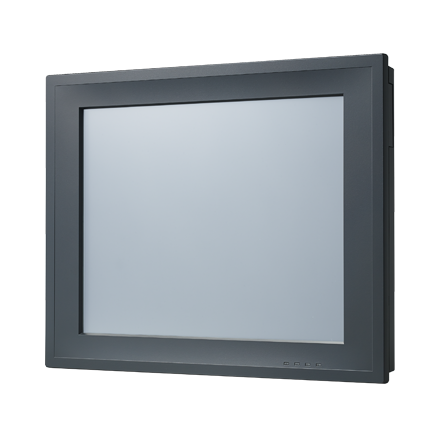

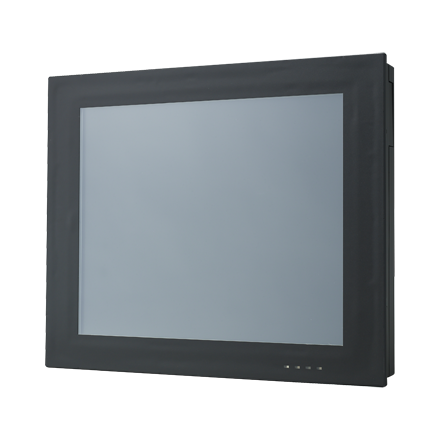

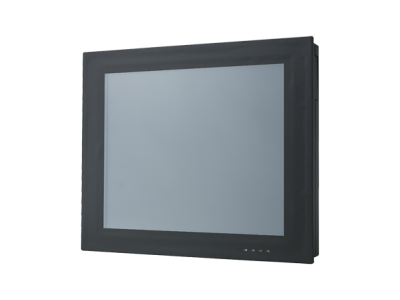

- 17” TFT SXGA LCD with resistive touchscreen
- Embedded Intel Atom Quad-Core E3845 1.91G

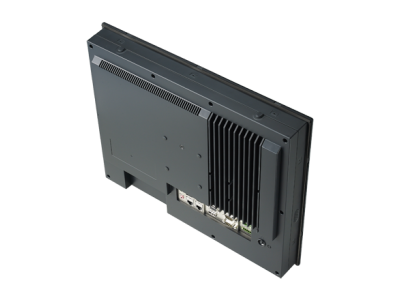

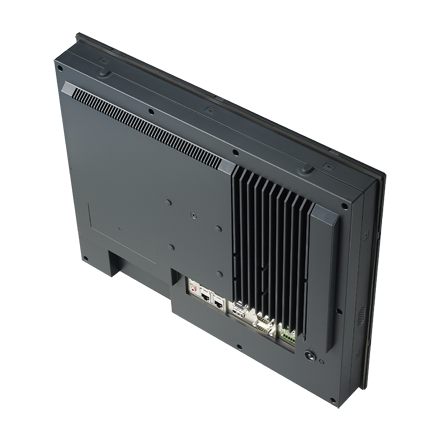

- Fanless and Slim design

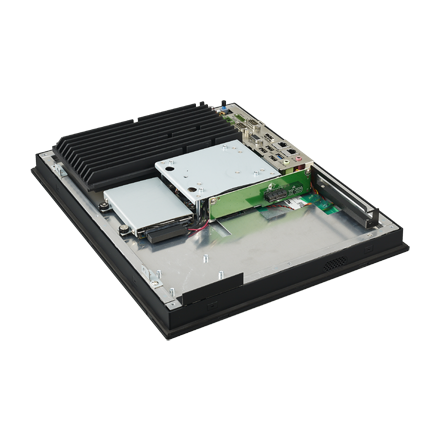

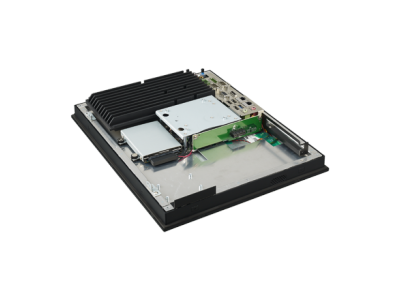

- Supports one internal 2.5” SATA HDD, one mSATA socket

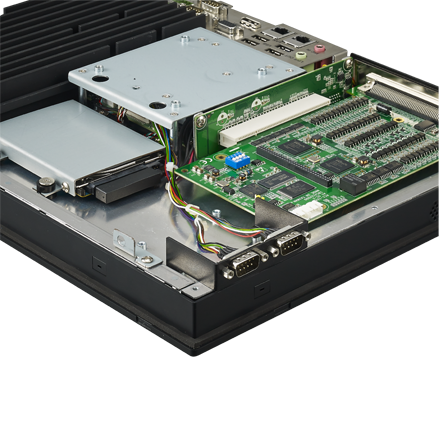

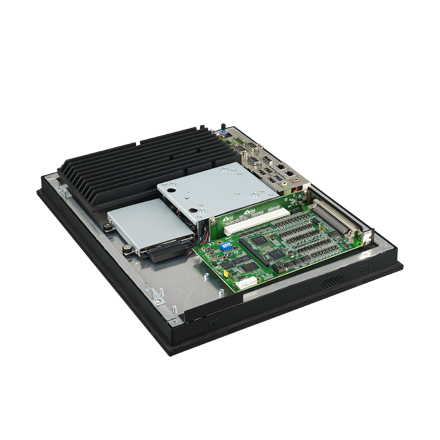

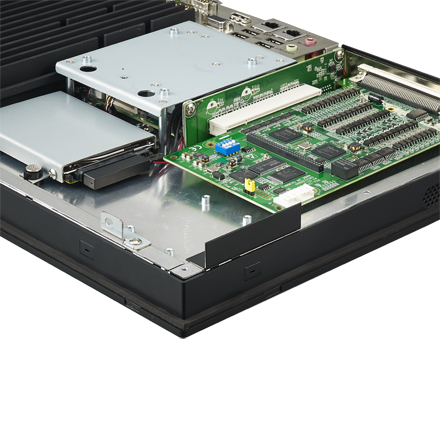

- Built-in one PCI or one PCIe x1 expansion slot
- Wide operating temp. range from -20~60°C
- Wide range power input for 9~32VDC
- One isolated RS-422/485 with Autoflow, Dual Intel GbE
- One optional GPIO (8 channels, TTL level)
| Display | Backlight Life (hrs) | 50,000 hrs (typical) |
| Luminance (cd/m2) | 350 | |
| Max. Resolution | 1280 x 1024 | |
| Max. Colors | 16.7 M | |
| Viewing Angle | 80 (left), 80 (right), 70 (up), 70 (down) | |
| Display Type | 17" TFT LCD (LED Backlight) | |
| Environment | Relative Humidity | 10 ~ 95% @ 40° C (non-condensing) |
| Vibration Protection | Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64 | |
| Shock Protection | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 | |
| EMC | CE, BSMI, FCC Class A | |
| Safety | CB, CCC, BSMI, UL | |
| Operating Temperature | 0 ~ 50°C (32 ~ 122°F) with 2.5” SATA HDD -20 ~ 60°C (-4 ~ 140°F) with -40 ~ 85°C mSATA | |
| Storage Temperature | -40 ~ 60°C (-40~140°F) | |
| Front Panel Protection | IP65 Compliant | |
| LCD Display | Contrast Ratio | 800:1 |
| OS Support | OS Support | WES7, Windows 7, Windows 8 |
| Physical Characteristics | Dimensions | 442.0 x 362.0 x 69.5 (mm) (17.4" x 14.3" x2.74") |
| Weight | 6.3 Kg (13.89lb) | |
| Power Supply | Power Consumption | 40W (Burn-In test 7.0 in windows 7 32bits) |
| Input Voltage | 9-32 VDC | |
| Processor System | L3 Cache | 2M |
| Memory | 1 x 204-pin SO-DIMM DDR3L support up to 8GB | |
| Frequency | 1.91GHz | |
| SSD | 1 x 2.5” SATA bay | |

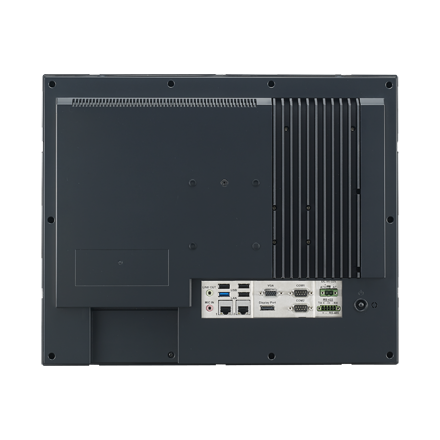

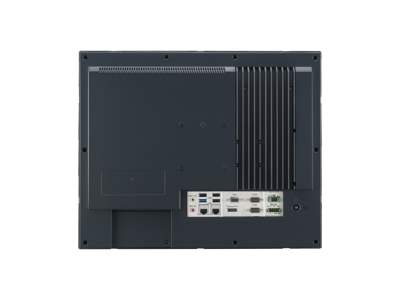

| I/O Ports | ??1 x isolated RS-422/485 (terminal block) 4 x RS-232, two external and two by internal pin header (need optional module) 1 x GPIO (8 channels, TTL level) by internal pin header (need optional module) 1 x USB3.0 + 3 x USB2.0 2 x Gigabit Ethernet 1 x D-SUB VGA port 1 x DP1.1a 1 x Line-out, 1 x Mic-in, 2 x 1W speaker | |
| Additional Expansion | 1 x Full-size Mini PCIe | |
| CPU | Intel ATOM E3845 | |
| Chipset | Intel Bay-Trail | |

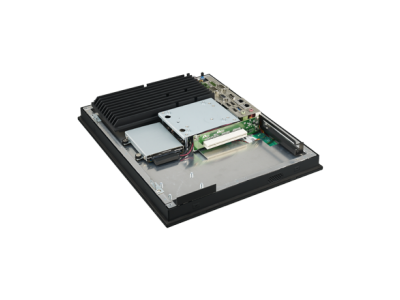

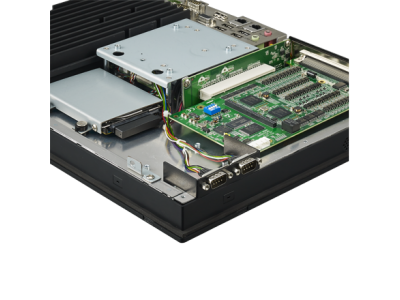

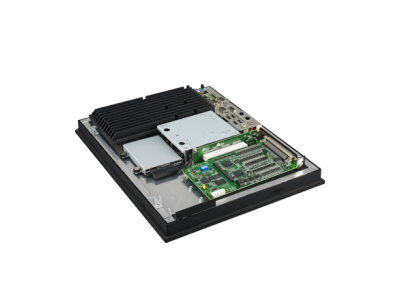

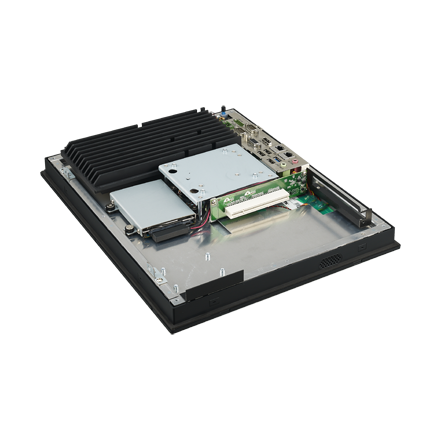

| Expansion Slots | ??One PCI (standard) ?? One PCIe x 1 (in the accessory box) | |

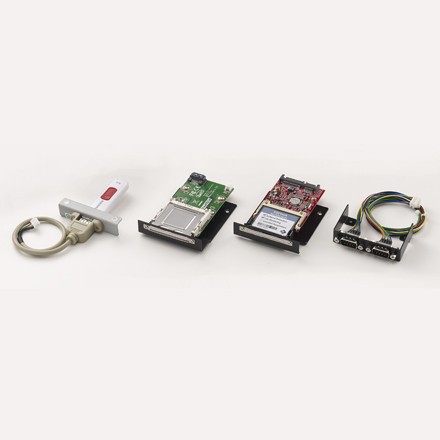

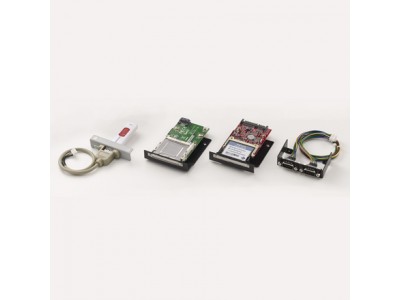

| Optional Storage & I/O | Either: 1 x Full size mSATA ?? CFast card (optional module) ?? CF card (optional module) ?? Internal USB connector (optional module) ?? 2 x DB9 for two RS-232 or one RS-232 and one GPIO (optional module) | |
| Touchscreen | Light Transmission | 80±3% |
| Resolution | 2048 x 2048 | |
| Controller | USB interface | |
| Durability (Touches) | 36 million | |
| Touch Type | Analog Resistive 5-wire | |
| Software Driver Support | Windows7 , Windows8 |
