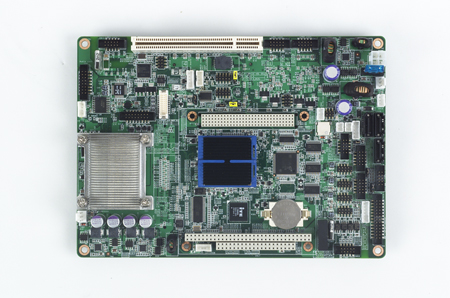

Intel Atom D510 EBX SBC with 2 LAN, 5 COM, and PC/104-Plus expansion (PCM-9562N-S6A1E)
by Advantech
•Part #: PCM-9562N-S6A1E
View Detailed Description
Intel® Atom™ N450/D510 EBX SBC with 3 GbE, 6 COM, 3 SATA, 8 USB 2.0, 2 Watchdog
- Intel Atom™ N450 1.67 GHz Processor
- One 200-pin SODIMM up to 2GB DDR2 667MHz SDRAM
- 2 x Intel Gigabit Ethernet
- 3 x RS-232 3, 2 x RS-232/485 COM ports
- 3 x SATA, 8 x USB and GPIO
- VGA and 18-bit LVDS dual display
- Supports embedded software APIs and Utilities
This product may be subject to delivery delays. Please contact us for further information.
| Audio | Audio Interface | HD Audio |
| CODEC | Realtek ALC888, High Definition Audio (HD) | |
| Amplifier | Max 2.2W/ch Stereo into a 3O Load | |
| Connector | Speaker out, CD-input, Line-in, Line-out, Mic-in | |
| Certification | EMC | CE, FCC |
| Display | Controller | Intel Atom N450 |
| Graphic Engine | Embedded Gen3.5+ GFX Core, HW MPEG2 decoder | |
| Graphic Memory | Optimized Shared Memory Architecture up to 224 MB | |
| VGA | Up to 1400x 1050 | |
| LCD (TTL/LVDS/eDP) | LVDS: Single channel 18-bit up to 1366x768 | |
| Multiple Display | Dual: VGA+ LVDS | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -40 ~ 85° C and 60° C @ 95% RH Non-Condensing | |
| Ethernet | Controller | GbE1: Intel 82567 GbE2: Intel 82583V |
| Speed | 10/ 100/ 1000 Mbps | |
| Connector | 2 Box header (RJ-45 connector through the cable) | |
| Expansion | Slot Type | 1 |
| PCI | 1 | |
| PC/104-Plus | 1 | |
| Form Factor | Form Factor | EBX |
| I/O | USB2.0 | 8 |
| SPI Bus | 1 | |
| GPIO | 16-bit | |
| LPT | 1 | |
| COM Port | 5 (3xRS-232, 2xRS-422/485) | |
| Keypad | 1 | |
| Reset Button | 1 | |
| SMBus | 1 | |
| I2C Bus | 1 | |
| Memory | Technology | DDR2 667 MHz |
| Max. Capacity | 2 GB | |
| Socket | 1 x 200-pin SODIMM | |
| Operating System | Microsoft Windows | Yes |
| Linux | Yes | |
| SUSIAccess | Yes | |
| QNX | Yes | |
| Physical | Dimension (mm) | 203 x 146 mm |
| Weight | 0.7 kg (1.54 lb) (with heatsink) | |
| Construction | Aluminum with fanless design | |
| Power | Power Type | ATX, AT |
| Power Supply Voltage | ATX: 12V ±10%, 5VSB ±5% (5V stand-by power is only for auto power off function) AT: 12V ±10% only | |
| Power Consumption (Idle) | 893 mA @ 12 V, 8 mA @ 5 VSB (10.8 W) | |
| Power Consumption (Full Load) | 1159 mA @ 12 V, 6 mA @ 5 VSB (13.9 W) | |
| Battery | Lithium 3 V / 196 mAH | |
| Processor | CPU | Intel Atom N450 |
| CPU TDP | 5.5 W | |
| Frequency | 1.66 GHz | |
| Core Number | 1 | |
| L2 Cache | 512 KB | |
| BIOS | AMI 16Mbit | |
| Chipset | Inte N450+ICH8M | |
| Storage | SATA | 3 SATA II (Max. Data Transfer Rate 300 MB/s) |
| CompactFlash | CompactFlash Type I/II | |
| Floppy | 1 (Optinal, shared with LPT) | |
| Watchdog Timer | WatchDog Timer | Yes |
