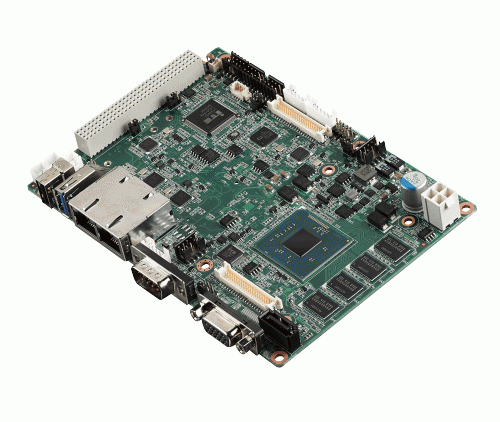

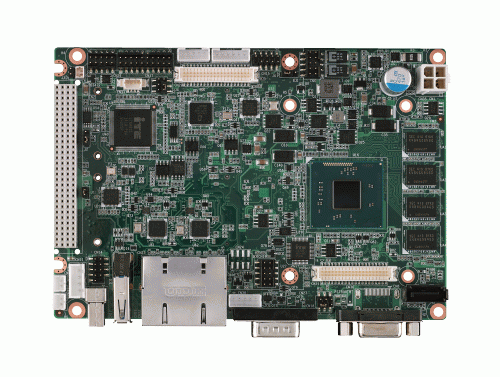

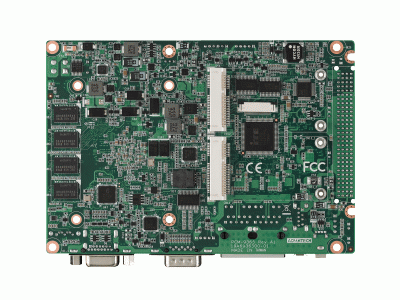

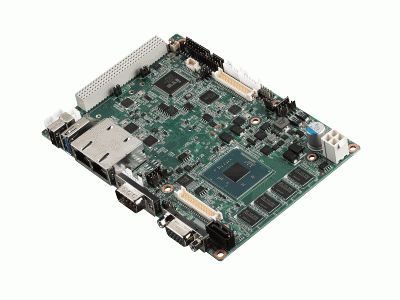

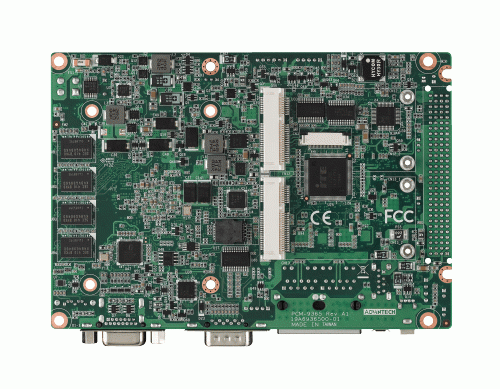

Intel Atom E3825 3.5" Compact SBC with PCI-104 4G RAM/VGA+LVDS (PCM-9365EV-4GS3A1E)
by Advantech
•Part #: PCM-9365EV-4GS3A1E
View Detailed Description
$350.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Intel® Atom™ E3825 & Celeron® N2930, 3.5" SBC, 2GB/4GB On-board Memory, VGA, 48-bit LVDS, 2GbE, Mini PCIe, PCI-104, iManager
- Intel® Atom™ E3825 & with DDR3L-1066/1333MHz 4GB on-board memory
- DirectX11, OpenGL3.2, OpenCL1.1, 3 independent display: VGA+LVDS/HDMI+LVDS*/Dual LVDS
- Support PCI-104 expansion
- 2 GbE, rich I/O: 4COM, SATA, USB3.0, SMBus/I2C, GPIO, full-size Mini PCIe,full-size mSATA
- Supports iManager, SUSIAccess and Embedded Software APIs
| Audio | CODEC | Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in |
| Display | Controller | Intel Gen7 graphic engine |
| Processor Graphics | DirectX11, OpenGL3.2, OpenCL1.1;Full HW acceleration, decode: H.264, MPEG2/4, VC-1, WMV9. Encode: H.264, MPEG2 | |
| VGA | 2560 x 1600 at 60Hz | |
| LVDS | 48-bit dual LVDS up to WUXGA 1920 x 1200 at 60Hz, the 2nd LVDS is supported by request; Supports 3.3/5/12V for VDD power, 1A@5V/12V for inverter | |
| HDMI | HDMI 1.4a for HD video playback, 1080P at 60Hz | |
| Multiple Display | VGA + LVDS, HDMI*+ LVDS, LVDS + LVDS* | |
| Environment | Operational Temperature | 0 ~ 60° C with air flow 0.7m/s (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -40° C ~ 85° C and 60° C @ 95% RH non-condensing | |
| Ethernet | Speed | 10/ 100/ 1000 Mbps |
| Controller | Realtek RTL8111E-VL-CG | |
| Connector | 2 x RJ-45 | |
| Expansion | Mini PCIe | 1 x Full-size |
| PCI-104 | 1 | |
| Internal I/O | Serial | 3 RS-232 (ESD protection: Air gap ±15kV, Contact ±8kV) |
| USB2.0 | 4 | |
| I2C | 1 (Shared with SMBus pin) | |
| SMBus | 1 | |
| GPIO | 8-bit | |
| Memory | Technology | DDR3L 1066 MHz |
| Max. Capacity | 4 GB | |
| Onboard Memory | 4GB | |
| Physical Characteristics | Dimensions (L x W) | 146 x 102 mm (5.7" x 4"), same as 3.5" |
| Weight | 0.54kg (1.19lb), weight of total package | |
| Height | Top Side: 19.5 mm; Bottom Side: 7.8 mm; PCB: 1.6 mm | |
| Power | Power Type | Single 12V DC power input |
| Power Supply Voltage | 12V ± 10% | |
| Power Consumption (Typical) | 0.44A @ 12V (5.28W) | |
| Power Consumption(Max, test in HCT) | 0.554A @ 12V (6.648W) | |
| Power Management | ACPI | |
| Battery | Lithium 3 V / 210 mAH | |
| Processor | CPU | Intel Atom E3825 |
| Burst Frequency | 1.33 GHz (Dual-Core) | |
| Max Turbo Frequency | N/A | |
| L2 Cache | 1 MB | |
| BIOS | AMI UEFI BIOS at 64 Mb | |

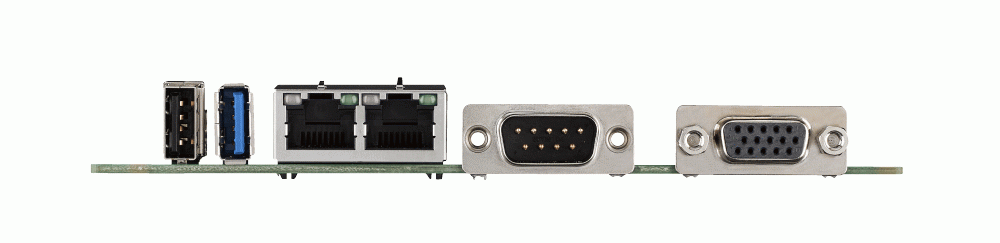

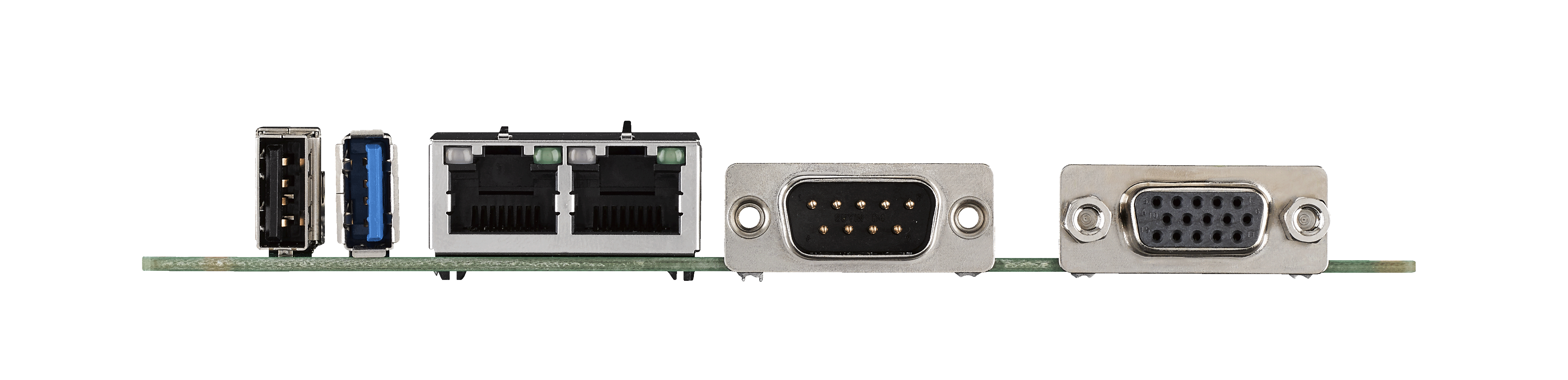

| Rear I/O | Ethernet | 2 (10/100/1000Mbps) |
| VGA | 1 | |
| HDMI | 1 (support by request) | |
| USB 2.0 | 1 | |
| USB 3.0 | 1 | |
| Serial | 1 RS232/422/485 support auto flow control | |
| Storage | SATA | 1, up to 3Gb/s (300 MB/s) |
| mSATA | 1 x Full-size | |
| Watchdog Timer | Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds |
