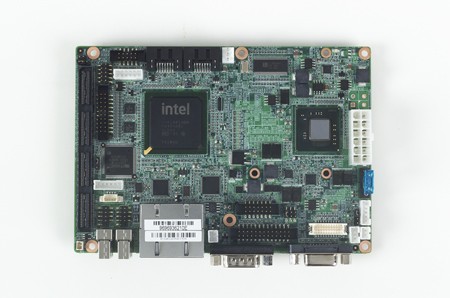

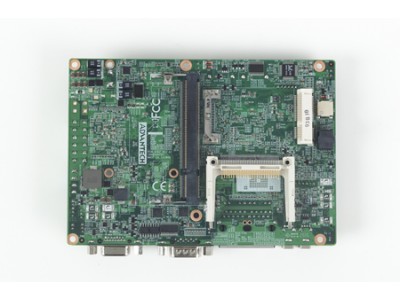

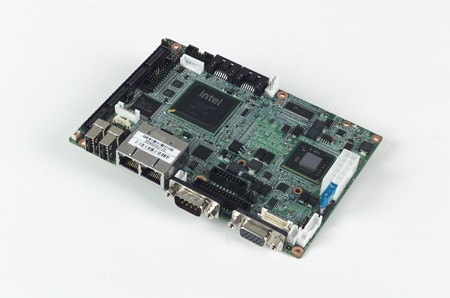

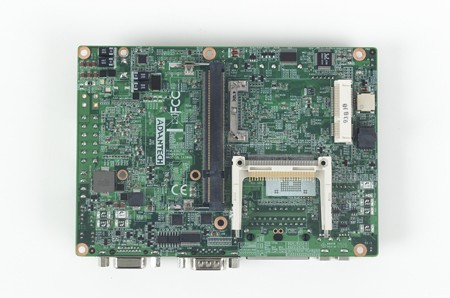

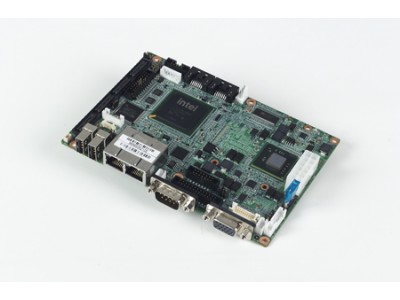

Intel Atom N450/ D510 3.5" SBC, LVDS, CRT, 2 Giga LAN, Mini PCIe, 4 COM – Extreme Temp Version (-40~85C) (PCM-9362NZ21GS6A1E)
by Advantech
•Part #: PCM-9362NZ21GS6A1E
View Detailed Description
$440.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Intel® Atom™ N450/D510 3.5" SBC, LVDS, VGA, 2 GbE, Mini PCIe, CF, MIO-160 Expansion
- Intel� Atom™ N450 single core 1.66 GHz Processor Built-In
- Onboard 1GB DDR2 667MHz SDRAM with options up to 2GB
- Supports Intel Dual Gigabit Ethernet
- 3 x RS-232, 1 x RS-232/422/485
- 2 x SATAII, 6 x USB and GPIO
- Multiple display: VGA, 18-bit LVDS
- Supports 12VDC input power
- Supports embedded software APIs and Utilities
- Extreme temperature -40 to 85C
- Special Order Product – Please anticipate a longer lead time for delivery. This product order will be considered non-cancellable/non-returnable.
| Audio | Chipset | Realtek ALC886, High Definition Audio(HD),Line-in, Line out, Mic-in |
| Display | Chipset | Intel Atom N450 |
| VRAM | Optimized Shared Memory Architecture up to 224 MB system memory | |
| Graphic Engine | Intel 3.5 Gen. DX9, MPEG2 Decode in HW, Embedded Gen3.5+GFX Core | |
| LVDS | LVDS: Single channel 18-bit LVDS up to WXGA 1366 x 768 | |
| VGA | Support SXGA up to 1400 x 1050 | |
| Dual Display | VGA+LVDS | |
| Environment | Operational Temperature | -40 ~ 85° C (-40 ~ 185° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -40 ~ 85° C and 60° C @ 95% RH Non-Condensing | |
| Ethernet | Speed | 10/100/1000 Mbps (Supports Wake on LAN) |
| Controller | GbE1: Intel 82567V GbE2: Intel 82583V | |
| Connector | RJ-45 on GbE1, GbE2 | |
| Expansion | Mini PCIe | 1 x Full-size |
| MIO-160 | 1 (Supported on PCM-9362NF/NCF/DF) (SMBus, USB2.0x1, LPC, PCI, 3 x PCIex1, 5V/12V power) | |
| Internal I/O | USB | 4 x USB 2.0 ports |
| Serial | 3 x COM ports (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV); COM3/COM4 supports RS-232; COM2 supports RS-232/422/485 (Supports RS-485 auto flow control) | |
| Parallel (LPT) | 1 | |
| PS/2 KB/Mouse | 1 | |
| GPIO | 8-bit | |
| SMBus | 1 | |
| Memory | Technology | DDR2 667MHz |
| Max. Capacity | 2GB | |
| Socket | 1 x 200-pin SODIMM | |
| Physical | Dimension (mm) | 146 x 102 mm |
| Weight | 0.64kg (1.41 lb), weight of total package | |
| Total Height | 30.5mm | |
| Power | Power Type | AT |
| Power Supply Voltage | AT 12V±10%, not support ATX power supply | |
| Power Consumption (Idle) | 0.87 A @ 12 V (10.44 W) | |
| Power Consumption (Full Load) | 1.01 A @ 12V (12.12 W) | |
| Power Management | APM, ACPI | |
| Battery | Lithium 3 V / 210 mAH | |
| Processor | CPU | Intel Atom Processor, N450 1.66 GHz |
| Frequency | 1.66 GHz | |
| Core Number | 1 | |
| L2 Cache | 512 KB | |
| System Chipset | Intel N450/D510 + ICH8M | |
| BIOS | AMI 16Mbit Flash BIOS | |
| Rear I/O | Serial | 1 (COM1 supports RS-232) (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV) |
| Ethernet | 2 (10/100/1000Mbps) | |
| VGA | 1 | |
| USB | 2 | |
| Storage | CompactFlash | CompactFlash Type I/II (Primary Master IDE Channel) |
| SATA | 2 x SATAII (Max. Data Transfer Rate 300 MB/s) | |
| Watchdog Timer | Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds |
