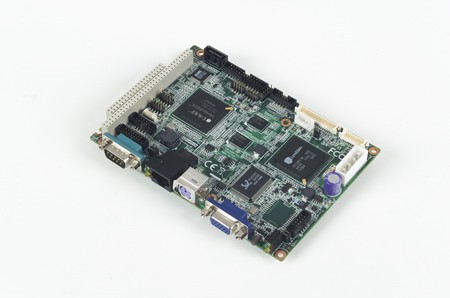

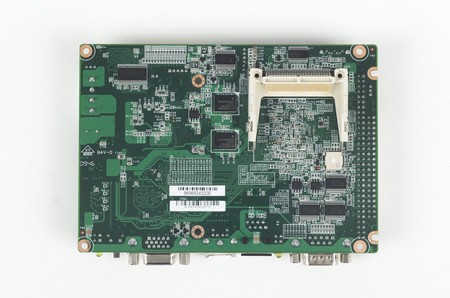

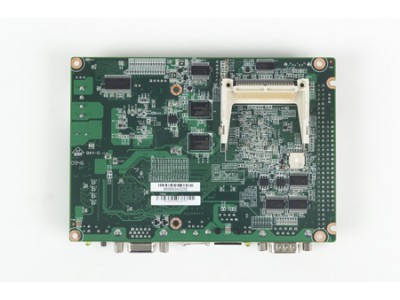

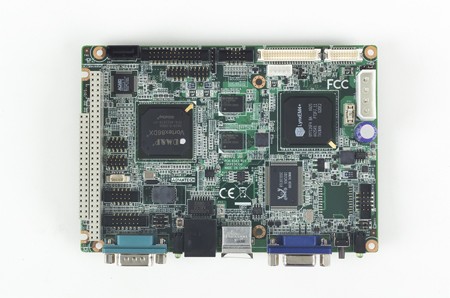

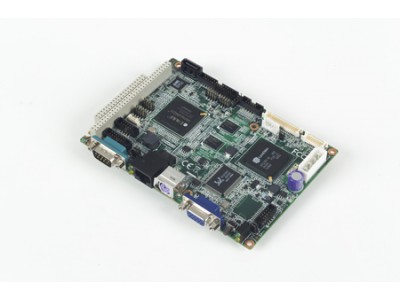

DMP Vortex86DX- 800MHz Ultra Low Power 3.5” SBC w/graphics, dual LAN, 512MB (PCM-9343EFG-S6A1E)
by Advantech
•Part #: PCM-9343EFG-S6A1E
View Detailed Description
$190.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
DM&P Vortex86DX 800MHz 3.5" SBC, Ultra Low Power, Onboard Memory, Dual Ethernet, PC/104
- DM&P Vortex86DX, onboard DDR2 memory up to 512 MB
- Display type: VGA, 18/24-bit LVDS, 18/24-bit TTL
- Supports Floating Point Unit, total power consumption 4 ~ 6 Watts, supports extended temperature to -40 ~ 85° C
- Dual Ethernet: 10/100 Ethernet1 and 10/100 Ethernet2, supports PC/104 (8-bit/16-bit ISA) expansion
| Certification | EMC | CE, FCC |
| Display | Controller | SMI SM712 2D graphics chip/- |
| Graphic Engine | 62.5MHz single clock/cycle engine (EM+) 86MHz single clock/cycle engine (EM4+) Designed to accelerate DirectDraw) /- | |
| Graphic Memory | 4MB internal memory/- | |
| VGA | Support up to 1024 x 768@85Hz/- | |
| LCD (TTL/LVDS/eDP) | LVDS: Single channel 18/24-bit up to 1024 x 768 (1280x1024 supported by request) TTL: Support up to 1024x 768@24-bit /- | |
| Multiple Display | VGA+TTL, VGA+LVDS | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -40 ~ 85° C and 60° C @ 95% RH Non-Condensing | |
| Ethernet | Controller | Ehternet1: 10/100 Mbps on DM&P Vortex86DX Ehternet2: 10/100 Mbps on Realtek RTL8110SC |
| Speed | 10/100 Mbps | |
| Connector | RJ45 on Ethernet1, box header on Ethernet2 | |
| Expansion | I2C Bus | 1 |
| PC/104 | 1 | |
| Form Factor | Form Factor | 3.5" CPU Boards |
| I/O | USB2.0 | 4 |
| GPIO | 1, 16-bit GPIO | |
| LPT | 1 | |
| COM Port | 4 ( 3 x RS232, 1 x RS232/ 422/ 485) | |
| Keypad | 1 | |
| Reset Button | 1 | |
| Memory | Technology | DDR2 333MHz |
| Max. Capacity | 512MB | |
| Onboard Memory | On board 512MB | |
| Operating System | Microsoft Windows | Yes |
| Linux | Yes | |
| SUSIAccess | SUSI 3.0 | |
| Physical | Dimension (mm) | 146 x 102 mm |
| Weight | 0.64kg (1.41 lb), weight of total package | |
| Construction | Aluminum with fanless design | |
| Power | Power Type | AT |
| Power Supply Voltage | Single 5V,±5% (+12V option for LCD) | |
| Connector | 1x4pin power connector | |
| Power Consumption (Idle) | 1.03 A @ 5 V (5.15 W) | |
| Power Consumption (Full Load) | 1.18 A @ 5 V (5.9 W) | |
| Battery | Lithium 3 V / 210 mAH | |
| Processor | CPU | DM&P Vortex86DX 800 MHz, supports Floating Point Unit (FPU) |
| CPU TDP | 2.02 W @ 800 MHz | |
| Frequency | 800MHz | |
| Core Number | 1 | |
| L2 Cache | 256KB | |
| BIOS | Award integrated 16Mbit ROM in SOC | |
| Storage | SATA | 1 x SATA (Max. Data Transfer Rate 150 MB/s)/- |
| CompactFlash | CompactFlash Type I/II (Primary Master IDE Channel) Supports 2 channels Ultra-DMA 100 | |
| Watchdog Timer | WatchDog Timer | Yes |
