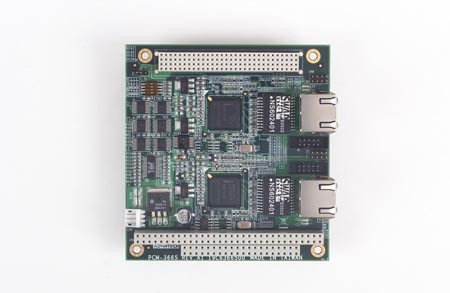

PC/104 Plus Dual Giga Ethernet Module G (PCM-3665-00A1E)

•

Part #: PCM-3665-00A1E

View Detailed Description

0 reviews

This product (Part #: PCM-3665-00A1E) has been retired or discontinued by the manufacturer. No direct replacement is available, please Call or chat with an L-Tron representative for recommendations on a substitute.

Dual GbE Module

Supports Dual Intel^® 82541PI Ethernet Controller
Supports Half / Full duplex flow control
Dual 10/100/1000BASE-T Ethernet
Supports Windows^® NT 4.0, Windows^® 98/2000/XP

Environment	Operational Temperature	0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Environment	Non-Operational Temperature	-40 ~ 85° C (-10 ~ 185° F)
Ethernet	Controller	GbE1:Intel® 82541PI (PCI 10/100/1000 Mbps) GbE2:Intel® 82541PI (PCI 10/100/1000 Mbps)
	Speed	10/100/1000 Mbps
	Connector	RJ-45
Expansion	PC/104-Plus	1
Form Factor	Form Factor	PC/104-Plus (PCI interface only)
Physical	Dimension (mm)	96 x 90 mm (3.8" x 3.5")
Physical	Weight	0.09 kg (0.198 lb)
Power	Power Supply Voltage	+5 V, ±5 % tolerance on power supply
Power	Power Consumption (Idle)	+5 V @ 1.2 A (typical)
