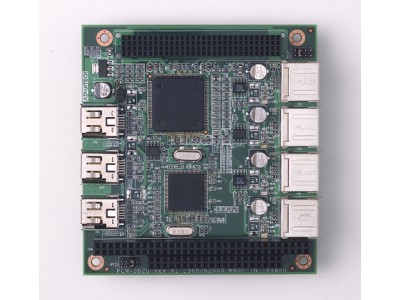

USB2.0 and IEEE1394 PC/104+ module, G (PCM-3620-00A1E)
by Advantech
•Part #: PCM-3620-00A1E
View Detailed Description
$100.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
USB 2.0/IEEE 1394a PC/104-Plus Module
- Four USB 2.0 compliant ports, up to 480 Mbps
- USB ECHI 1.0 and PHCI 1.0a compatible
- Three IEEE1394a compliant ports, up to 400 Mbps
- IEEE 1394a OHCI 1.1 compliant
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Expansion | PC/104-Plus | 1 |
| Form Factor | Form Factor | PC/104-Plus (PCI interface only) |
| I/O | USB2.0 | 4 x USB 2.0 Compliant Ports Compliant with OHCI USB Rev 1.0a Compliant with EHCI for USB Rev 1.0 High-speed (480 Mbps), full-speed (12 Mbps) and low-speed (1.5 Mbps) transfer |
| IEEE 1394a | 3 port compliant with 1394 Open Host Controller Interface Specification (Release 1.1) | |
| Physical | Dimension (mm) | 96 x 90 mm (3.8" x 3.5") |
| Weight | 0.81 kg (0.18 lb) | |
| Power | Power Supply Voltage | +5 V , +12 V |
| Processor | Chipset | NEC® uPD720101 and TI TSB43AB23 |
