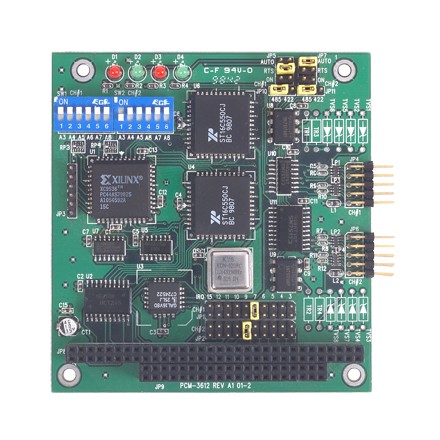

Dual-Port RS-422/485 PC/104 Module (PCM-3612-BE)
by Advantech
•Part #: PCM-3612-BE
View Detailed Description
$87.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Advantech's new PC/104 module, the PCM-3612 Dual Port RS-422/485 Communication Module, features two surge protected, RS-422/485 configurable serial communication channels to provide an economical and compact multi-serial solution for systems with a PC/104 bus.
- Long distance communication
- Automatic RS-485 data flow control
- Jumper selectable interrupt level
- Supports Windows 98/2000/XP
- Supports WinCE 3.0, 4.2
- Powerful and easy-to-use utility (ICOM Tools)
| Communications | RS-422 | V |
| RS-485 | V | |
| Data Bits | 5,6,7,8 | |
| Stop Bits | 1,1.5,2 | |
| Parity | None, even, odd | |
| Speed | 50 bps ~ 115.2 kbps | |
| Data Flow Control | ? Automatic RS-485 data flow control | |
| Environment | Operating Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) | |
| Operating Humidity | 0 ~ 90 % RH, non-condensing | |
| General | Dimensions | 96 x 90 mm (3.775" x 5.550") |
| Connectors | 2 x DB9-M | |
| Bus Interface | PC/104 | |
| OS Support | Windows 2000/XP/Vista/7 , WinCE 4.2, 5.0 | |
| Power Consumption | 400 mA @ +5 V (typ.) | |
| Ports | 2 | |
| Certifications | CE, FCC, RoHS | |
| Software | Bundled Software | ICOM Tools |
