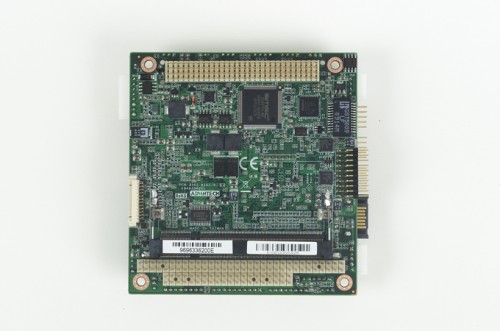

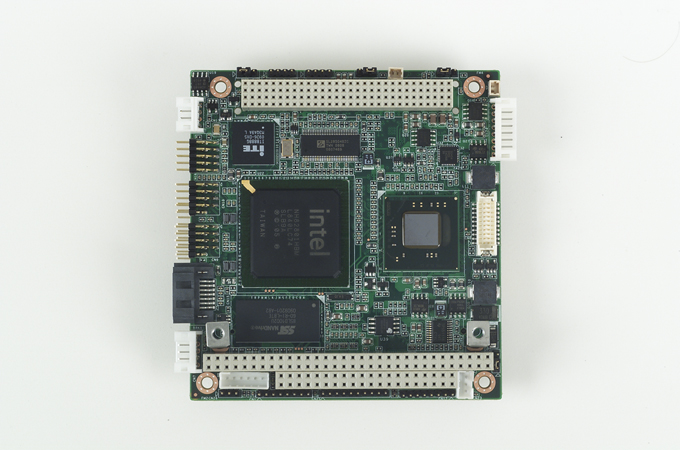

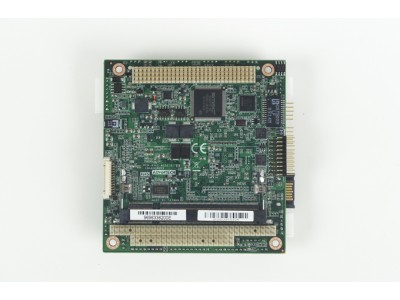

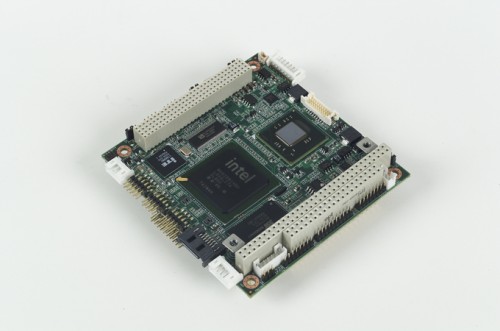

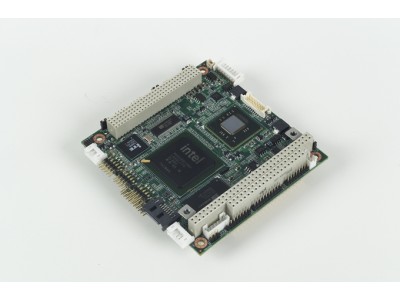

Intel Atom N450 PC/104-Plus SBC with LVDS and On Board 4GB Flash (PCM-3362N-S6F4A1E)
by Advantech
•Part #: PCM-3362N-S6F4A1E
View Detailed Description
The PCM-3362, with the latest Intel® Atom™ N450 processor, features a new super low-power design that doesn’t sacrifice performance. Rich I/O connectivity is provided with up to four USB 2.0 and three COM ports integrated into a standard 96 x 90 mm form factor. Even better, this PC/104-plus CPU board supports dual display for LVDS, and CRT. PCM-3362 is ideal for outdoor integration in military, transportation, and diverse space-saving embedded applications. PCM-3362 delivers super low-power consumption and extended temperature support, ranging from -40~85° C in a ruggedly built board that’s highly resistant to vibration.
- Intel® Atom™ N450 1.66 GHz Processor
- DDR2 667MHz SDRAM up to 2GB
- Supports extended temperature -40 ~ 85°C
- Standard 96 x 90 mm dimension and PC/104-Plus expansion connector
- Onboard 4GB Flash
- Supports embedded software APIs and Utilities
- This product may be subject to delivery delays. Please contact us for further information.
| Audio | CODEC | Intel ICH 8 M integrated |
| Certification | EMC | CE, FCC |
| Display | Controller | Intel Atom N450 |
| Graphic Engine | Intel Gen 3.5 graphic core, DX9 compliant, MPEG2 Hardware Acceleration | |
| Graphic Memory | Shared system memory up to 224 MB | |
| VGA | Supports up to SXGA 1400 x 1060 at 60 Hz | |
| LCD (TTL/LVDS/eDP) | LVDS: Single channel 18-bit LVDS up to WXGA 1366 x 768 | |
| Multiple Display | Dual | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 85% RH non-condensing) |
| Non-Operational Temperature | -40° C ~ 85° C and 60° C @ 95% RH non-condensing | |
| Ethernet | Controller | ICH8M + Intel 82567V (PHY) |
| Speed | 10/100/1000 Mbps | |
| Connector | Pin Header | |
| Expansion | I2C Bus | 1 |
| PC/104-Plus | 1 | |
| Form Factor | Form Factor | PC/104-Plus |
| I/O | USB2.0 | 4 |
| GPIO | 1 | |
| COM Port | 3 (2 RS-232, 1 RS422/485) | |
| Keypad | 1 | |
| Memory | Technology | DDR2 667 MHz |
| Max. Capacity | 2GB | |
| Socket | 1 x 200-pin SO-DIMM | |
| Operating System | Microsoft Windows | Yes |
| Linux | Yes | |
| SUSIAccess | Yes | |
| Physical | Dimension (mm) | 96 x 90 mm (3.8" x 3.5") |
| Weight | 0.664 kg (1.46 lb) (with heat-sink) | |
| Power | Power Type | AT/ATX |
| Power Supply Voltage | 5 V ± 5% only to boot up (12 V is optional for LCD inverter and add-on card) | |
| Power Consumption (Idle) | 2 A @ +5 V, 5 mA @ +12 V (10.06 Watt) | |
| Power Consumption (Full Load) | 2.37 A @ +5 V, 7 mA @ +12 V (11.93 Watt) | |
| Battery | Lithium 3 V / 210 mAH | |
| Processor | CPU | Intel Atom N450 |
| Frequency | 1.66GHz | |
| Core Number | 1 | |
| L2 Cache | 512KB | |
| BIOS | AMI 16 Mbit | |
| Chipset | Intel ICH 8 M | |
| Storage | SATA | 1 SATA II |
| Onboard Flash | 4GB | |
| Watchdog Timer | WatchDog Timer | Yes |
