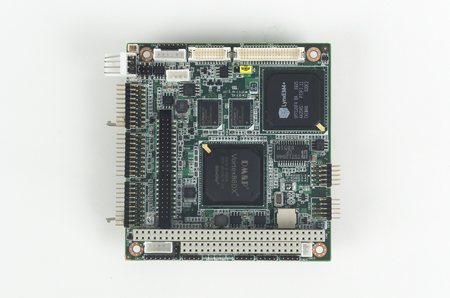

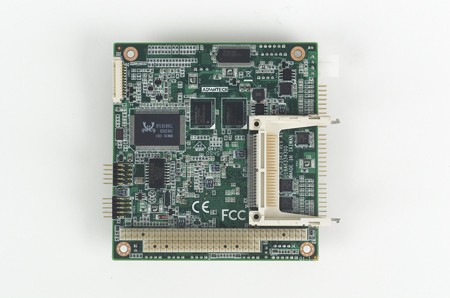

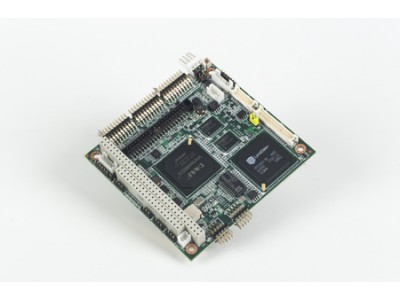

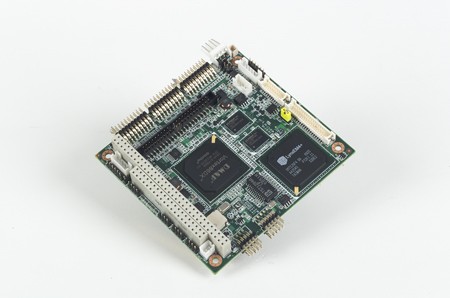

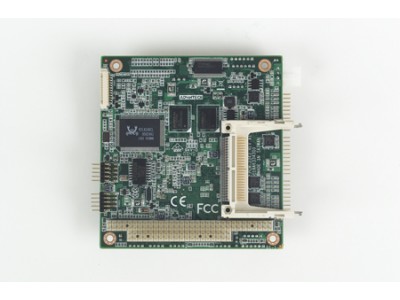

DM&P Vortex86DX-800MHz PC/104 CPU Module, w/o VGA/TTL CF (PCM-3343EL-256A1E)
by Advantech
•Part #: PCM-3343EL-256A1E
View Detailed Description
$125.00
PCM-3343 is a cost-effective System On Chip (SoC) PC/104 CPU module driven by the ultra low power DM&P Vortex86DX 800 MHz processor with 256 MB of DDR2 SDRAM memory on board. PCM-3343 has the standard dimensions of 96 x 90 mm in a fanless PC/104 architecture, supporting rich graphic output including VGA and 24-bit LVDS or TTL up to 1024 x 768 resolution. PCM-3343 delivers ultra low power consumption of less than 5 Watts under full load, and extended temperature support between -40 ~ 85° C. It is well-suited for those applications which need only basic CPU performance, but very low power consumption at an attractive price. This latest SoC CPU board will appeal to system integrators developing DOS, WinCE, WinXP Embedded and Linux –based OS applications in factory automation and industrial instrument fields as well as medical products and devices.
- Ultra low power, fanless DM&P Vortex86DX- 800MHz and 256 MB onboard DDR2 memory
- VGA+LCD dual display outputs, 24-bit LVDS/TTL supported
- Integrated Floating Point Unit
- Supports 2 Fast Ethernet ports in standard PC/104 96 x 90 mm dimensions
| Certification | EMC | CE, FCC |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 85% RH non-condensing) |
| Non-Operational Temperature | -40° C ~ 85° C and 60° C @ 95% RH non-condensing | |
| Ethernet | Controller | GbE1: Vortex86DX SOC integrated GbE2: Realtek RTL8100C-LF |
| Speed | 10/100 Mbps | |
| Connector | Pin Header | |
| Expansion | I2C Bus | 1 |
| PC/104 | 1 | |
| Form Factor | Form Factor | PC/104 |
| I/O | USB2.0 | 4,2 |
| SPI Bus | Optional onboard 4 MB SPI Flash Disk (Supported by request for boot device or storage on DOS OS) | |
| GPIO | 1 | |
| COM Port | 4 (3 x RS232, 1 x RS232/ 422/ 485)/2 (1 x RS232, 1 x RS232/ 422/ 485)/2 (1 x RS232, 1 x RS232/ 422/ 485) | |
| Keypad | 1 | |
| Memory | Technology | DDR2 333 MHz SDRAM on board |
| Max. Capacity | 512MB | |
| Onboard Memory | Onboard 256 MB (512 MB supported by request) | |
| Operating System | Microsoft Windows | Yes |
| Linux | Yes | |
| Physical | Dimension (mm) | 96 x 90 mm (3.8" x 3.5") |
| Weight | 0.508 kg (1.12 lb) | |
| Power | Power Type | AT |
| Power Supply Voltage | 5V ± 5% only to boot up (12 V is optional for LCD inverter and add-on card) | |
| Power Consumption (Idle) | 0.74 @ +5 V, 3.7 Watt (Vortex86DX 1 GHz, DDR2 256 MB) | |
| Power Consumption (Full Load) | 0.85 A @ +5 V, 4.25 Watt (Vortex86DX 1 GHz, DDR2 256 MB) | |
| Battery | 3 V/210 mAH | |
| Processor | CPU | DM&P Vortex86DX 800 MHz, supports Floating Point Unit (FPU) |
| Frequency | 800MHz | |
| L2 Cache | 256KB | |
| BIOS | Award integrated 16 Mbit ROM in SOC | |
| Storage | IDE | 1 |
| CompactFlash | 1 | |
| Watchdog Timer | WatchDog Timer | Yes |
