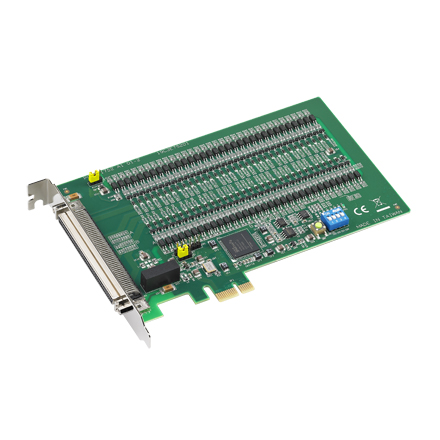

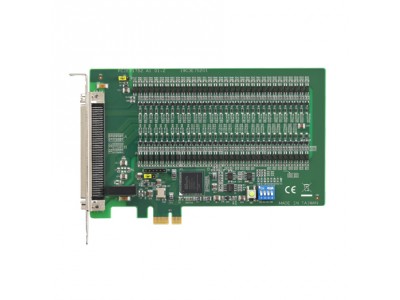

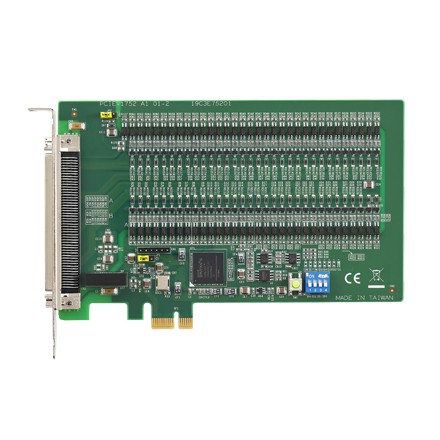

64-Channel Isolated Digital Output PCI Express Card (PCIE-1752-AE)
by Advantech
•Part #: PCIE-1752-AE
View Detailed Description
$310.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The Advantech PCIE-1752, PCIE-1754 and PCIE-1756 series products offer 64 isolated digital input and output channels with 2,500 VDC isolation protection. They feature a wide input range (10 ~ 30 VDC), wide output range (5 ~ 40 VDC) and high sink current (500mA max./channel) can make PCIE-1752/1754/1756 series products easily used in industrial automation control systems. With the help of the latest Advantech driver - DAQNavi, users can perform the configuration and setting easily and efficiently in the programming.
- Wide output range (5 ~ 40 VDC)
- High sink current on isolated output channels (500mA max./ch)
- 2,000 VDC ESD protection
- High-voltage isolation (2,500 VDC)
- Interrupt handling capability
| General | Power Consumption | Typical: 3.3 V @ 485 mA; Max.: 3.3 V @ 530 mA; 12V @ 90 mA |
| I/O Connectors | 1 x 100-pin SCSI female connector | |
| Operating Temperature | 0 ~ 60°C (32 ~ 140°F) | |
| Bus | PCIe | |
| Dimensions | 175 x 100 mm (6.9" x 3.9") | |
| OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
| Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt | |
| Isolated Digital I/O | Output Channels | 64 |
| Output Ranges | 5 ~ 40 VDC |
