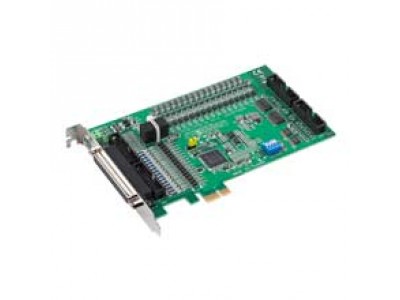

32-Channel Isolated Digital I/O and TTL Digital I/O PCI Express Card (PCIE-1730-AE)
by Advantech
•Part #: PCIE-1730-AE
View Detailed Description
$220.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
PCIE-1730 offers isolated digital input channels as well as isolated digital output channels with isolation protection up to 2,500 VDC, which makes them ideal for industrial applications where high-voltage isolation is required. There are also 32 TTL digital I/O channels on PCIE-1730.
- 32-ch isolated DI/O (16-ch digital input, 16-ch digital output)
- 32-ch TTL DI/O (16-ch digital input,16-ch digital output)
- High output driving capacity
- Interrupt handling capability
- 2 x 20-pin connectors for isolated DI/O channels and 2 for TTL DI/O channels
- D-type connector for isolated input and output channels
- High-voltage isolation on output channels (2,500 VDC)
General | Power Consumption | Typical: 3.3 V @ 280 mA, Max.: 3.3 V @ 420mA |
I/O Connectors | 37-pin D-Sub female,20-pin insulation displacement connectors | |
Operating Temperature | 0 ~ 60°C (32 ~ 140°F) | |
Bus | PCIe | |
Dimensions | 175 x 100 mm (6.9" x 3.9") | |
OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt | |
Isolated Digital I/O | Input Channels | 16 |
Input Range | 10 ~ 30 VDC | |
Output Channels | 16 | |
Output Ranges | 5 ~ 40 VDC | |
TTL DI/O | Input Channels | 16 |
Output Channels | 16 |
