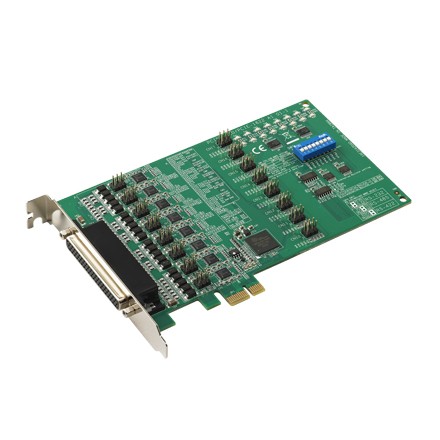

8 Port Serial PCI Express Serial Communication Card with Surge Protection (PCIE-1622B-AE)
by Advantech
•Part #: PCIE-1622B-AE
View Detailed Description
$465.00
PCIE-1620 is an 8-port RS-232, and PCIE-1622 is an 8-port RS-232/422/485 PCI Express communication cards that are compatible with the PCI Express x 1 specification. The cards provide eight EFT protected RS-232/422/485 ports up to 2,500 VDC, and have many functions such as high transmission speed of 921.6 kbps; either eight independent RS-232 ports or eight independent RS-232/422/485 ports which comes with high-performance PCIe958 UARTs with 128-byte FIFO to reduce CPU load. Thus, the PCIE-1620/ PCIE-1622 are especially suitable for making your system reliable in multitasking environments.
- PCI Express® x1 compliant
- Speeds up to 921.6 kbps for extremely fast data transmission
- Supports any baud rate setting
- 8 x RS-232 or RS- 232/422/485 ports
- Operating systems supported: Windows 2000/XP/Vista/7, and Linux 2.4/2.6
- OXPCIe958 UART with 128-byte FIFOs standard
| Communications | RS-232 | V |
| RS-422 | V | |
| RS-485 | V | |
| General | Number of Ports | 8 |
| Driver | 32-bit/64-bit Windows 2000/XP/Vista/7, Windows CE 5.0/6.0, Linux, and QNX | |
| Protection | ESD | 15KV (air); 8KV (contact) |
