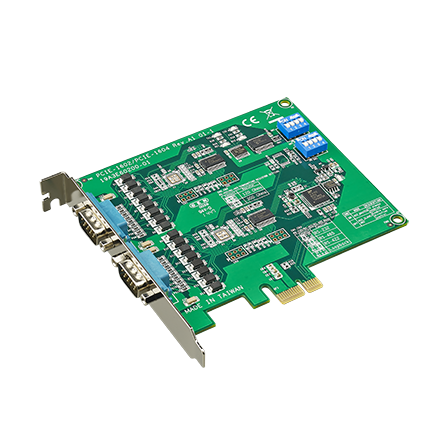

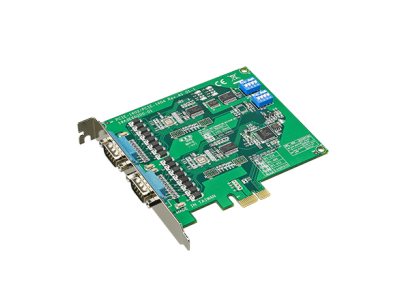

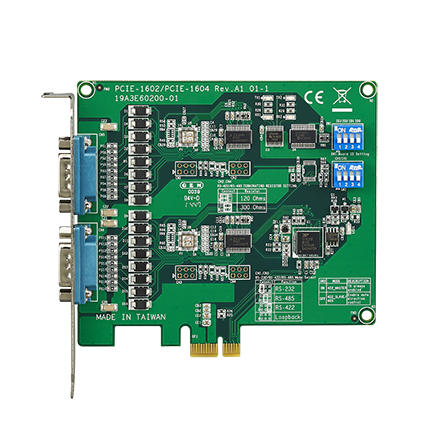

CIRCUIT BOARD, 2-port RS-232 PCIe Comm. Card w/Iso (PCIE-1604C-AE)
by Advantech
•Part #: PCIE-1604C-AE
View Detailed Description
$136.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
2-port RS-232 PCI Express Communication Card w/Surge & Isolation
- PCI Express bus 2.0 compliant
- Speeds up to 921.6 kbps for extremely fast data transmission
- Supports any baud rate setting
- 2 x RS-232 or RS- 232/422/485 ports
- Operating systems supported: Windows 2000/XP/Vista/7, Linux 2.4/ 2.6/ 3.x.x, QNX6.5 and Vxworks
- XR17V352 UART with 256-byte FIFOs
Communications | RS-232 | V |
Data Bits | 5,6,7,8 | |
Stop Bits | 1,1.5,2 | |
Parity | None, Even, Odd, Mark and Space | |
FIFO | 256 bytes | |
Communication Controller | XR17V352 | |
Speed | 50 bps ~ 921.6 kbps, any baud rate setting | |
Data Flow Control | DTR/DSR,RTS/CTS, Xon/Xoff | |
Environment | Operating Temperature | -10 ~ 60° C (14 ~ 144° F) |
Storage Temperature | -25 ~ 85°C (-13 ~ 185°F) | |
Operating Humidity | 5 ~ 95 % RH, non-condensing | |
General | Power Consumption | 260 mA @ +3.3 V (typ.) |
Ports | 2 | |
Certifications | CE, FCC, RoHS | |
Dimensions | 119.63 x 111 mm (4.71" x 4.4") | |
Connectors | 2 x Male DB9 | |
Bus Interface | PCIe | |
OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
Protection | Surge Protection | 1KV |
Isolation Protection | 3KV | |
EFT Protection | 1KV | |
ESD Protection | 15KV (air), 8KV (contact) | |
Software | Bundled Software | ICOM Tools |
