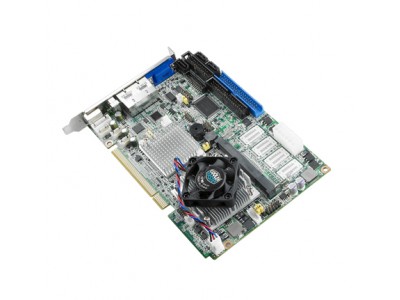

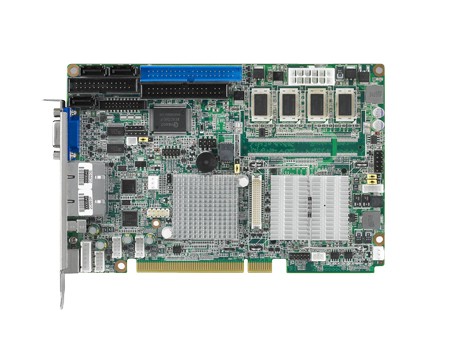

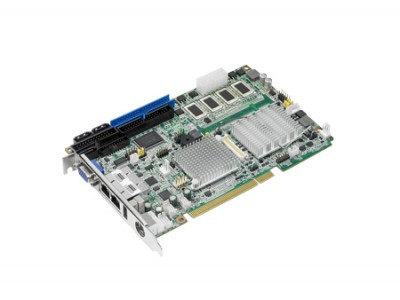

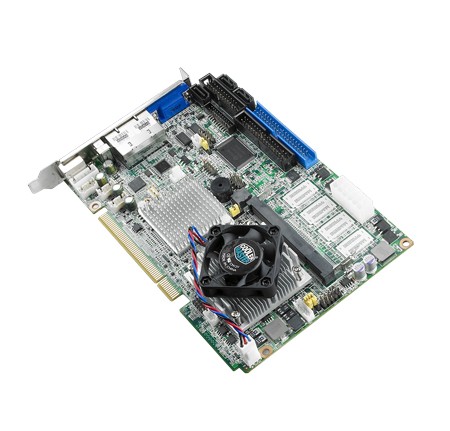

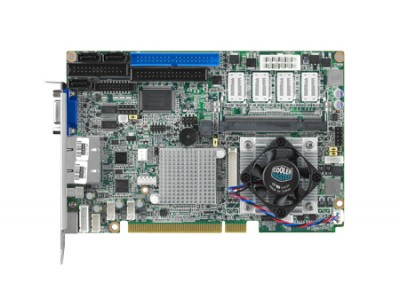

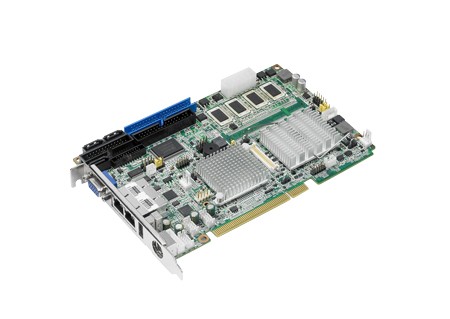

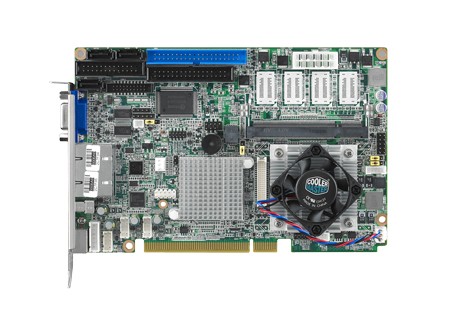

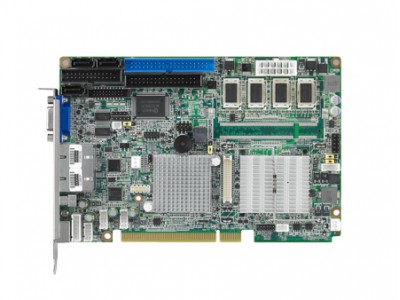

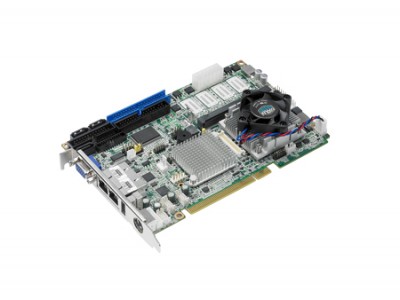

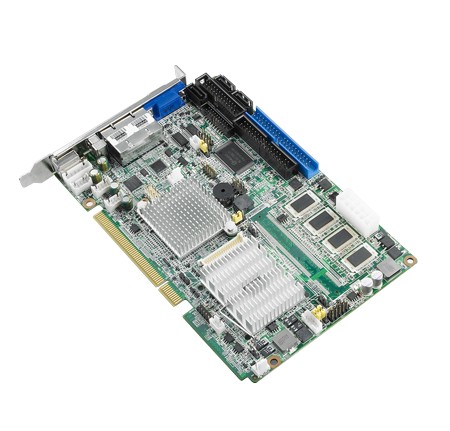

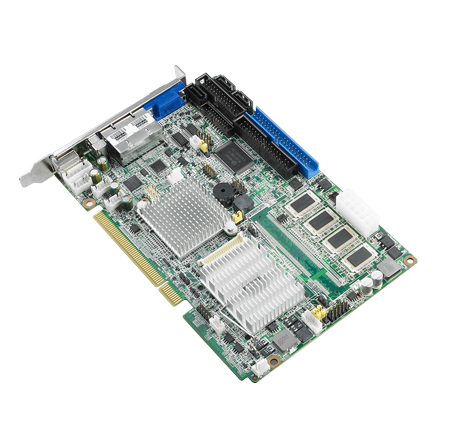

Intel Atom N450/D510, PCI Half-Sized SBC with Onboard DDR2/VGA/LVDS/Dual GbE/SATA/COM (PCI-7031N-S6A1E)
by Advantech
•Part #: PCI-7031N-S6A1E
View Detailed Description
$332.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Intel® Atom™ N450/D510 PCI Half-size SBC with Onboard DDR2/VGA/LVDS/Dual GbE/SATA/COM
- Ultra low power, fan-less N450 CPU and 1 GB on-board DDR2 667 memory (Only for N SKU)
- Dual core high performance D510 CPU and maximum 2 GB DDR2 800 memory (Only for D SKU)
- VGA/LVDS dual video outputs
- Optional module for 4 x RS-485 w/ auto-flow control
- Supports embedded software APIs and Utilities
| Certification | EMC | CE, FCC |
| Display | Controller | Intel Embedded Gen3.5+ GFX Core technology Integrated |
| Graphic Memory | Share with system memory up to 224 MB | |
| Multiple Display | Dual | |
| Display Interface | VGA: Up to 1400 x 1050 LVDS: 18 bit, Up to 1366 x 768/ 1280 x 800 | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -40~ 85° C and 60° C @ 95% RH Non-Condensing | |
| Ethernet | Controller | LAN1: Intel 82579V LAN2: Intel 82583V |
| Speed | 10/100/1000 Mbps | |
| Connector | 2 x RJ45 | |
| Expansion Interface | PCI | 1 |
| Form Factor | Form Factor | PCI half-size |
| I/O | COM Port | 2 (2 x RS232) |
| Compact Flash | 1 x Type I/II Socket | |
| Floppy | 1 | |
| GPIO | - | |
| IDE | 1 | |
| LPT | 1 | |
| PS/2 Keyboard/Mouse | 1 | |
| SATA | 3 x SATA II | |
| System Fan | - | |
| USB2.0 | 6 | |
| Management Solution | Software | SUSIAccess 2.0 |
| Memory | Technology | DDR2 667 MHz |
| Capacity | Up to 2 GB (2 GB per DIMM) | |
| ECC Support | - | |
| Socket | - | |
| Onboard Memory | 1 GB | |
| Physical Characteristics | Dimensions (LxW) | 185 x 122 mm (7.3" x 4.8") |
| Power Requirement | Voltage | +12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V/ Total |
| Current | 0.31 A/2.19 A/0 A/0.2 A/0 A/0 A/ 14.87 W | |
| Processor System | CPU | Intel Atom N450 |
| CPU TDP | Up to 5.5 W | |
| Frequency | Up to 1.66 GHz | |
| Core Number | 1 | |
| L2 Cache | 512 KB | |
| BIOS | AMI 16 MBit | |
| Chipset | Intel ICH8M | |
| Integrated Graphics | Yes | |
| FSB | - | |
| Rear I/O Interface | USB2.0 | 1 |
| PS/2 | 1 (for mouse and keyboard, a Y cable is included in the package) | |
| Ethernet | 2 | |
| VGA | 1 | |
| WatchDog Timer | Output | System Reset |
| Interval | Programmable 1~255 sec |
