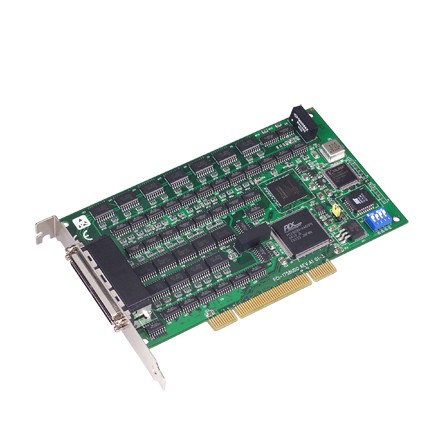

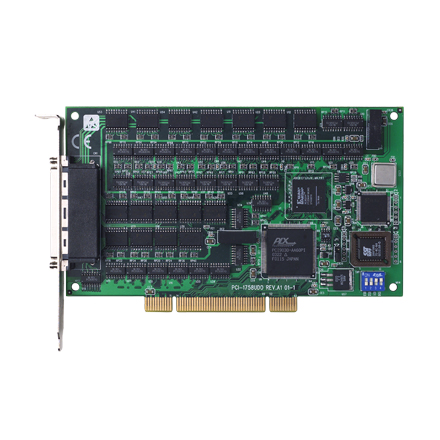

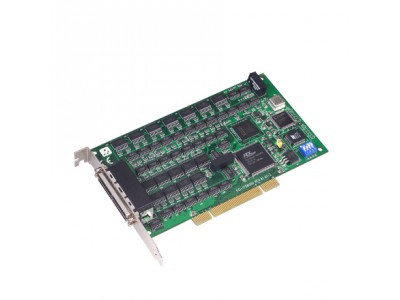

128-Channel Isolated Digital Output Universal PCI Card (PCI-1758UDO-AE)
by Advantech
•Part #: PCI-1758UDO-AE
View Detailed Description
$665.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
128-ch Isolated Digital Output Universal PCI Card
- 128 isolated digital output channels (64 for PCI-1758UDIO)
- High-voltage isolation on output channels (2,500 VDC)
- Wide output range (5 ~ 40 VDC)
- High-sink current for isolated output channels (90 mA max./Channel)
- Digital output value retained after hot system resets
- Programmable Power-Up States
- Watchdog timer
- Wide input range (5 ~ 25 VDC)
- High ESD protection (2,000 VDC)
| General | Power Consumption | Typical: 5 V @ 1.2 A, Max.: 5 V @ 1.8 A |
| I/O Connectors | MINI-SCSI HDRA-E100 Female | |
| Operating Temperature | 0 ~ 60°C (32 ~ 140°F) | |
| Bus | PCI | |
| Dimensions | 175 x 100 mm (6.9" x 3.9") | |
| OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
| Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt | |
| Isolated Digital I/O | Output Channels | 128 |
| Output Ranges | 5 ~ 40 VDC |
