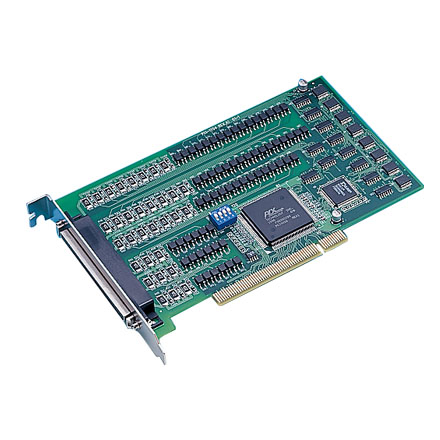

CIRCUIT BOARD, 64ch Isolated Digital Input Card (PCI-1754-BE)
by Advantech
•Part #: PCI-1754-BE
View Detailed Description
$275.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
64-ch Isolated Digital Input PCI Card
- 64 isolated digital input channels
- Either ± voltage input for DI by group
- High-voltage isolation on input channels (2,500 VDC)
- High over-voltage protection (70 VDC)
- Wide input range (10 ~ 50 VDC)
- 2,000 VDC ESD protection
- Interrupt handling capability
- High-density 100-pin SCSI connector
| General | Power Consumption | Typical: 5 V @ 340 mA, Max.: 5 V @ 450mA |
| I/O Connectors | 100-pin SCSI female | |
| Operating Temperature | 0 ~ 60°C (32 ~ 140°F) | |
| Bus | PCI | |
| Dimensions | 175 x 100 mm (6.9" x 3.9") | |
| OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
| Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt | |
| Isolated Digital I/O | Input Channels | 64 |
| Input Range | 10 ~ 50 VDC |
