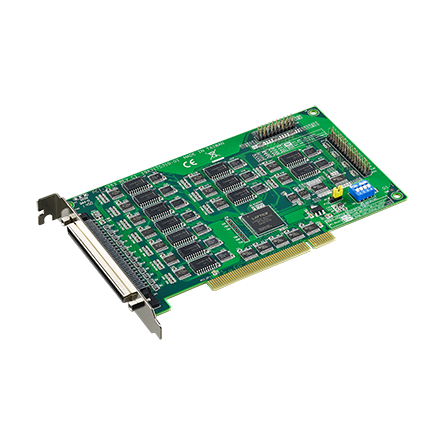

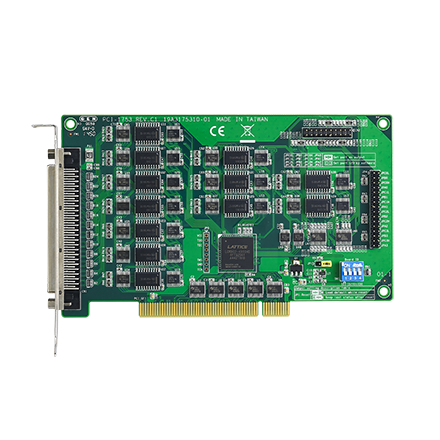

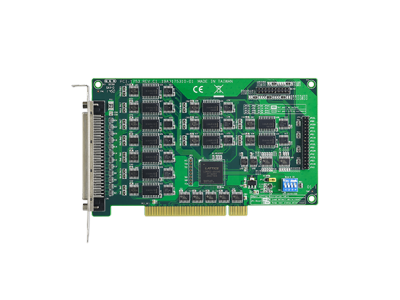

CIRCUIT BOARD, 96ch TTL Digital I/O Card (PCI-1753-CE)
by Advantech
•Part #: PCI-1753-CE
View Detailed Description
$230.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
PCI-1753 is a 96-bit digital I/O card for the PCI bus, which can be extended to 192 digital I/O channels by connecting its extension board - PCI-1753E. The card emulates mode 0 of the 8255 PPI chip, but the buffered circuits offer a higher driving capability than the 8255. The 96 I/O lines are divided into twelve 8-bit I/O ports: A0, B0, C0, A1, B1, C1, A2, B2,C2, A3, B3 and C3. You can configure each port as input or output via software.
- Up to 192 (96 + 96) TTL digital I/O lines
- Emulates mode 0 of 8255 PPI
- Buffered circuits for higher driving capacity than 8255
- Multiple-source interrupt handling
- Interrupt output pin for simultaneously triggering external devices with the interrupt
- Output status read-back
- “Pattern match” and “Change of state” interrupt functions for critical I/O monitoring
- Keeps I/O setting and digital output values when hot system reset
General | Power Consumption | Max.: 5 V @ 2.7 A |
I/O Connectors | 100-pin SCSI female | |
Operating Temperature | 0 ~ 60°C (32 ~ 140° F) | |
Bus | PCI | |
Dimensions | 175 x 100 mm (6.9" x 3.9” ) | |
OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt | |
TTL DI/O | Input Channels | 96 (shared) |
Output Channels | 96 (shared) |
