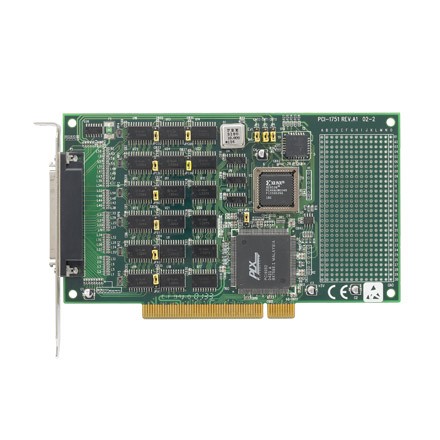

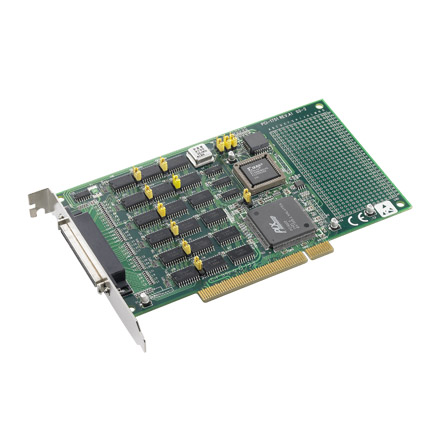

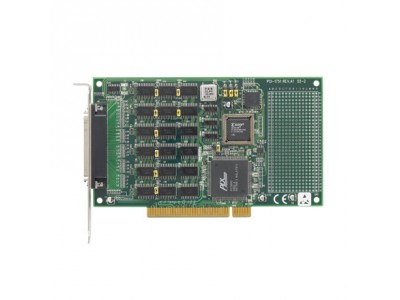

CIRCUIT BOARD, 48-Bit DI/O Card For PCIBus (PCI-1751-BE)
by Advantech
•Part #: PCI-1751-BE
View Detailed Description
$170.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
PCI-1751 is a 48-bit digital I/O card for the PCI bus. Its 48 bits are divided into six 8-bit I/O ports and users can configure each port as input or output via software. PCI-1751 also provides one event counter and two 16-bit timers, which can be cascaded to become a 32-bit timer.
- 48 TTL digital I/O lines
- Emulates mode 0 of 8255 PPI
- Buffered circuits for higher driving capacity than the 8255
- Interrupt handling capability
- Timer/Counter interrupt capability
- Supports both dry and wet contact
- Keeps the I/O port setting and DO state after system reset
- BoardID switch
| General | Power Consumption | Max.: 5 V @ 1 A |
| I/O Connectors | 1 x 68-pin SCSI female connector | |
| Operating Temperature | 0 ~ 60°C (32 ~ 140° F) | |
| Bus | PCI | |
| Dimensions | 175 x 100 mm (6.9" x 3.9” ) | |
| OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
| Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt | |
| Timer/Counter | Resolution | 16 bis |
| Channels | 3 | |
| Max. Input Frequency | 10 MHz | |
| TTL DI/O | Input Channels | 48 (shared) |
| Output Channels | 48 (shared) |
