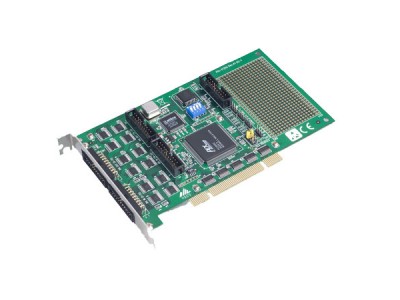

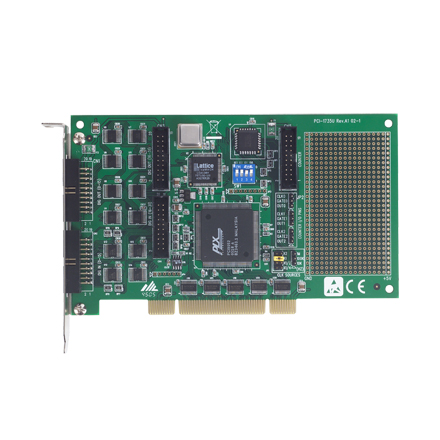

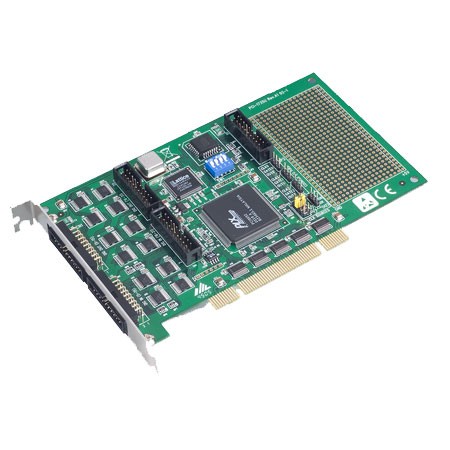

64-Channel TTL Digital I/O Card with Counter Universal PCI Card (PCI-1735U-AE)
by Advantech
•Part #: PCI-1735U-AE
View Detailed Description
$220.00
The PCI-1735U digital I/O and counter card is PC-compatible add-on card with 32 digital input channels, 32 digital output channels and three programmable counter/timer channels. Their digital I/O channels are TTL-compatible and use 74LS244 drive/buffer circuits to provide high output driving capacity. These buffered circuits also require lower input loading current than regular TTL circuits. The cards' 8254 programmable counter/timer provides three flexible 16-bit counter/timer channels. You can generate waves and pulses by programming the 8254. Jumper settings determine the clock crystal frequency. The card also includes a breadboard area perfect for customized circuits.
- ISA-Compatible with PCL-720+
- 32 TTL-level digital input channels
- 32 TTL-level digital output channels
- High-output driving capacity
- Low-input loading
- 3 programmable counter/timer channels
- User configurable clock source
- Breadboard area for custom circuits
| General | Power Consumption | Max.: 5 V @ 365 mA |
| I/O Connectors | 20-pin insulation displacement connectors | |
| Operating Temperature | 0 ~ 60°C (32 ~ 140° F) | |
| Bus | PCI | |
| Dimensions | 175 x 100 mm (6.9" x 3.9” ) | |
| OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
| Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt | |
| Timer/Counter | Resolution | 16 bits |
| Channels | 3 | |
| Max. Input Frequency | 500 kHz | |
| TTL DI/O | Input Channels | 32 |
| Output Channels | 32 |
