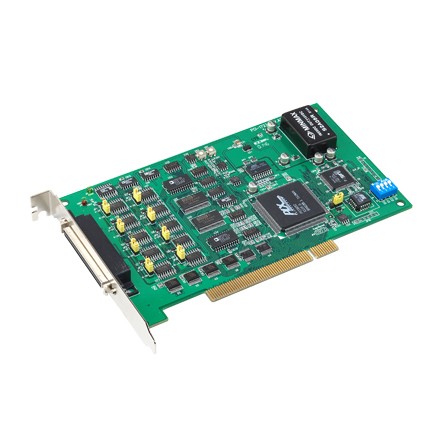

8-Channel Synchronized Analog Output Universal PCI Card, 16bit (PCI-1723-AE)
by Advantech
•Part #: PCI-1723-AE
View Detailed Description
$595.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
PCI-1723 is a non-isolated multiple channel analog output card for the PCI bus, and each analog output channel is equipped with a 16-bit, double-buffered DAC. It also features an auto-calibration function and a BoardID. switch. The PCI-1723 is an ideal solution for industrial applications where multiple analog output channels are required.
- Auto calibration function
- A 16-bit DAC is equipped for each analog output channel
- Synchronized output function
- Output values retained after system hot reset
- 2-port (16-channel) user-defined digital input/output
- BoardID™ switch
| Analog Output | Channels | 8 |
| Resolution(Bits) | 16 | |
| Output Ranges | -10 ~ 10, 0 ~ 20 mA, 4 ~ 20 mA | |
| Update Rate(kS/s) | Static | |
| General | Bus | PCI |
| Operating Temperature | 0 ~ 60°C (32 ~ 140° F) | |
| Dimensions | 175 x 100 mm (6.9" x 3.9") | |
| Power Consumption | Typical: 5 V @ 850 mA; Max.: 5 V @ 1 A | |
| OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
| Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt | |
| TTL DI/O | Input Channels | 16 (shared) |
| Output Channels | 16 (shared) |
