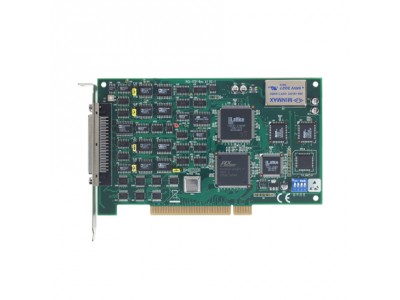

4-Channel High-speed Analog Output Universal PCI Card, 12bit (PCI-1721-AE)
by Advantech
•Part #: PCI-1721-AE
View Detailed Description
$790.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.

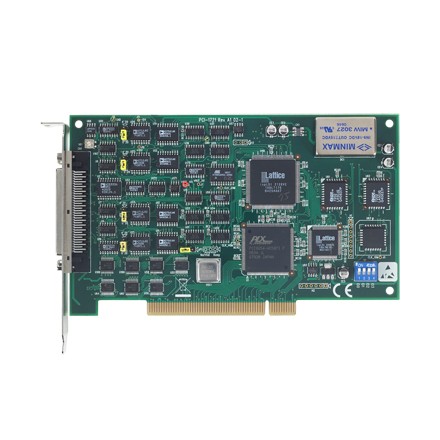

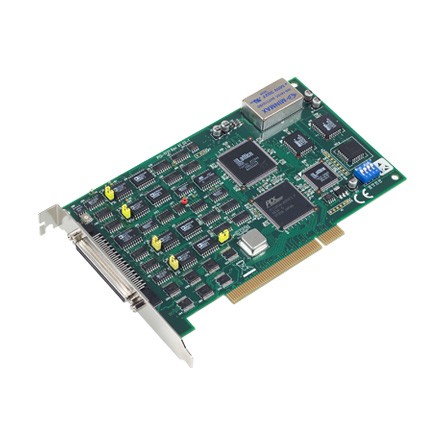

PCI-1721 is an advanced high-speed analog output card for the PCI bus, and each of analog output channels are equipped with a 12-bit, double-buffered DAC. It features many powerful and unique functions, like a waveform output function with 10 MHz maximum update rate, auto-calibration and a BoardID switch. PCI-1721 is an ideal solution for industrial applications where high-speed continuous analog output or real-time waveform output functions are required.
- 10 MHz maximum digital update rate
- PCI-bus mastering for data transfer
- Auto calibration function
- Four analog output channels with 1024 samples FIFO buffer
- A 12-bit DAC is equipped for each of analog output channels
- Real-time waveform output function with internal/external pacer
- Synchronized output function
- Flexible output types and range settings
- Keeps the output settings and values after system hot reset
- 16-ch DI/O and one 10 MHz 16-bit resolution counter
- BoardID™ switch
| Analog Output | Channels | 4 |
| Resolution(Bits) | 12 | |
| Output Ranges | 0 ~5, 0 ~ 10, ±5, ±10, 0 ~ 20 mA, 4 ~ 20mA | |
| Update Rate(kS/s) | 10M | |
| General | Bus | PCI |
| Operating Temperature | 0 ~ 60°C (32 ~ 140° F) | |
| Dimensions | 175 x 100 mm (6.9" x 3.9") | |
| Power Consumption | Typical: 5 V @ 850 mA; Max.: 5 V @ 1 A | |
| OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
| Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt | |
| Timer/Counter | Resolution | 16 bits |
| Max. Input Frequency | 10 MHz | |
| Channels | 1 | |
| TTL DI/O | Input Channels | 16 (shared) |
| Output Channels | 16 (shared) |
