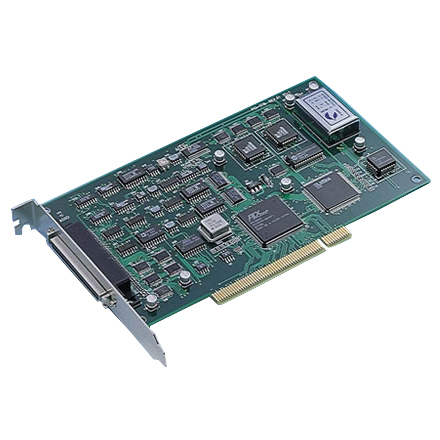

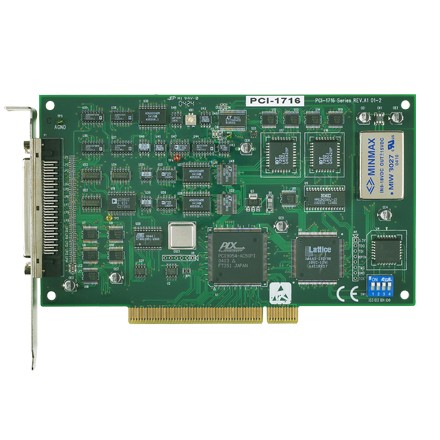

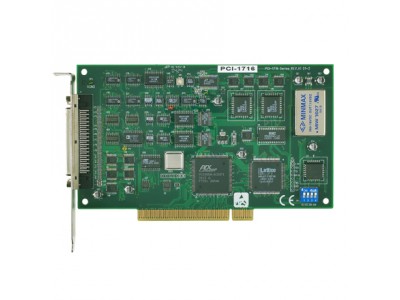

16-Channel High-resolution Multifunction PCI Card without Analog Output, 250 kS/s,16-bit (PCI-1716L-AE)
by Advantech
•Part #: PCI-1716L-AE
View Detailed Description
$403.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
PCI-1716 and PCI-1716L are powerful high-resolution multifunction cards for the PCI bus. They feature a 250 kS/s 16-bit A/D converter, and an onboard 1K sample FIFO buffer for A/D. The cards can also have up to sixteen single-ended or eight differential A/D input channels or a combination of these; two 16-bit D/A output channels, 16 digital input/output channels, and one 10 MHz 16-bit counter channel. PCI-1716 and PCI-1716L provide specific functions for different user requirements.
- 16 single-ended or 8 differential or a combination of analog inputs
- 16-bit A/D converter, with up to 250 kHz sampling rate
- Cost-effective version omits analog outputs
- Onboard FIFO memory (1024 samples)
- Auto-calibration
- PCI-Bus mastering data transfer
- 16 digital inputs and 16 digital outputs
- Onboard programmable counter
- BoardID™ switch
| Analog Input | Sampling Rates(S/s) | 250 k |
| Resolution (Bits) | 16 | |
| Channels | 16 | |
| Unipolar Input (V) | 0~10, 0~5, 0~0.25, 0~1.25 | |
| Bipolar Inputs (V) | ±10, 5, 2.5, 1.25, 0.625 | |
| Input Impedance | 100MO | |
| Overvoltage Protection | 30 Vp-p | |
| Type | Scan | |
| General | Power Consumption | Typical: 5 V @ 850 mA; Max.: 5 V @ 1 A |
| I/O Connectors | 1 x 68-pin SCSI female connector | |
| Operating Temperature | 0 ~ 60°C (32 ~ 140° F) | |
| Bus | PCI | |
| Dimensions | 175 x 100 mm (6.9" x 3.9") | |
| OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
| Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt | |
| Timer/Counter | Resolution | 16 bits |
| Max. Input Frequency | 10 MHz | |
| Channels | 1 | |
| TTL DI/O | Input Channels | 16 |
| Output Channels | 16 |
