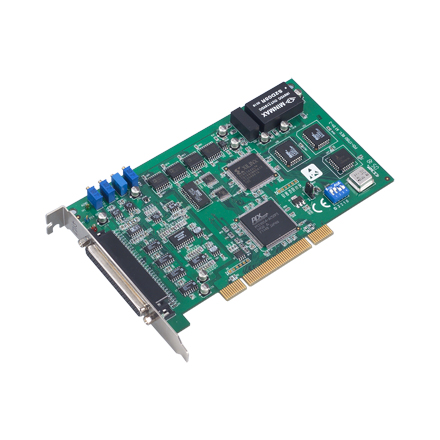

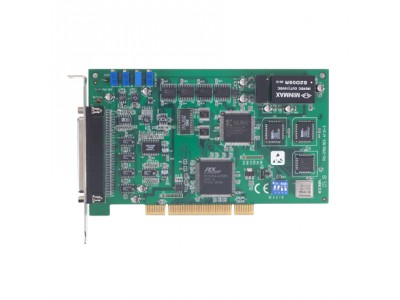

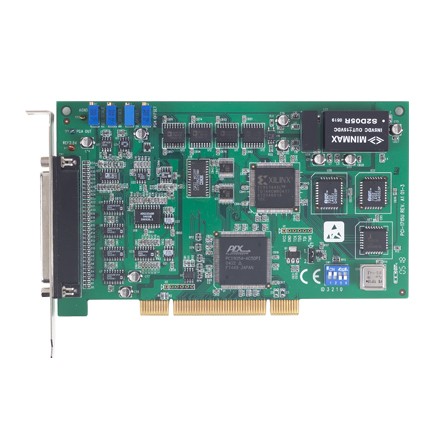

32-Channel Isolated Analog Input Universal PCI Card, 500 kS/s, 12-bit (PCI-1715U-AE)
by Advantech
•Part #: PCI-1715U-AE
View Detailed Description
$645.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The PCI-1715U is an isolated high-speed analog input card for the PCI bus. It provides 32 analog input channels with a sampling rate up to 500 kS/s, 12-bit resolution and isolation protection of 2500 VDC.
- 2500 VDC isolation protection
- 32 single-ended or 16 differential analog inputs, or a combination
- 12-bit resolution for A/D conversion
- Up to 500 kS/s sampling rate for A/D conversion
- Programmable gain for each input channel
- Onboard 1024 samples FIFO buffer
- S/W, internal or external pacer sampling modes supported
- Universal PCI Bus
- BoardID™ switch
| Analog Input | Sampling Rates(S/s) | 500k |
| Resolution (Bits) | 12 | |
| Unipolar Input (V) | 0 ~ 10, 0 ~ 5, 0 ~ 2.5, 0 ~ 1.25 | |
| Bipolar Inputs (V) | ±10, 5, 2.5, 1.25, 0.625 | |
| Channels | 32 | |
| Input Impedance | 1GO | |
| Overvoltage Protection | 30 Vp-p | |
| Type | Scan | |
| General | Operating Temperature | 0 ~ 60°C (32 ~ 140° F) |
| Power Consumption | Typical: 5V @ 500 mA ; Max: 5V @ 700 mA | |
| I/O Connectors | 37-pin D-type female connector | |
| Bus | PCI | |
| Dimensions | 175 x 100 mm (6.9" x 3.9") | |
| OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
| Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt |
