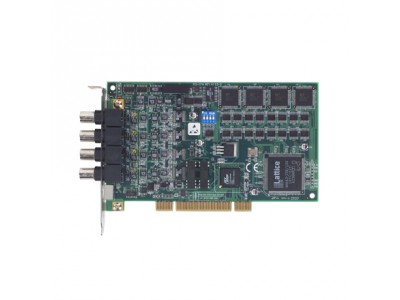

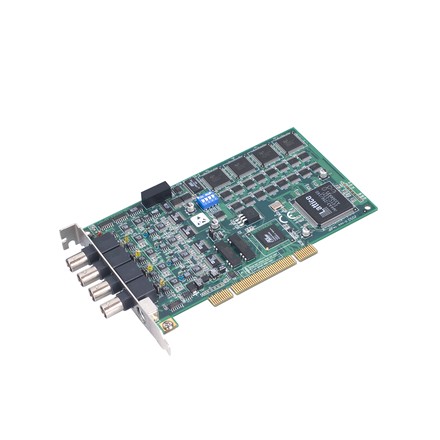

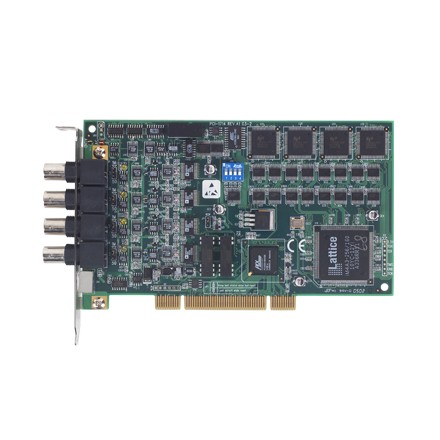

4-Channel Simultaneous Analog Input Universal PCI Card, 30 MS/s,12bit (PCI-1714U-BE)
by Advantech
•Part #: PCI-1714U-BE
View Detailed Description
$1,295.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
PCI-1714U/PCI-1714UL and PCIE-1744 are advanced high-performance data acquisition cards based on the PCI/PCIe bus. With a large FIFO of 32,768 for each channel, the maximum sampling rate of PCI-1714U/PCIE-1744 can get up to 30 MS/s, on each channel, with an emphasis on continuous, non-stop, high-speed, streaming data of samples to host memory. The low-cost PCI-1714UL offers 10 MS/s on each channel at a stable rate, and has also been equipped with a universal PCI interface.
- 4 single-ended analog input channels
- 12-bit A/D converter, with up to 30 MHz sampling rate
- Programmable gain
- Onboard FIFO memory: 32,768 samples
- 4 A/D converters simultaneously sampling
- Multiple A/D triggering modes
- Programmable pacer/counter
- BoardID™ switch
- Universal PCI Bus (support 3.3 V or 5 V PCI bus signal)
| Analog Input | Sampling Rates(S/s) | 30M |
| Resolution (Bits) | 12 | |
| Bipolar Inputs (V) | ±5, ±2.5, ±1, ±0.5 | |
| Channels | 4 | |
| Input Impedance | 50/10M/High Z selectble | |
| Overvoltage Protection | 30 Vp-p | |
| Type | Simul. Sample | |
| General | Operating Temperature | 0~70° C (32~158° F) |
| Power Consumption | Typical: 5V @ 850 mA ; 12V @ 600 mA; Max.: 5V @ 1 A; 12V @ 700mA | |
| I/O Connectors | 4 x BNC, 1 x PS/2 | |
| Bus | PCI | |
| Dimensions | 175 x 100 mm (6.9" x 3.9") | |
| OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
| Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt |
