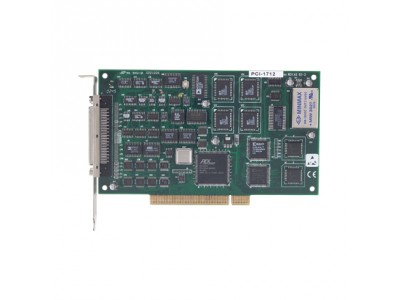

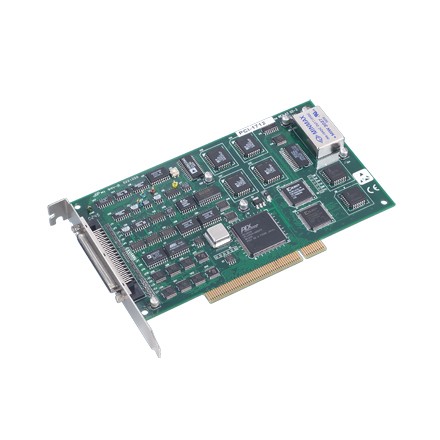

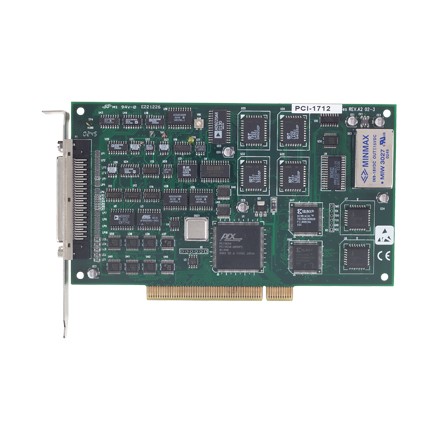

16-Channel High-speed Universal PCI Multifunction Card without Analog Output, 1 MS/s, 12bit (PCI-1712L-AE)
by Advantech
•Part #: PCI-1712L-AE
View Detailed Description
$795.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
PCI-1712 and PCI-1712L are powerful high-speed multifunction cards for the PCI bus. They feature a 1 MHz 12-bit A/D converter, an onboard FIFO buffer (storing up to 1024 samples for A/D, and up to 32 K samples for D/A conversion). The PCI-1712 cards provide a total of up to 16 single-ended or 8 differential A/D input channels or a mixed combination, two 12-bit D/A output channels, 16 digital input/output channels, and three 10 MHz 16-bit multifunction counter channels. PCI-1712L is a low-cost version without analog output.
- 16 single-ended or 8 differential or a combination of analog inputs
- 12-bit A/D converter, with up to 1 MHz sampling rate
- Programmable gain
- Automatic channel/gain/SD*/BU* scanning
- Onboard FIFO memory (AI:1024 samples AO:32768 samples)
- Two 12-bit analog output channels with continuous waveform output function (PCI-1712 only)
| Analog Input | Sampling Rates(S/s) | 1 M |
| Resolution (Bits) | 12 | |
| Channels | 16 | |
| Unipolar Input (V) | 0~10, 0~5, 0~0.25, 0~1.25 | |
| Bipolar Inputs (V) | ±10, 5, 2.5, 1.25, 0.625 | |
| Input Impedance | 100MO | |
| Trigger Mode | Start trigger, Delay to Start trigger, Stop trigger, Delay to Stop trigger | |
| Overvoltage Protection | 30 Vp-p | |
| Type | Scan | |
| General | Power Consumption | Typical: 5 V @ 850 mA; Max.: 5 V @ 1 A |
| I/O Connectors | 1 x 68-pin SCSI female connector | |
| Operating Temperature | 0 ~ 60°C (32 ~ 140° F) | |
| Bus | PCI | |
| Dimensions | 175 x 100 mm (6.9" x 3.9") | |
| Triggering | 8 bits Analog / Digital | |
| OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
| Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt | |
| Timer/Counter | Resolution | 16 bits |
| Max. Input Frequency | 10 MHz | |
| Channels | 3 | |
| TTL DI/O | Input Channels | 16 (shared) |
| Output Channels | 16 (shared) |
