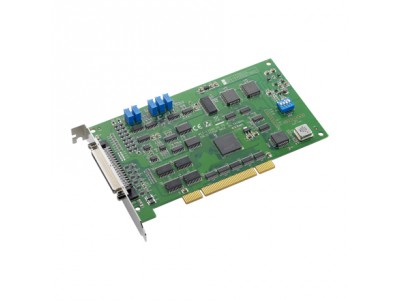

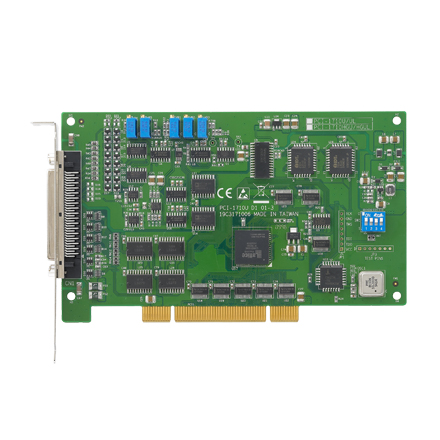

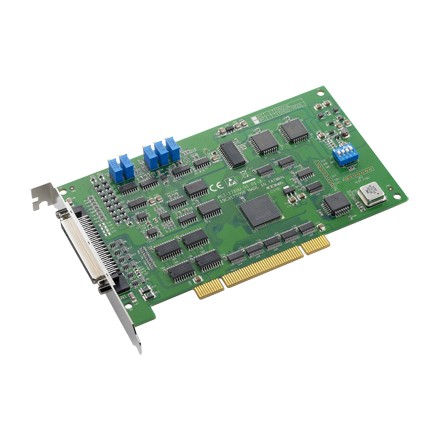

16-Channel Universal PCI Multifunction Card, 100 kS/s, 12-bit (PCI-1710UL-DE)
by Advantech
•Part #: PCI-1710UL-DE
View Detailed Description
$455.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The PCI-1710L is a multifunction DAS card for the PCI bus. Its advanced circuit design provides higher quality and more functions, including the five most desired measurement and control functions: 12-bit A/D conversion, D/A conversion, digital input, and counter/timer.
- 16 single-ended, 8 differential or a combination of analog inputs
- 12-bit A/D converter, with up to 100 kHz sampling rate
- Programmable gain for each input channel
- Free combination of single-ended and differential inputs
- On-board 4 K samples FIFO buffer
- Two 12-bit analog output channels
- 16 digital inputs and 16 digital outputs
- Programmable pacer/counter
| Analog Input | Sampling Rates(S/s) | 100 k |
| Resolution (Bits) | 12 | |
| Channels | 16 | |
| Unipolar Input (V) | 0~ 10, 0~1, 0~0.1, 0~0.01 | |
| Bipolar Inputs (V) | ±10, 5, 1, 0.5,0.1, 0.05, 0.01, 0.005 | |
| Input Impedance | 300MO | |
| Type | Scan | |
| General | Power Consumption | Typical: 5 V @ 850 mA; Max.: 5 V @ 1 A |
| I/O Connectors | 1 x 68-pin SCSI female connector | |
| Operating Temperature | 0 ~ 60°C (32 ~ 140° F) | |
| Bus | PCI | |
| Dimensions | 175 x 100 mm (6.9" x 3.9") | |
| OS Support | 32-bit/64-bit Windows 7/8/10, and Linux | |
| Programming Language | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt | |
| Timer/Counter | Resolution | 16 bits |
| Max. Input Frequency | 10 MHz | |
| Channels | 1 | |
| TTL DI/O | Input Channels | 16 |
| Output Channels | 16 |
