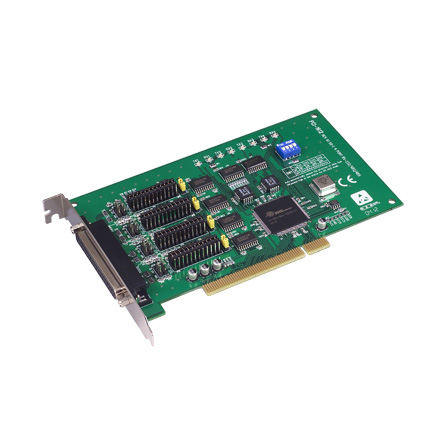

4 Port RS-232/422/485 PCI Serial Communication Card with Surge Protection (PCI-1612B-CE)
by Advantech
•Part #: PCI-1612B-CE
View Detailed Description
$230.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
- PCI bus 2.2 compliant
- Supports serial speed up to 921.6 kbps, and any baud rate setting
- 4-port RS-232/422/485
- OXuPC1954 UART with 128-byte FIFOs standard
- I/O address automatically assigned by PCI Plug & Play
- Interrupt status register for increased performance
- Universal PCI, supports 3.3 V or 5 V PCI bus signal
- 1,000 VDC surge protection
| Communications | RS-232 | V |
| RS-422 | V | |
| RS-485 | V | |
| Data Bits | 5, 6, 7, 8 | |
| Stop Bits | 1, 1.5, 2 | |
| Parity | None, Even, Odd, Mark and Space | |
| Data Signals | RS-422: Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, RS-485: Data+, Data- | |
| FIFO | 128 bytes | |
| Data Flow Control | RTS/CTS, Xon/Xoff | |
| IRQ | Assigned by Plug & Play | |
| Communication Controller | OXuPCI954 | |
| Speed | 50 bps ~ 921.6 kbps, any baud rate stting 230.4 kbps | |
| Display | Ports | 4 |
| Environment | Temperature (Operating) | -10 ~ 60° C (14 ~ 140° F) |
| Temperature (Storage) | -25 ~ 85°C (-13 ~ 185°F) | |
| Humidity (Operating) | 5 ~ 95 % RH, non-condensing | |
| General | Power Consumption | 180 mA @ +5 V |
| Bus | Universal PCI V2.2 | |
| Certifications | CE, FCC class A | |
| OS Support | 32-bit/64-bit Windows 2000/XP/Vista/7, Windows CE 5.0/6.0, Linux, and QNX | |
| Dimensions | 185 x 100 mm (7.3" x 3.9") | |
| Connector | 1 x Female DB37 | |
| Protection | Surge Protection | 1000 VDC |
| ESD Protection | 8KV (air), 4KV (contact) | |
| EFT Protection | 1 KV | |
| Regulatory Approvals | EMC | EN 55011: 2009 +A1: 2010, Group 1, Class A EN 55022: 2010, Class A EN 61000-6-4: 2007 EN 55024: 2010 EN 61000-6-2: 2005 IEC 61000-4-2: 2008 IEC 61000-4-3: 2006 +A1: 2007 +A2: 2010 IEC 61000-4-4: 2010 IEC 61000-4-6: 2008 IEC 61000-4-8: 2009 FCC 47 CFR Part 15 Subpart B (Class B) IC ICES-003 |
| Software | Bundled Software | ICOM Tools |
