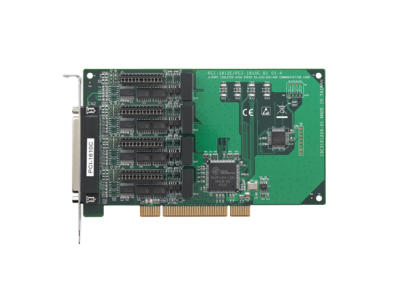

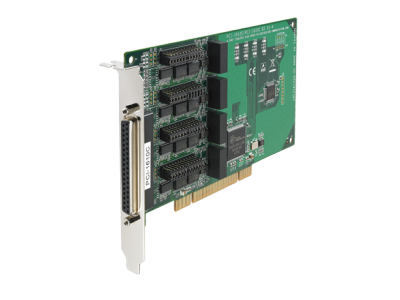

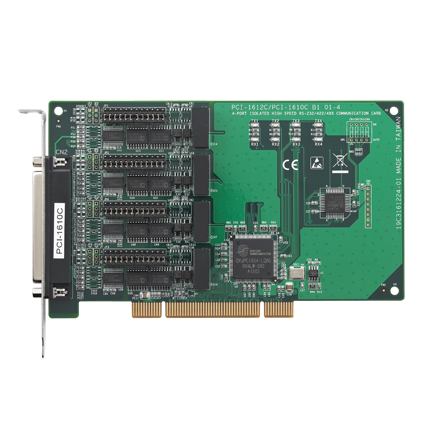

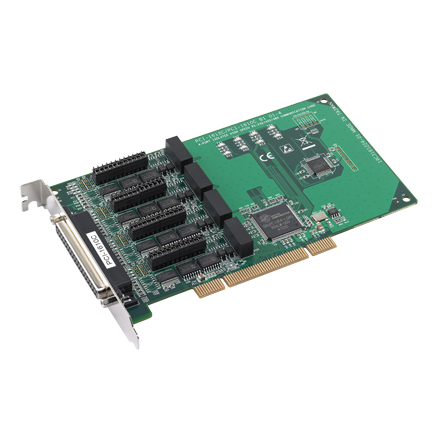

4-port RS-232 PCI Communication Card w/Isolation Protection (PCI-1610C-BE)
by Advantech
•Part #: PCI-1610C-BE
View Detailed Description
$400.00
The PCI-1610 is a four port RS-232, and PCI-1612 is a four port RS-232/422/485 PCI communication card that are compatible with the PCI 2.2 bus specification, and offer transmission speeds up to 921.6 kbps. They also support any baud rate setting, for example 500 kbps is acceptable. The PCI-1610 and PCI-1612 also come with high-performance OXuPCI954 UART with 128-byte FIFO to reduce CPU load. These components make your system more stable and reliable. Thus, the PCI-1610 and PCI-1612 are especially suitable for multitasking environments. Both the PCI-1610 and PCI-1612 have an universal PCI connector that is compatible with both the latest 3.3 V signaling systems and the traditional 5V signaling system. This gives high compatibility and allows usage in diverse systems. To further increase reliability, the cards can protect your system from abrupt high voltages up to 2,000 voltage thanks to EFT protection technology. PCI-1610C and PCI-1612C also provide 2,500 voltage optical isolation to protect your PC and equipment against damages from ground loops in harsh environments.
- PCI bus 2.2 compliant
- Supports serial speed up to 921.6 kbps, and any baud rate setting
- 4-port RS-232
- OXuPC1954 UART with 128-byte FIFOs standard
- I/O address automatically assigned by PCI Plug & Play
- Interrupt status register for increased performance
- Universal PCI, supports 3.3 V or 5 V PCI bus signal
- 1,000 VDC surge protection
- 2,500 VDC isolation protection
| Communications | RS-232 | V |
| Data Bits | 5, 6, 7, 8 | |
| Stop Bits | 1, 1.5, 2 | |
| Parity | None, Even, Odd, Mark and Space | |
| Data Signals | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND | |
| FIFO | 128 bytes | |
| Data Flow Control | RTS/CTS, Xon/Xoff | |
| IRQ | Assigned by Plug & Play | |
| Communication Controller | OXuPC1952 | |
| Speed | 50 bps ~ 921.6 kbps, any baud rate setting 230.4 kbps | |
| Display | Ports | 4 |
| Environment | Temperature (Operating) | -10 ~ 60° C (14 ~ 140° F) |
| Temperature (Storage) | -25 ~ 85°C (-13 ~ 185°F) | |
| Humidity (Operating) | 5 ~ 95 % RH, non-condensing | |
| General | Power Consumption | 180 mA @ +5 V |
| Bus | Universal PCI V2.2 | |
| Certifications | CE, FCC class A | |
| OS Support | 32-bit/64-bit Windows 2000/XP/Vista/7, Windows CE 5.0/6.0, Linux, and QNX | |
| Dimensions | 185 x 100 mm (7.3" x 3.9") | |
| Connector | 1 x Female DB37 | |
| Protection | Surge Protection | 1000 VDC |
| Isolation Protection | 2,500 VDC | |
| ESD Protection | 15KV | |
| EFT Protection | 2,500KV | |
| Regulatory Approvals | EMC | EN 55011: 2009 +A1: 2010, Group 1, Class A EN 55022: 2010, Class A EN 61000-6-4: 2007 EN 55024: 2010 EN 61000-6-2: 2005 IEC 61000-4-2: 2008 IEC 61000-4-3: 2006 +A1: 2007 +A2: 2010 IEC 61000-4-4: 2010 IEC 61000-4-6: 2008 IEC 61000-4-8: 209 FCC 47 CFR Part 15 Subpart B (Class B) IC ICES-003 |
| Software | Bundled Software | ICOM Tools |
